MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide 155
UG257 (v1.1) December 5, 2007 www.xilinx.com
Intel StrataFlash Parallel NOR Flash Memory and Micron DDR SDRAM R

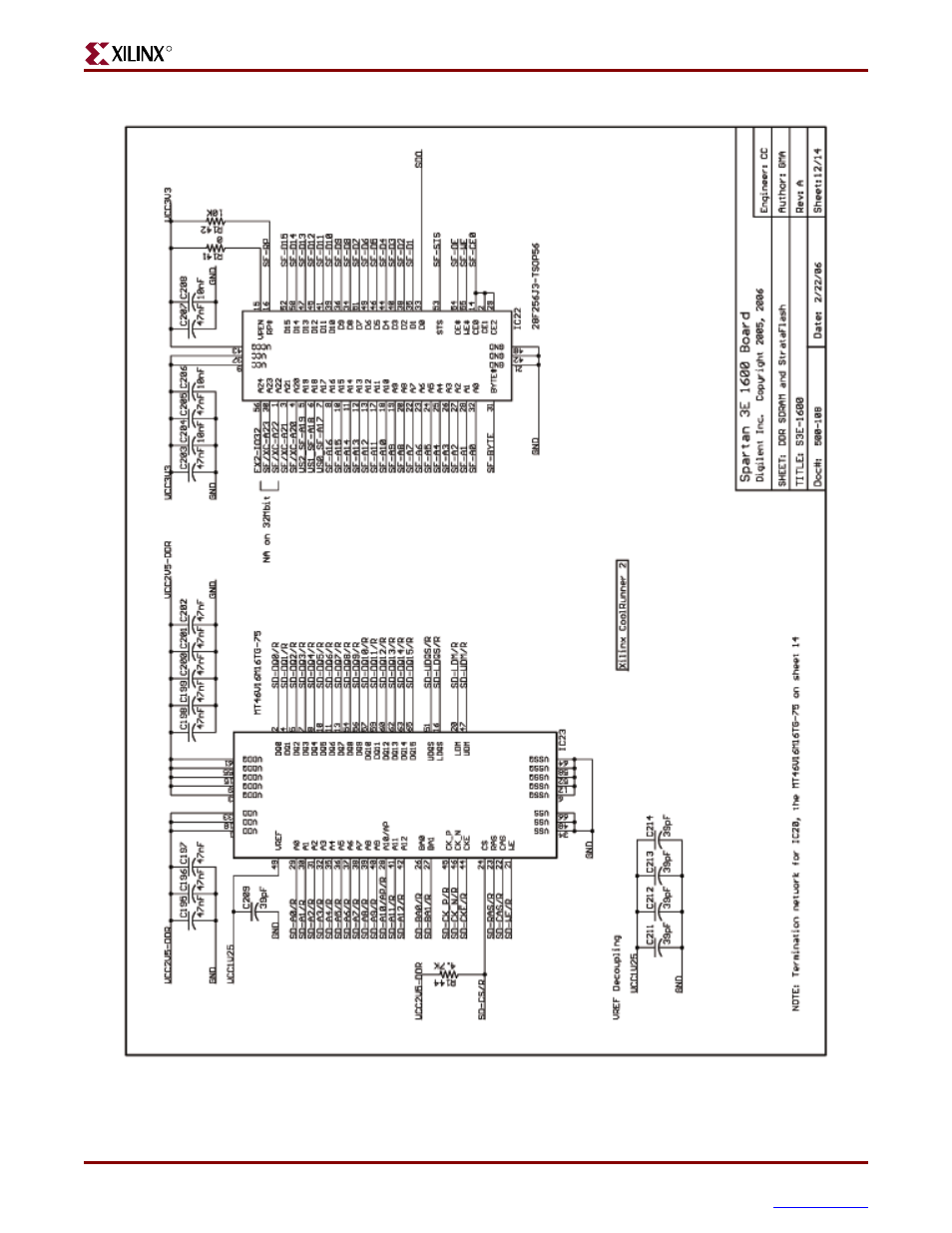

Figure 18-11: Schematic Sheet 12
UG257_A11_060606
