24

MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide

www.xilinx.com

UG257 (v1.1) December 5, 2007

Chapter 4:

FPGA Configuration Options

R

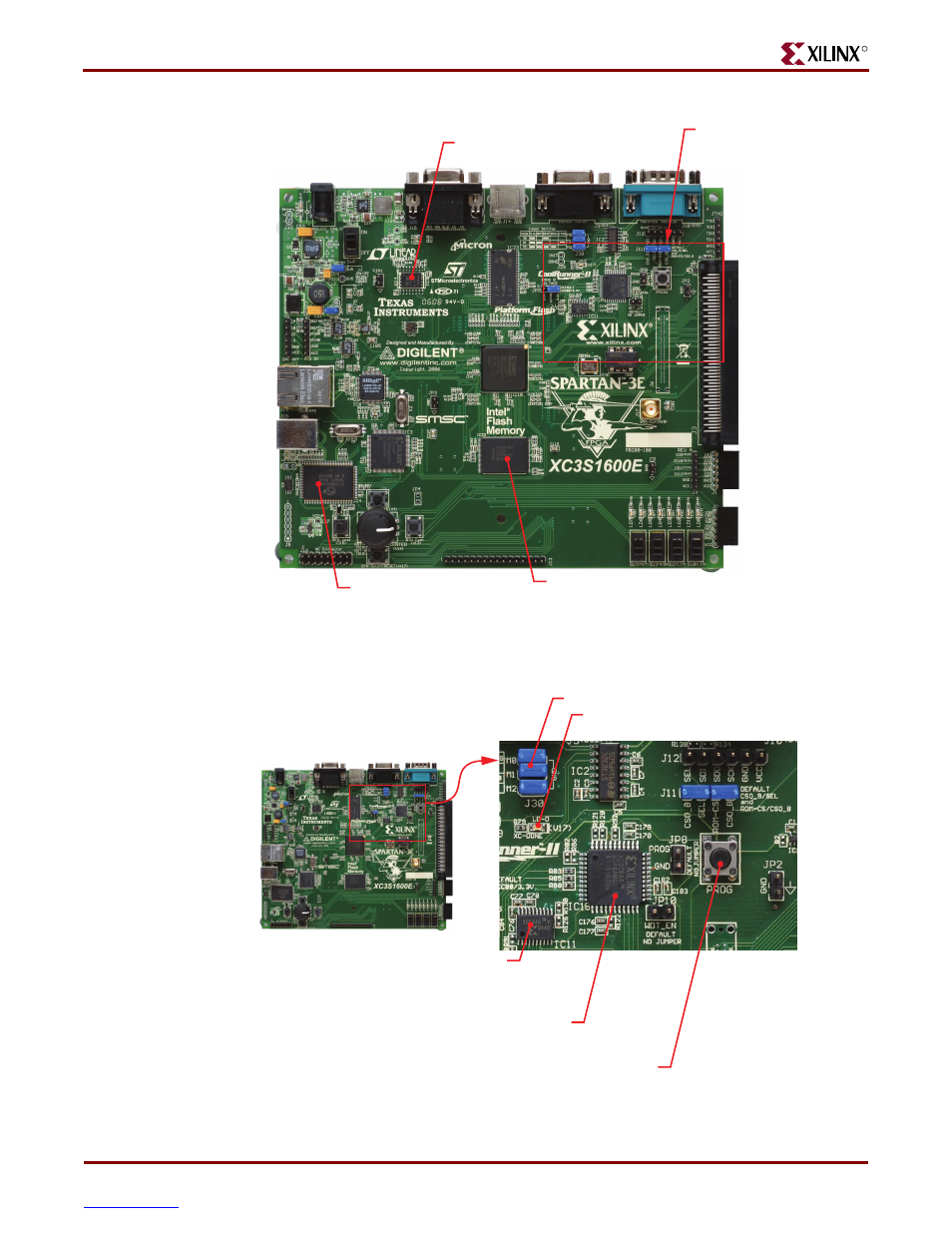

Figure 4-1:

MicroBlaze Development Kit Board FPGA Configuration Options

Figure 4-2:

Detailed Configuration Options

USB-based Download
and Debug Port
Uses standard USB cable

16 Mbit ST Micro SPI Serial Flash
Uses Peripheral Interface (SPI) Mode

Configuration Options
PROG_B button, Platform
Flash PROM, mode pins

128 Mbit Intel StrataFlash
Parallel NOR Flash Memory
Byte Peripheral Interface (BPI) mode

UG257_04_01_061306

4 Mbit Xilinx Platform Flash PROM

Configuration storage for Master Serial

mode (one XC04S on front and

one on the back of the board”

Configuration Mode Jumper Settings (Header J30)

DONE Pin LED
Lights up when FPGA successfully configured

Spartan-3E
Development Board

UG257_04_02_061306

PROG_B Push Button Switch

Press and release to restart configuration

64 Macrocell Xilinx XC2C64A CoolRunner CPLD

Controller upper address lines in BPI mode and

Platform Flash chip select (User programmable)
