Programming the FPGA, CPLD, or Platform Flash PROM via USB R
The PROM Formatter then prompts for the name(s) of the FPGA configuration bitstream
file. As shown in Figure 4-18 , click OK to start selecting files. Select an FPGA bitstream file
(*.bit). Choose No after selecting the last FPGA file. Finally, click OK to continue.
When PROM formatting is complete, the iMPACT software presents the present settings
by showing the PROM, the select FPGA bitstream(s), and the amount of PROM space
consumed by the bitstream. Figure 4-19 shows an example for a single XC3S500E FPGA
bitstream stored in an XCF04S Platform Flash PROM.

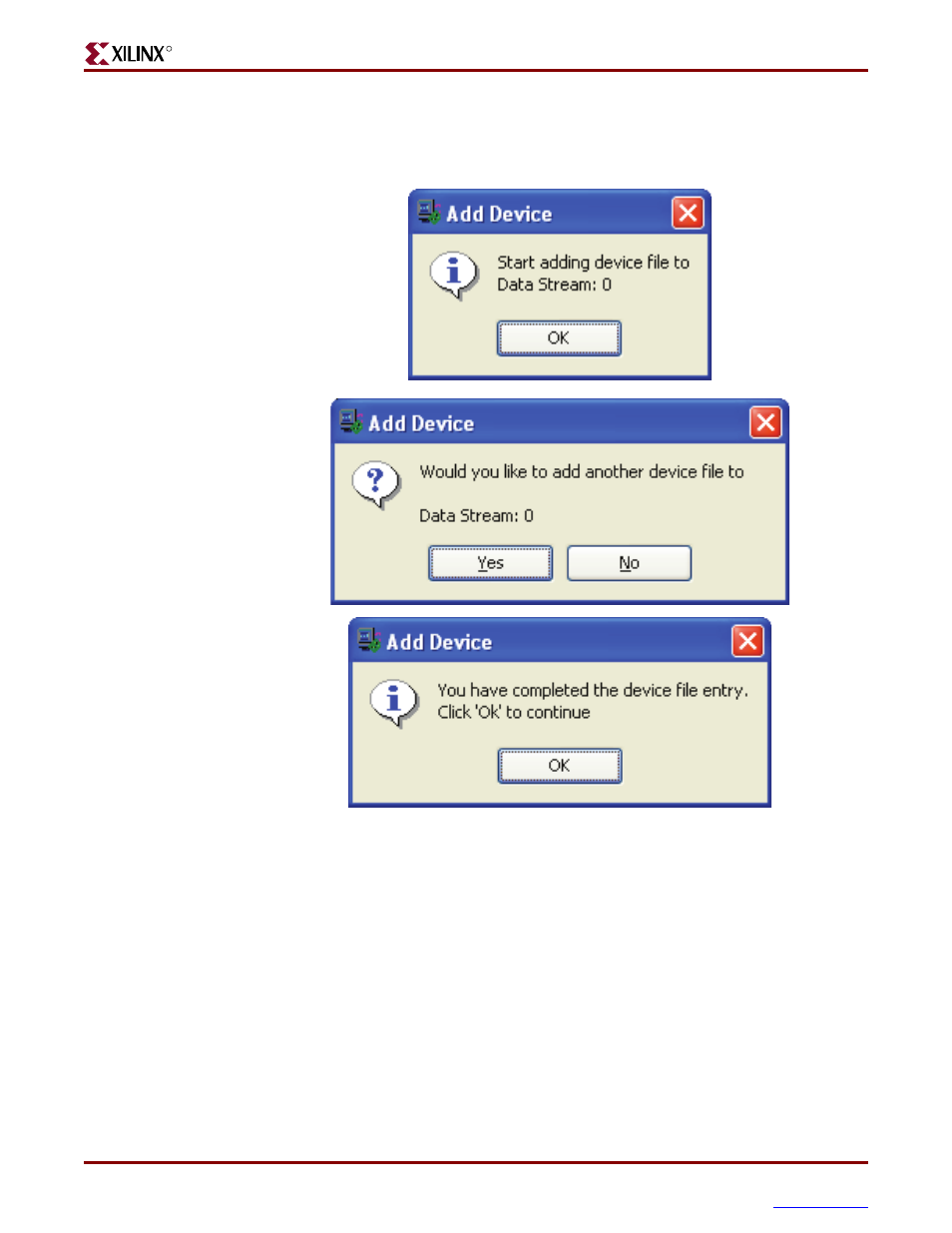

Figure 4-18: Enter FPGA Configuration Bitstream File(s)
UG257_4-18_060906
