MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide 95
UG257 (v1.1) December 5, 2007 www.xilinx.com
Configuring from SPI Flash R
The Spartan-3E Starter Kit board has a 16 Mbit SPI serial Flash PROM. Select 16M from the
drop list, as shown in Figure 12-9 . Click Next >.

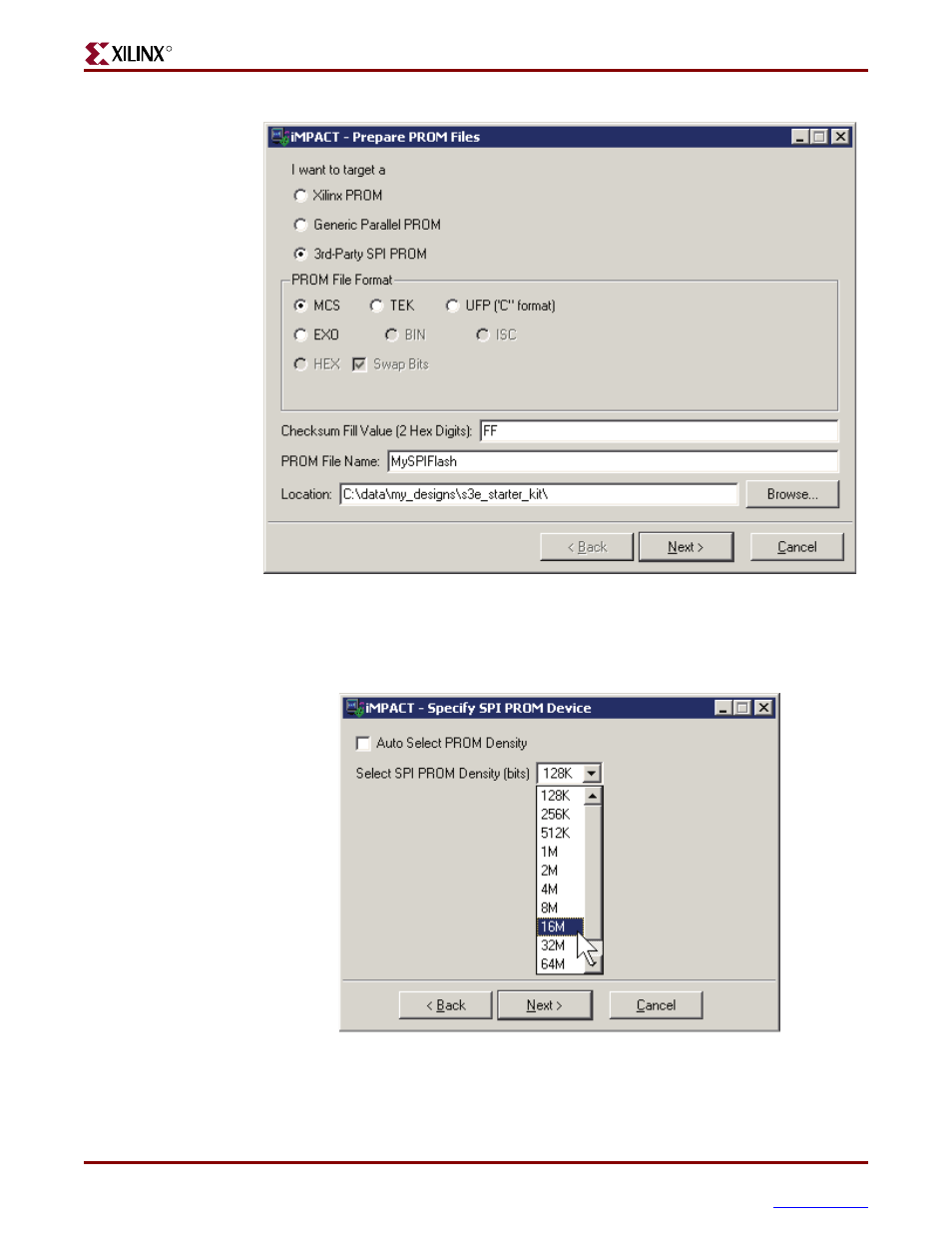

Figure 12-8: Choose the PROM Target Type, the, Data Format, and File Location
Figure 12-9: Choose 16M
UG257_12_08_060806
UG257_12_09_060806
