Chapter 7 LAN Setup
P-660HN-TxA User’s Guide
92
The following table describes the fields in this screen.
7.2.1 The Advanced LAN IP Setup Screen
Use this screen to edit your ZyXEL Device's RIP, multicast and Windows
Networking settings. Click the Advanced Setup button in the LAN IP screen. The
screen appears as shown.

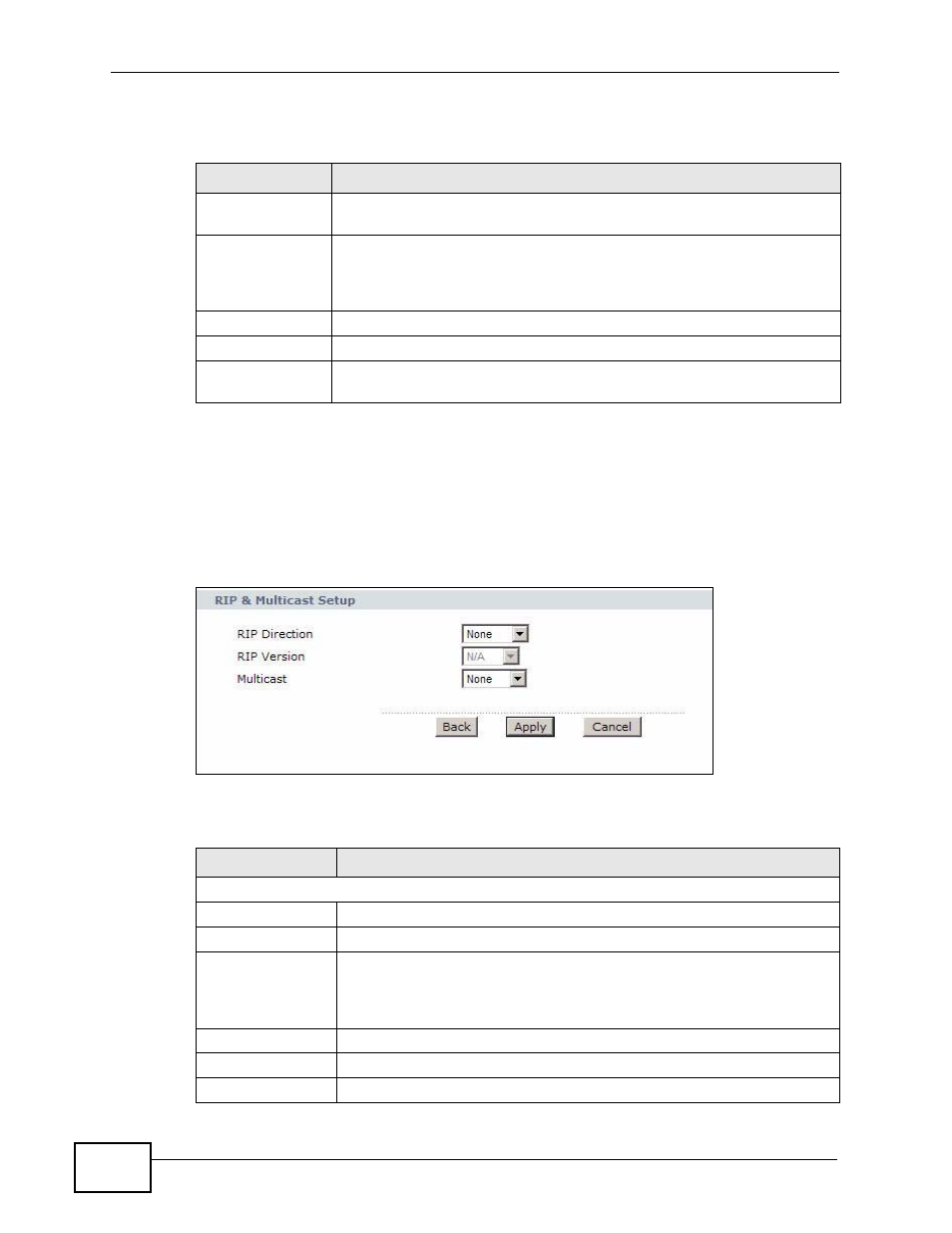

Figure 37 Network > LAN > IP: Advanced Setup
The following table describes the labels in this screen.
Table 21 Network > LAN > IP
LABEL DESCRIPTION
IP Address Enter the LAN IP address you want to assign to your ZyXEL Device in
dotted decimal notation, for example, 192.168.1.1 (factory default).
IP Subnet Mask Type the subnet mask of your network in dotted decimal notation, for
example 255.255.255.0 (factory default). Your ZyXEL Device
automatically computes the subnet mask based on the IP Address you
enter, so do not change this field unless you are instructed to do so.
Apply Click this to save your changes.
Cancel Click this to restore your previously saved settings.
Advanced Setup Click this to display the Advanced LAN Setup screen and edit more
details of your LAN setup.
Table 22 Network > LAN > IP: Advanced Setup
LABEL DESCRIPTION
RIP & Multicast Setup
RIP Direction
Select the RIP direction from None, Both, In Only and Out Only.
RIP Version Select the RIP version from RIP-1, RIP-2B and RIP-2M.
Multicast IGMP (Internet Group Multicast Protocol) is a network-layer protocol
used to establish membership in a multicast group. The ZyXEL Device
supports IGMP-v1, IGMP-v2 and IGMP-v3. Select None to disable
it.
Back Click this to return to the previous screen without saving.
Apply Click this to save your changes.
Cancel Click this to restore your previously saved settings.
