14.2.1 The QoS Settings Summary Screen
Use this screen to display a summary of rules and actions configured for the
ZyXEL Device. In the Advanced > QoS screen, click the QoS Settings
Summary button to open the following screen.

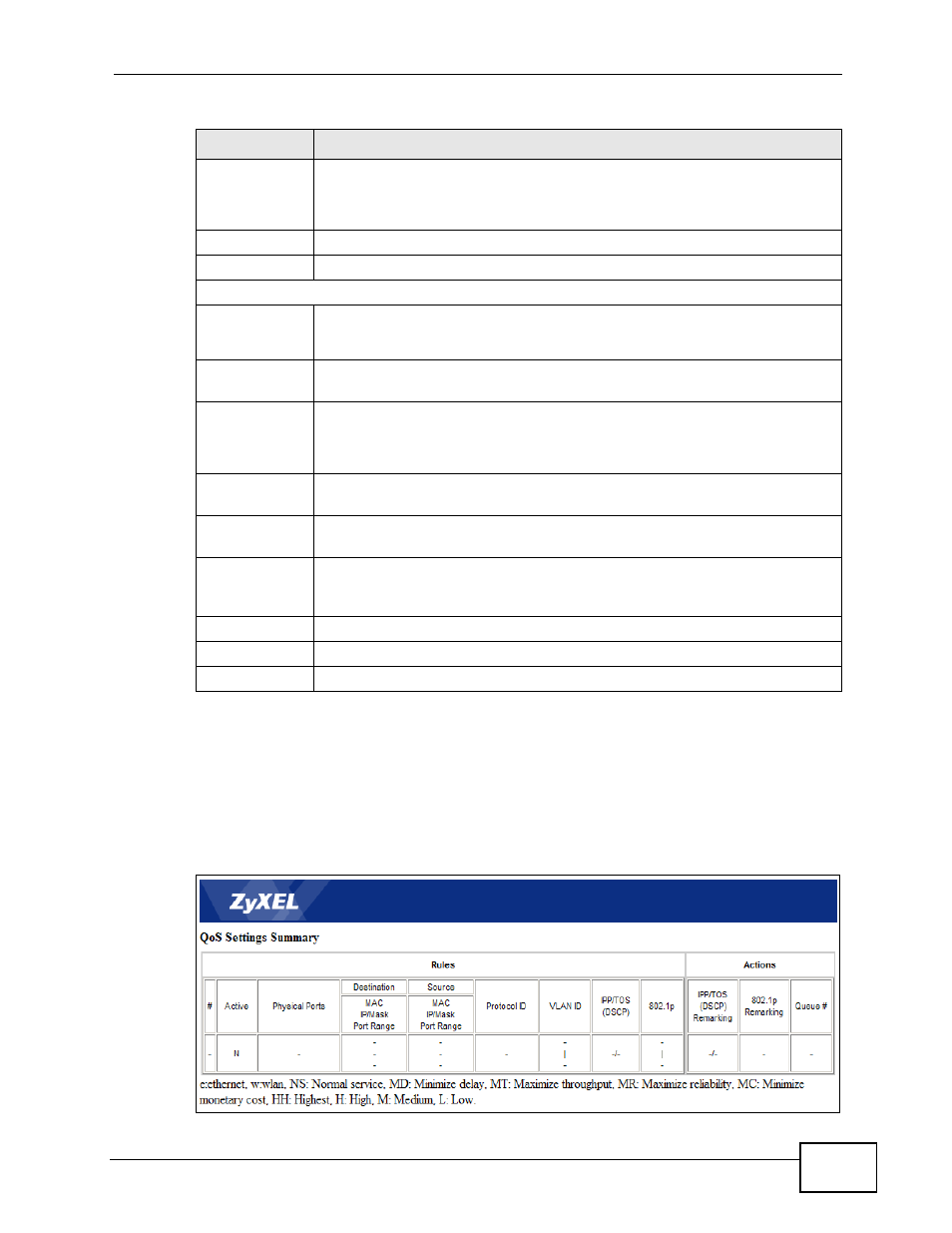

Figure 86 Advanced Setup > QoS > QoS Settings Summary
Type of
Service Select a type of service from the drop-down list box.
Available options are: Normal service, Minimize delay, Maximize
throughput, Maximize reliability and Minimize monetary cost.
DSCP Range Specify a DSCP number between 0 and 63 in this field.
802.1p Select a priority level (0 to 7) from the drop-down list box.
Action
IPP/DS Field
Select IPP/TOS to specify an IP precedence range and type of services.
Select DSCP to specify a DiffServ Code Point (DSCP) range.
IP Precedence
Remarking Enter a range from 0 to 7 to re-assign IP precedence to matched traffic.
Zero is the lowest priority and seven is the highest.
Type of
Service
Remarking Select a type of service to re-assign the priority level to matched traffic.
Available options are: Normal service, Minimize delay, Maximize
throughput, Maximize reliability and Minimize monetary cost.
DSCP
Remarking Specify a DSCP number between 0 and 63 to re-assign the priority level
to matched traffic.
802.1p
Remarking Select a priority level (0 to 7) to re-assign the priority level to matched
traffic.
Queue # Specify a Low, Medium, High or Highest queue tag to matched traffic.
Traffic assigned to a higher queue gets through faster while traffic in
lower queues is dropped when there is network congestion.
ADD Click this to add the rule.
DELETE Click this to remove the rule.
CANCEL Click this to restore previously saved settings.
