Chapter 13 802.1Q/1P
P-660HN-TxA User’s Guide
167
Note: If the WAN interface in the VLAN group is not the default router, you need to
create a static route to communicate with the WAN.

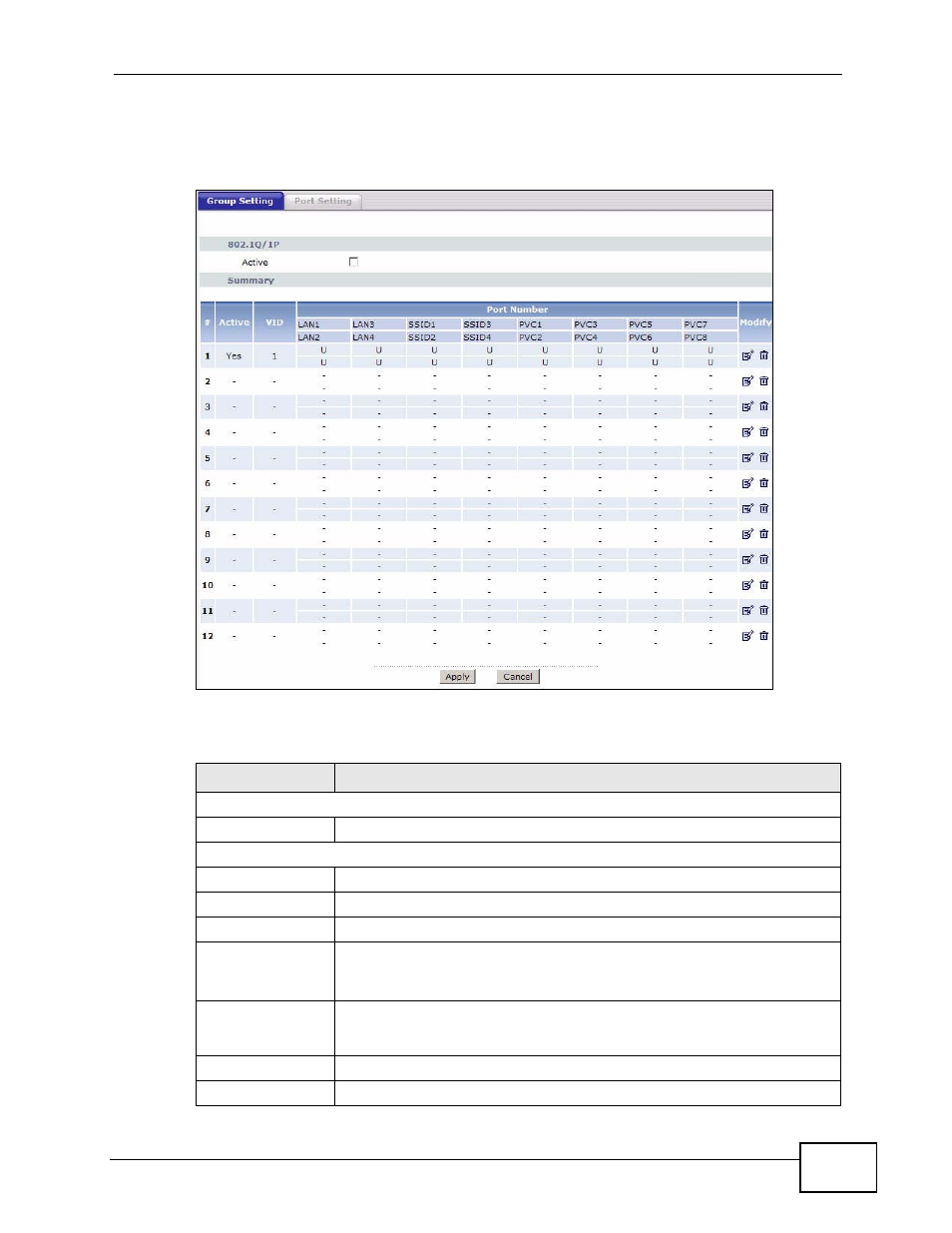

Figure 81 Advanced > 802.1Q/1P > Group Setting
The following table describes the labels in this screen.
Table 55 Advanced > 802.1Q/1P > Group Setting
LABEL DESCRIPTION
802.1Q/1P
Active
Select this check box to activate the 802.1P/1Q feature.
Summary
#
This field displays the index number of the VLAN group.
Active This field displays whether 802.1P/1Q is active for the VLAN group.
VID This field displays the ID number of the VLAN group.
Port Number These columns display the VLAN’s settings for each port. A tagged
port is marked as T, an untagged port is marked as U and ports not
participating in a VLAN are marked as “–“.
Modify Click the Edit button to configure the the ports in the VLAN group.
Click the Remove button to delete the VLAN group.
Apply Click this to save your changes.
Cancel Click this to restore your previously saved settings.
