ViewSonic PJ1165
6
Setting Up
Arrangement

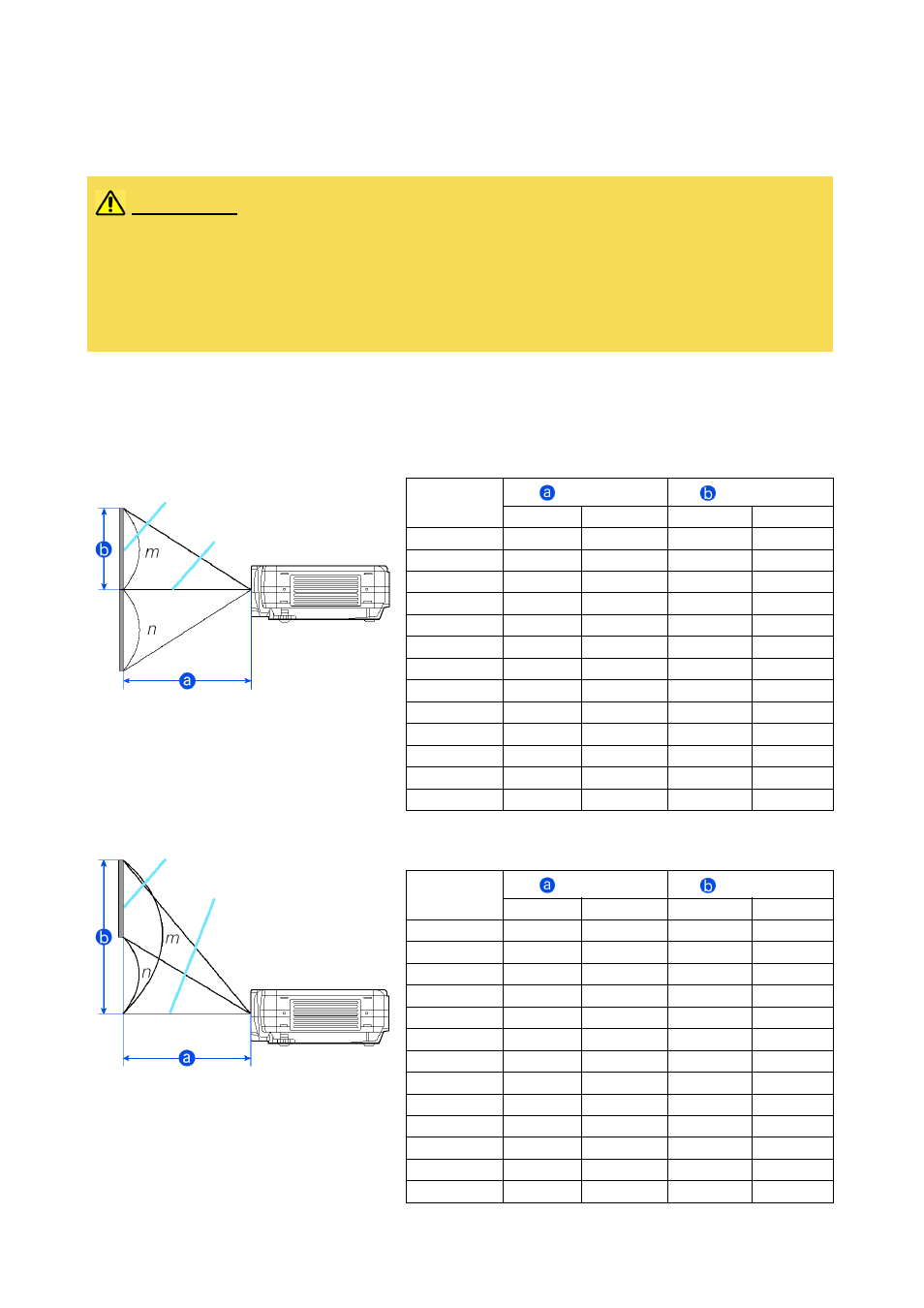

Refer to the illustrations and tables below to determine the screen size and projection
distance. The values shown in the table are calculated for a full size screen. (±10%)
Reference for the 4:3 aspect ratio
Reference for the 16:9 aspect ratio
WARNING
• Before installation, make sure that the projector is turned off and the power code is
disconnected.
• Do not set up and move the projector, while it is hot.
• Install the projector in a suitable environment according to instructions of the “User’s
Manual – Safety Guide” and this manual.
• The power outlet should be close to the projector and easily accessible.
Screen Size
Inches (m)
[Inches (m)]
[Inches (cm)]
Min. Max.
m:n=1:1
m:n=10:0
40 (1.0)
46 (1.2)
71 (1.8)
12 (30)
24 (61)
60 (1.5)
71 (1.8)
107 (2.7)
18 (46)
36 (91)
70 (1.8)
83 (2.1)
126 (3.2)
21 (53)
42 (107)
80 (2.0)
95 (2.4)
144 (3.7)
24 (61)
48 (122)
100 (2.5)
120 (3.0)
181 (4.6)
30 (76)
60 (152)
120 (3.0)
144 (3.7)
217 (5.5)
36 (91)
72 (183)
150 (3.8)
181 (4.6)
272 (6.9)
45 (114)
90 (229)
200 (5.1)
243 (6.2)
364 (9.2)
60 (152)
120 (305)
250 (6.4)
304 (7.7)
455 (11.6)
75 (191)
150 (381)
300 (7.6)
366 (9.3)
547 (13.9)
90 (229)
180 (457)
350 (8.9)
427 (10.9)
638 (16.2)
105 (267)
210 (533)
400 (10.2)
489 (12.4)
730 (18.5)
120 (305)
240 (610)
500 (12.7)
612 (15.5)
913 (23.2)
150 (381)
300 (762)
Screen Size
Inches (m)
[Inches (m)]
[Inches (cm)]
Min. Max.
m:n=1:1
m:n=10:0
40 (1.0)
50 (1.3)
77 (2.0)
10 (25)
23 (58)
60 (1.5)
77 (2.0)
117 (3.0)
15 (37)
34 (87)
70 (1.8)
91 (2.3)
137 (3.5)
17 (44)
40 (102)
80 (2.0)
104 (2.6)
157 (4.0)
20 (50)
46 (116)
100 (2.5)
131 (3.3)
197 (5.0)
25 (62)
57 (145)
120 (3.0)
158 (4.0)
237 (6.0)
29 (75)
69 (174)
150 (3.8)
198 (5.0)
297 (7.5)
37 (93)
86 (218)
200 (5.1)
265 (6.7)
396 (10.1)
49 (125)
114 (291)
250 (6.4)
332 (8.4)
496 (12.6)
61 (156)
143 (363)
300 (7.6)
399 (10.1)
596 (15.1)
74 (187)
172 (436)
350 (8.9)
466 (11.8)
696 (17.7)
86 (218)
200 (508)
400 (10.2)
533 (13.5)
795 (20.2)
98 (249)
229 (581)
450 (11.4)
600 (15.2)
895 (22.7)
110 (280)
257 (654)
Screen
Lens center
Side View
Side View
Screen
Lens center
