Viewing the event log
1

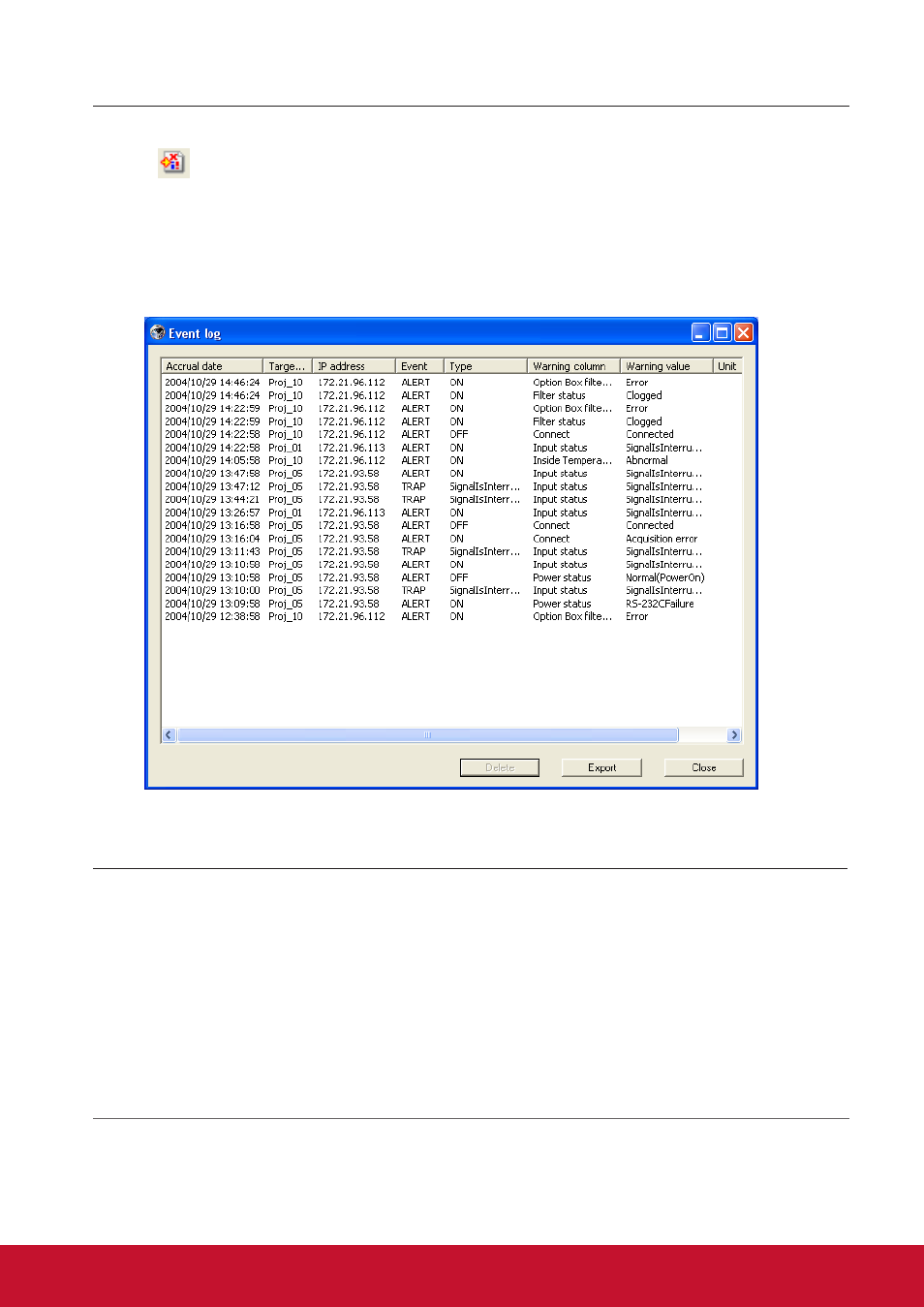

Click button on the tool bar. The event log display window appears and the events
which have been happened on the targets are listed on this window as the below.
2
To export these events as text file (CSV file), click Export button.
3
To delete the event log, select the accrual date item you intend to delete by clicking and
then click Delete button. On the confirmation dialog, click Yes to execute deletion.
Items Description
Accrual date ......... Accrual date of the event
Target name......... Name of the network equipment
IP address............... IP address of the network equipment
Event ......................... Type of the Event (ALERT, TRAP, SYSERR ) (See table on the next page)
Type ........................... Type of the Event (See table on the next page)
Warning column.......... Warning column of the Event (See table on the next page)
Warning value .... Warning value of the Event (See table on the next page)
Unit............................. Displays unit of the warning value.
Event log information items
The listed items are fixed.
The order of the event log list can be changed temporarily by clicking the column name which you
want to sort. It switches ascending or descending order by clicking the column name each time.
Column width can be changed by dragging the right edge of the column. The column order can be
changed with drag and drop the column. Column cannot be deleted.
Viewing the event log
