2-66 Installation
DSU DIM Installation
DSU DIM Installation
Introduction The DSU DIM is designed to be installed in the DTE position only. The DSU
option will not operate if the DIM is installed in the DCE position.
You can install up to two DSUs per platform using both ports 1 and 2.
Example of
Installing the DSU

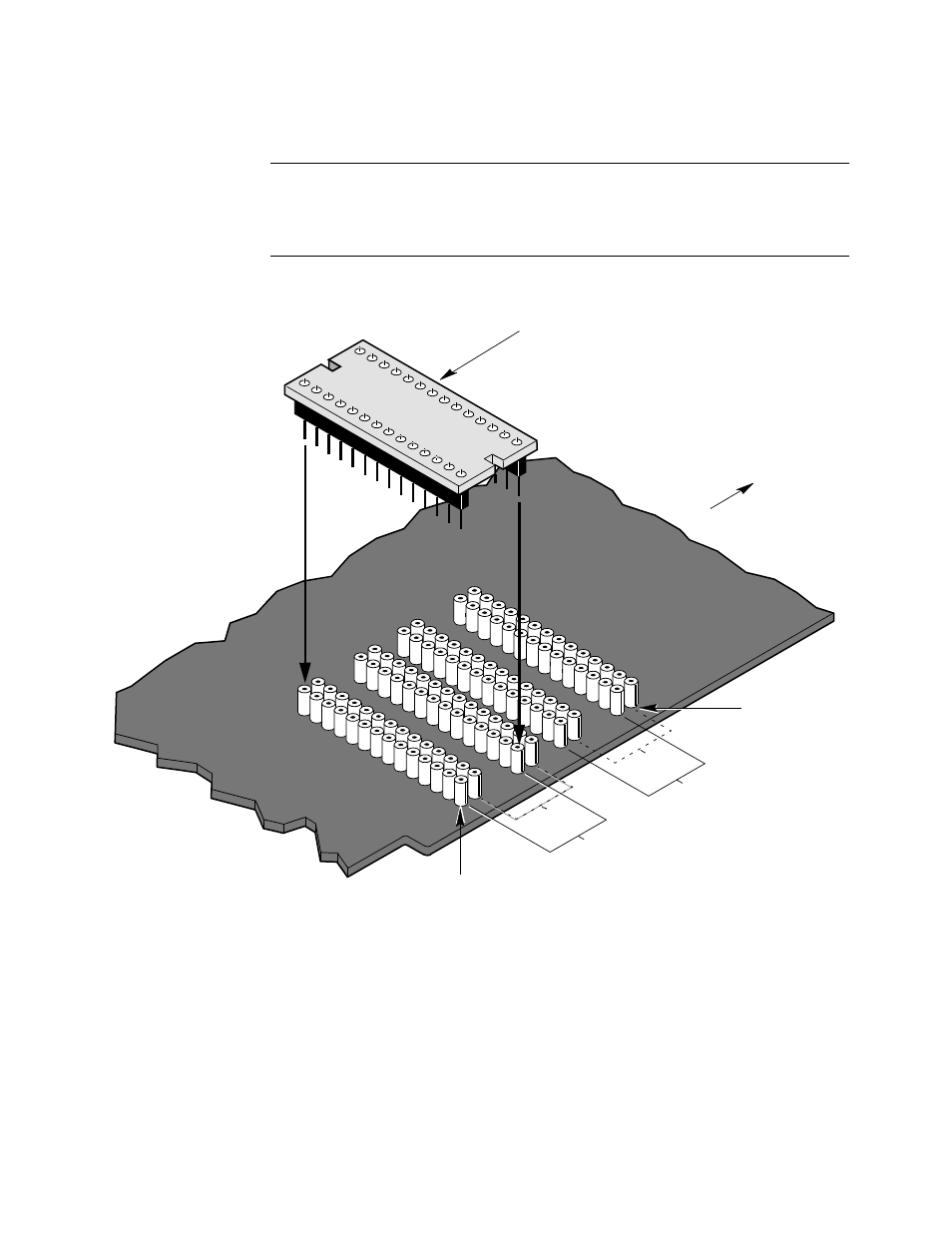

DIM Figure 2-23 shows the DSU DIM installation.
Figure 2-23. DIM Installation
DSU DIM
Front Panel
DCE
DTE
Port 1
Port 2
DCE
DTE
