2-42 Installation
Installing Nodes in Modulus Enclosures
TRIM Card in Left-
Most Position Figure 2-11 shows the TRIM card in the left-most position of the Modulus 21
enclosure.

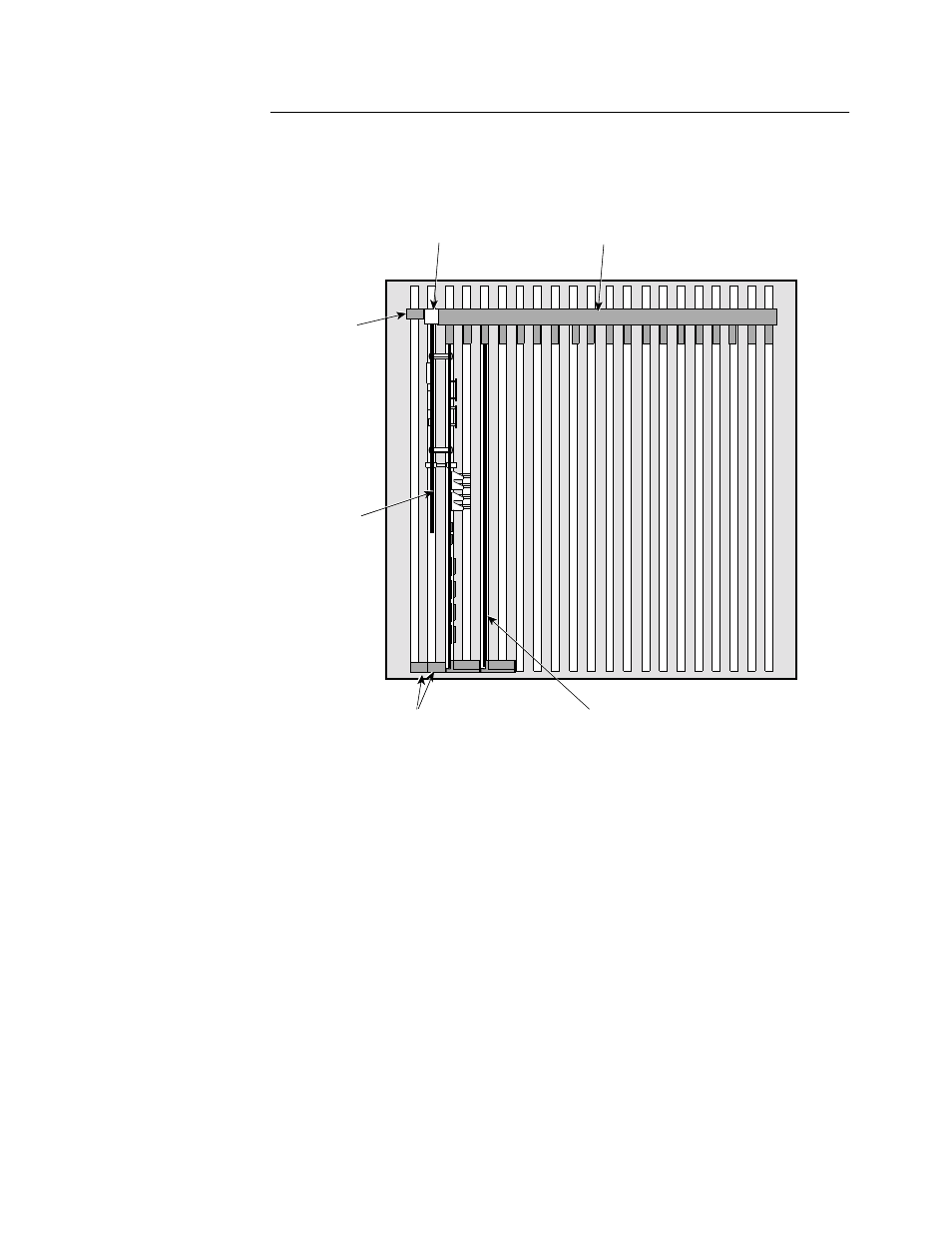

Figure 2-11. TRIM Card In Left-most Position of Modulus 21 Enclosure
Modulus 21-Slot Nest
Top View
Processor Card
Note: TRIM card installed in left-most position in Modulus 21.
The TRIM card requires two slots for its backplane.
TRIM
Card
Front of Nest
Modulus 9/21 Filler Panels
1 2 3 4 5 6 9 8 7 10 11 12 13 14 15 16 17 18 Slots
Modulus 9/21 TRIM Card Filler Panel 6500 Node 54-Port Backplane
19 20 21
Modulus 9/21
Filler Panel
