2-56 Installation
Replacing Processor Card Components
Example of DIM

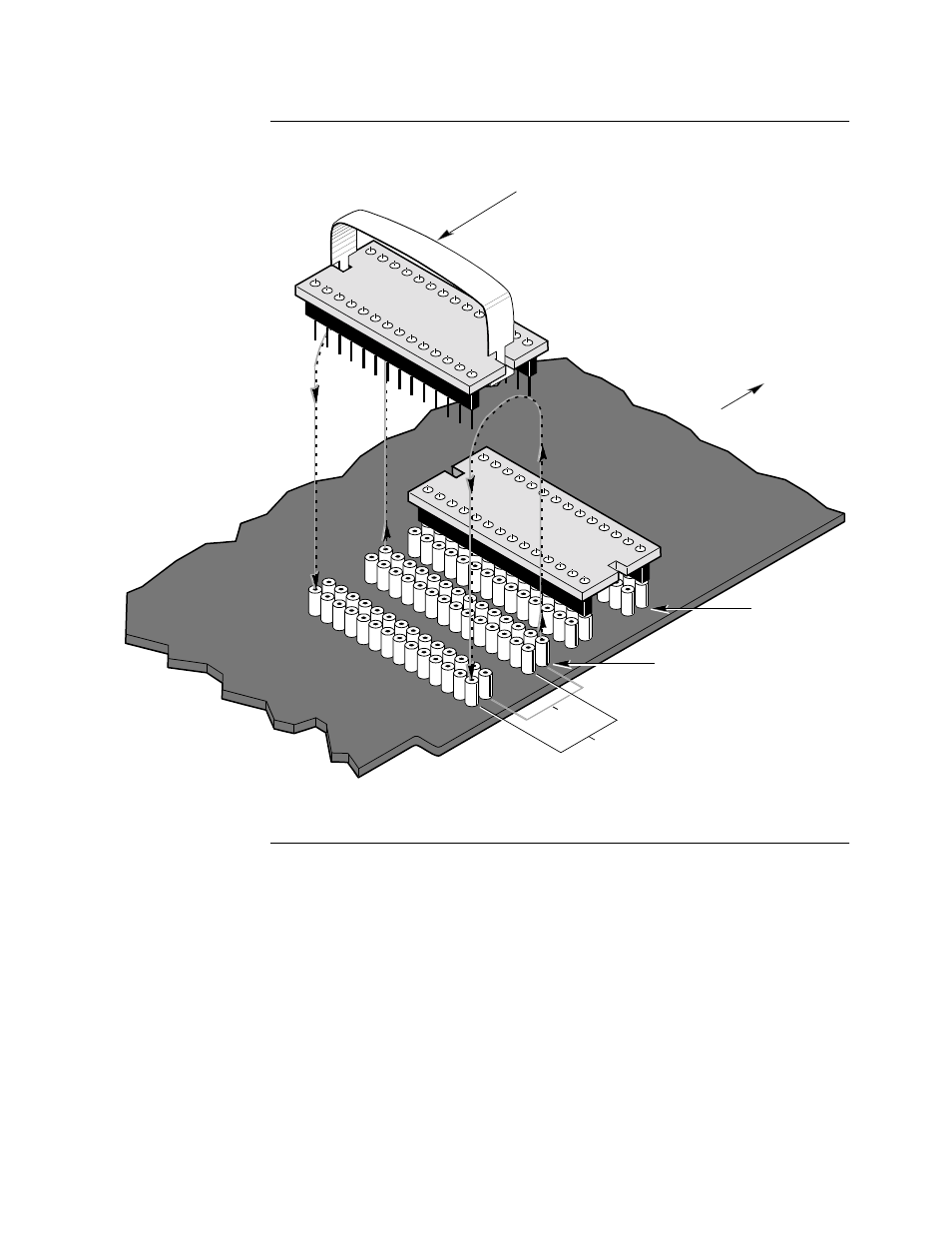

Removal Figure 2-18 shows DIM removal.
Figure 2-18. DIM Removal
New DIM
Installation If you install a new type of DIM on the 6500 PLUS processor card, you may need to
change the jumpers on the port interface jumper pins. Figure 2-19 shows the location
of the pins on the card.
Plastic DIM Removal Strap
Front Panel
DCE
DTE
Port 1
Port 2
