Installing Nodes in Modulus Enclosures
Modulus 21 and
RFI Suppression
Bar If you are installing a TRIM card in a Modulus 21 enclosure, add the RFI
suppression bar as shown in Figure 2-16. The bar is notched to fit across the inside of
the door.

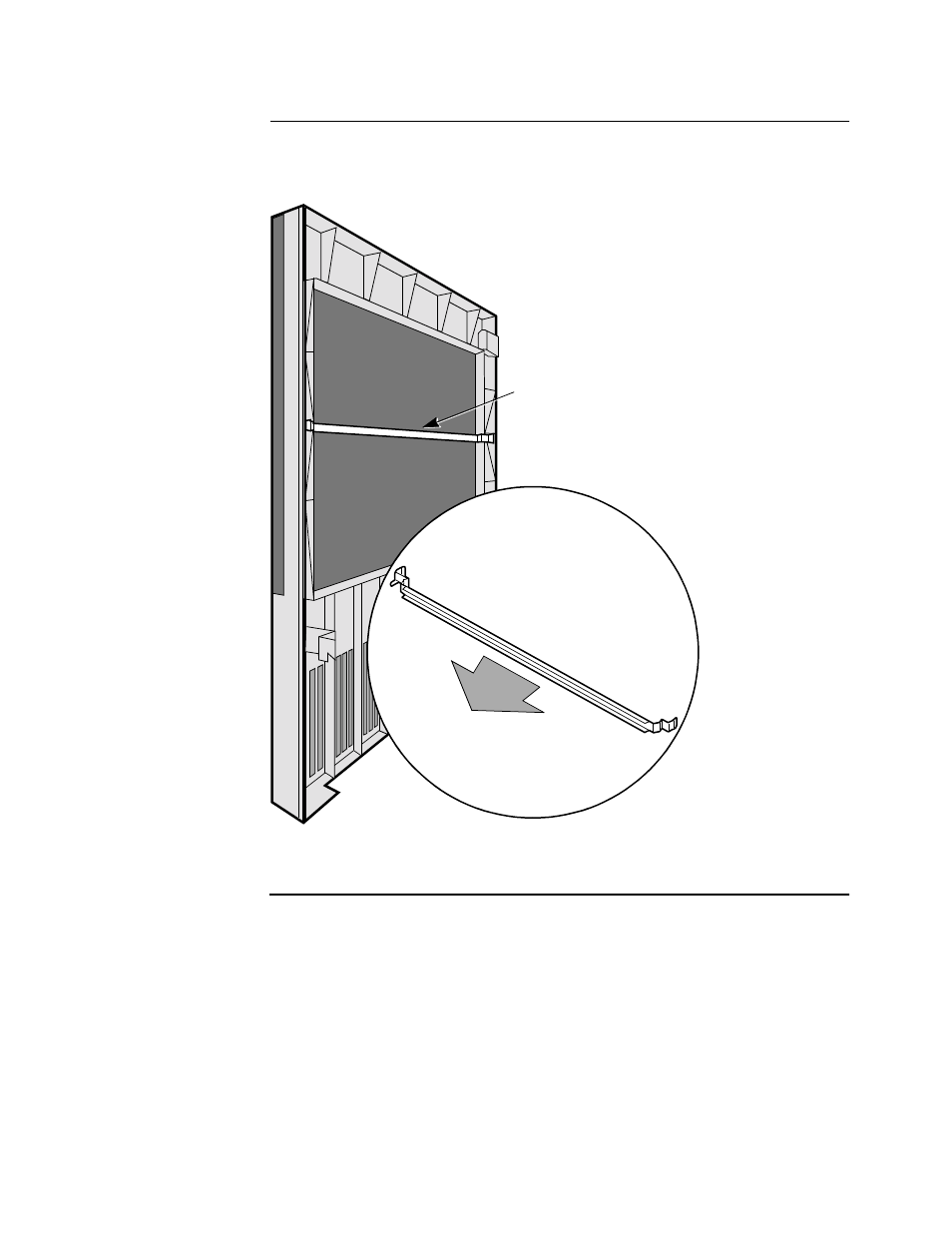

Figure 2-16. RFI Suppression Bar (Modulus 21 Enclosure)
This Side of Bar to
Face Inside of Door
Modulus 21 Door
(Inside View)
RFI Suppression Bar
