2-54 Installation
Replacing Processor Card Components
Replacing Processor Card Components
Introduction You can upgrade and replace components on the 6500 PLUS processor card. In both
standalone and Modulus enclosures, you can:
• Replace DIMs (data interface modules)
• Set jumpers on the port interface pins
• Install single in-line memory modules (SIMMs)
• Replace a FLASH module
• Replace the ID Module
• Replace PROMs
• Replace the CMEM chip

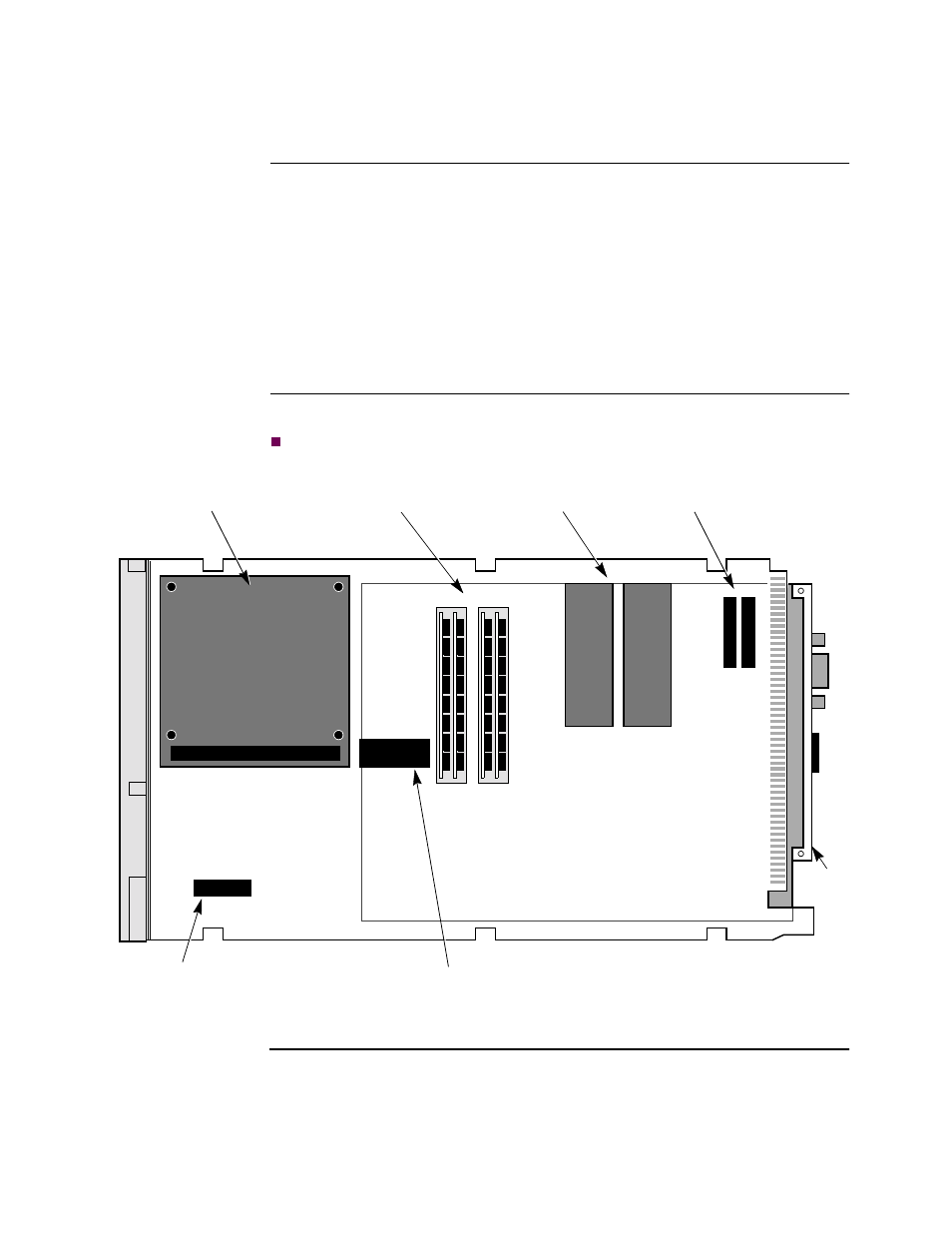

Processor Card Figure 2-17 shows the location of these components on a 6500 PLUS processor card.
Note
The PROMs are located beneath the FLASH Module.
Figure 2-17. 6500 PLUS Processor Card
SIMMs DIMs Port Interface Jumpers
Trim
Card
U40
U83
CMEM Chip
ID Module
Port 1 Port 2
PROM
FLASH Module
(underneath FLASH Module)
