Installation 2-39
Installing Nodes in Modulus Enclosures
Modulus 18 Figure 2-9 shows the TRIM card spacing in a Modulus 18 enclosure.

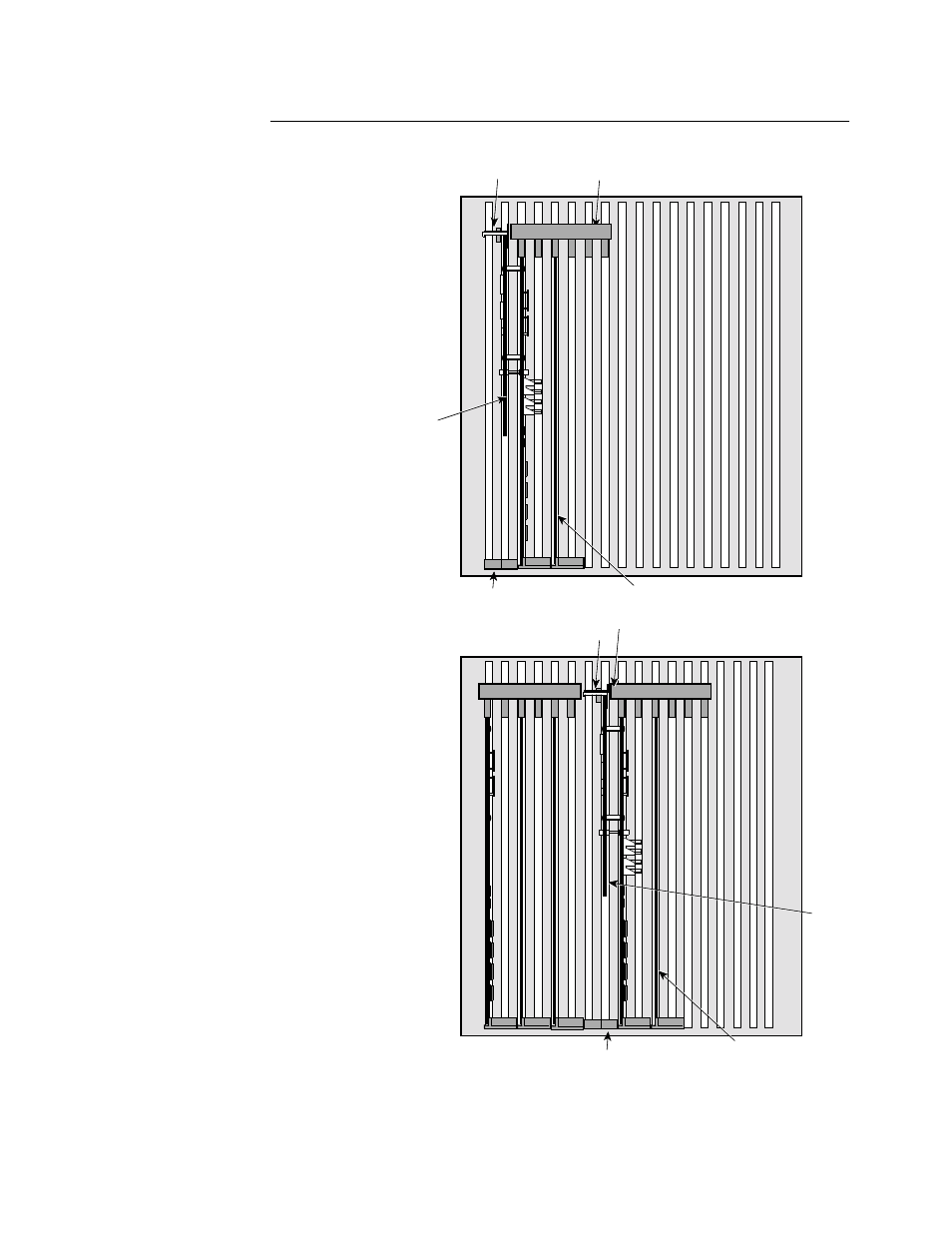

Figure 2-9. TRIM Card Spacing in a Modulus 18 Enclosure
Modulus 18-Slot Nest
Top View
Processor Card
TRIM
Card
Front
Modulus 8/18
Filler Panels
1 2 3 4 5 6 9 8 7 10 11 12 13 14 15 16 17 18 Slots
TRIM Card Filler Panel 6500 Node 18-Port Backplane
Processor Card
TRIM
Card
Front
Modulus 8/18 Filler Panel
1 2 3 4 5 6 9 8 7 10 11 12 13 14 15 16 17 18 Slots
TRIM Card Filler Panel
6500 Node 18-Port Backplane
Note: 6500
PLUS
installed to the
left or right of a product
backplane in Modulus 18.
The TRIM card requires
two slots for its backplane.
Note: 6500
PLUS
installed in left-
most position in Modulus
18. The TRIM card requires
two slots for its backplane.
