Regency ® P40-1 Direct Vent Gas Fireplace 38
INST
ALLA
TION
INSTALLATION

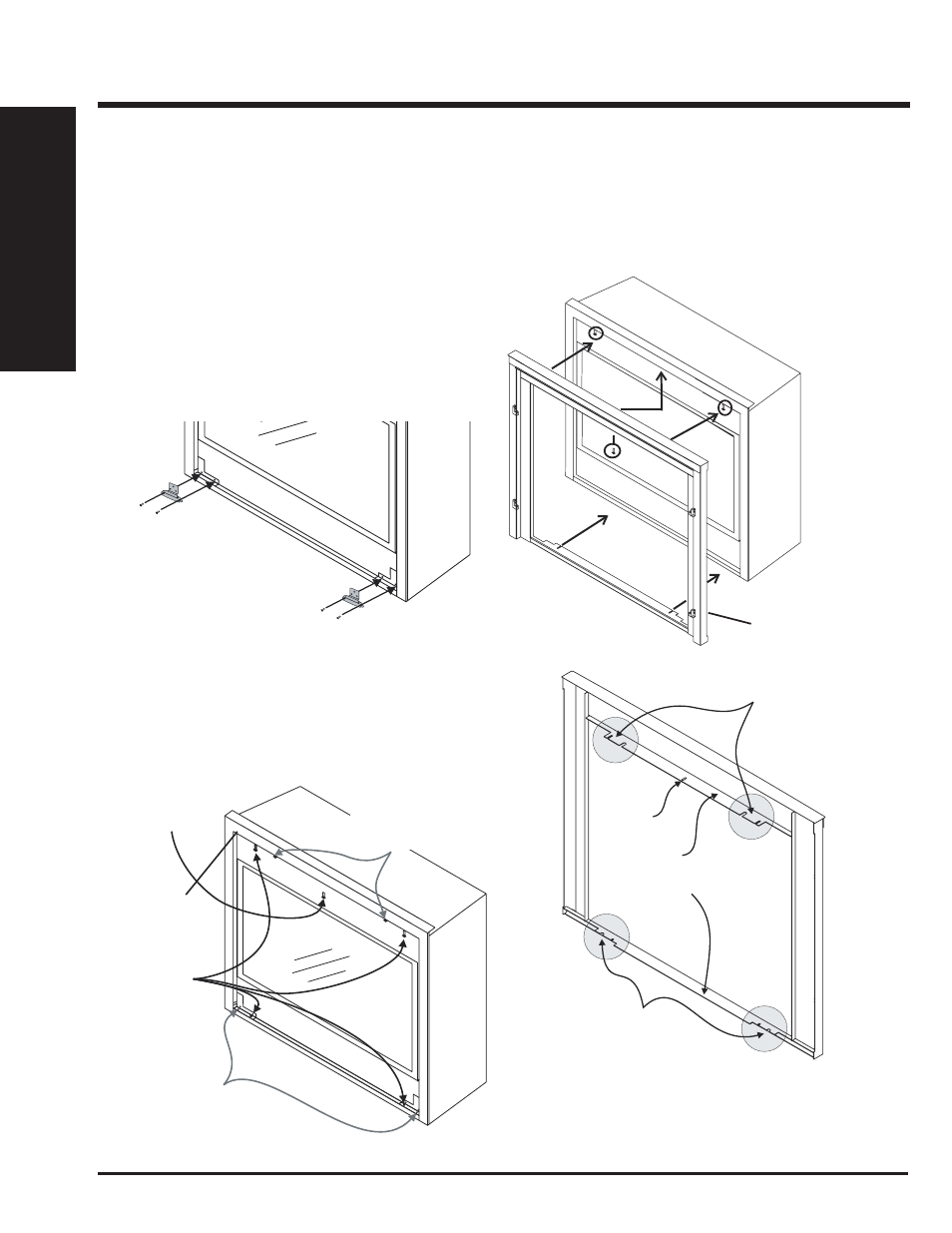

Leave these two
screws secured
Remove the
center screw
Loosen these
four screws
Leave these two
screws secured
Cut Outs
Oblong
Hole
Top Flange
Bottom Flange
Cut Outs
Rear view of Full
Screen Door
Frame Shown
Inside
Top of
Outer
Frame
1) Before beginning the installation; if already installed,
remove the Top and Bottom Louvers, the Manual
Control Box and the Glass Door from the unit. Refer
to the manual for instructions and reverse the steps
(See Page 32).
2) Remove the Screen Doors from the Full Screen Door
Frame by fully opening the doors and lifting up off of
the hinges. See important note in step 9.
3) Install the Hinges to the Hinge Brackets on the left
and right side of the bottom of the outer frame, se-
cure using 2x #8 Self Tapping Phillips Screws per
hinge.
Full Screen
Door Frame
b) Slide the cut-outs in the Top and Bottom Flange
of the Full Screen Door Frame under the screw
heads which were loosened in step 4a. Once the
Frame is in place, tighten the screws to secure.
Also re-secure the top center screw through the
oblong hole.
4) Full Screen Door Frame Installation
a) Before attaching the Full Screen Door Frame
to the unit, loosen the left and right side #8 Self
Tapping Phillips Screws located on the inside top
of the outer frame of the appliance. Also remove
the center screw.
NOTE: Should the fi nished wall protrude beyond the
face of the unit, you can accommodate up to
1/2" discrepancy in depth.
FULL SCREEN DOORS
