Regency ® P40-1 Direct Vent Gas Fireplace 10
INST
ALLA
TION
INSTALLATION
13” Mantel
8” Mantel
1” Mantel
33”
to floor
2
0
12 14 6 4 8 10
17”
21”
2
0
12
6
16
18
20
4
14
8
10
Combustible Material
Top Standoff
Non-Combustible
Header
(On Edge)
Side View
Top
Louvers
12”
8-1/2”
10-1/4”
Top
Nailing
Strip
Non-Combustible
Material
Full Screen Doors

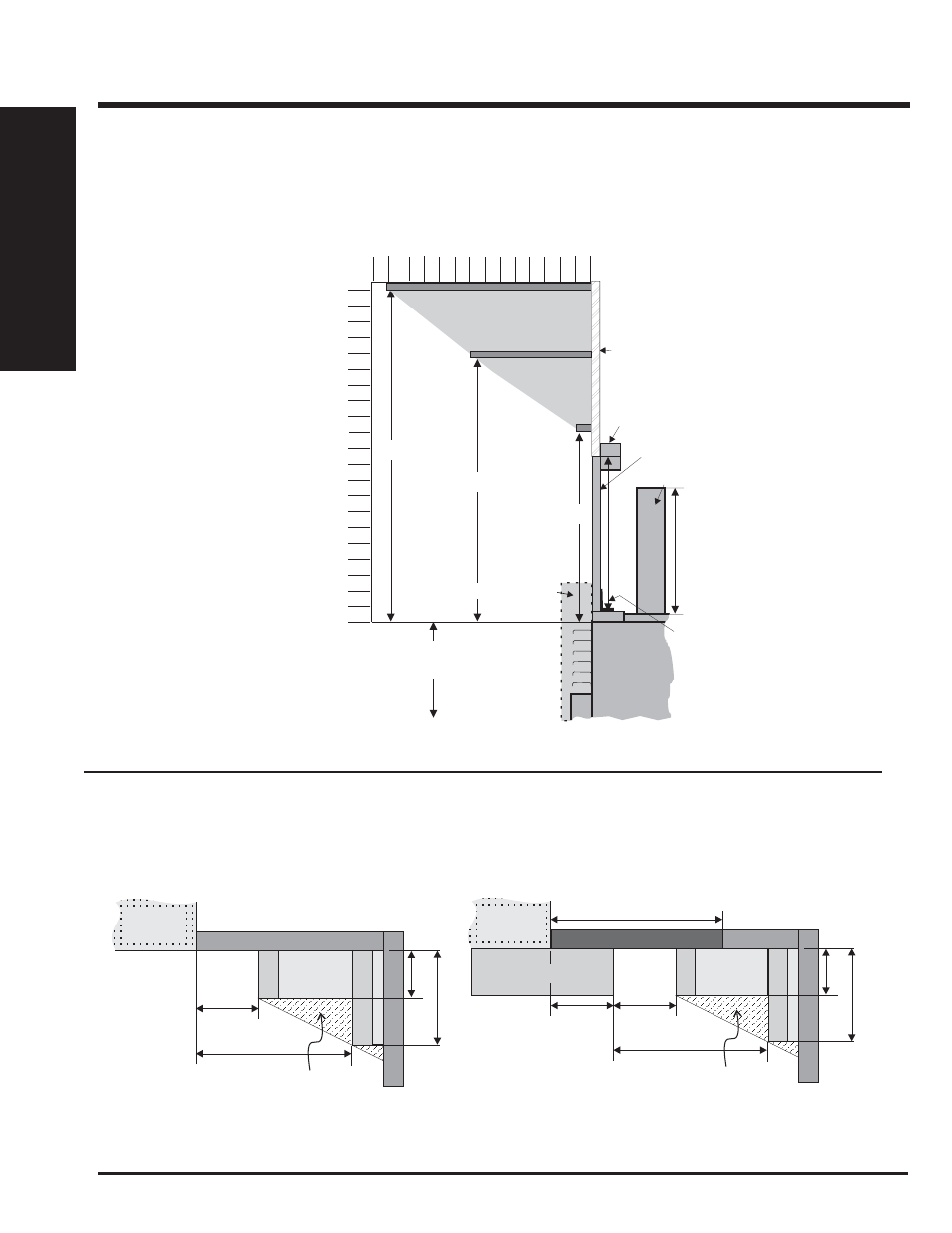

MANTEL CLEARANCES
Because of the extreme heat this fi replace emits, the mantel clearances are critical. Combustible mantel clearances from top of louver
opening are shown in the diagram below. Mantel may be installed anywhere in the shaded area.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible
board.
Note: Ensure that any paint
used on the mantel or
on the facing is "heat
resistant" or the paint may
discolour.
7-1/4”
2”
Mantel
leg
Mantel
leg
P40
Fireplace
Allowable mantel leg
projection.
6”
1-1/2"
Maximum
1-1/2" projection at 2"
minimum clearance.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
7-1/4”
2”
Mantel
leg
Mantel
leg
Allowable mantel leg
projection.
6”
1-1/2"
P40
Fireplace
6”
Non Combustible Facing
2”
Full Screen Door
Maximum
1-1/2" projection at 2"
minimum clearance.
Mantel Leg Clearances - Full Screen Door Mantel Leg Clearances - Flush Front
