Regency ® P40-1 Direct Vent Gas Fireplace 32
INST
ALLA
TION

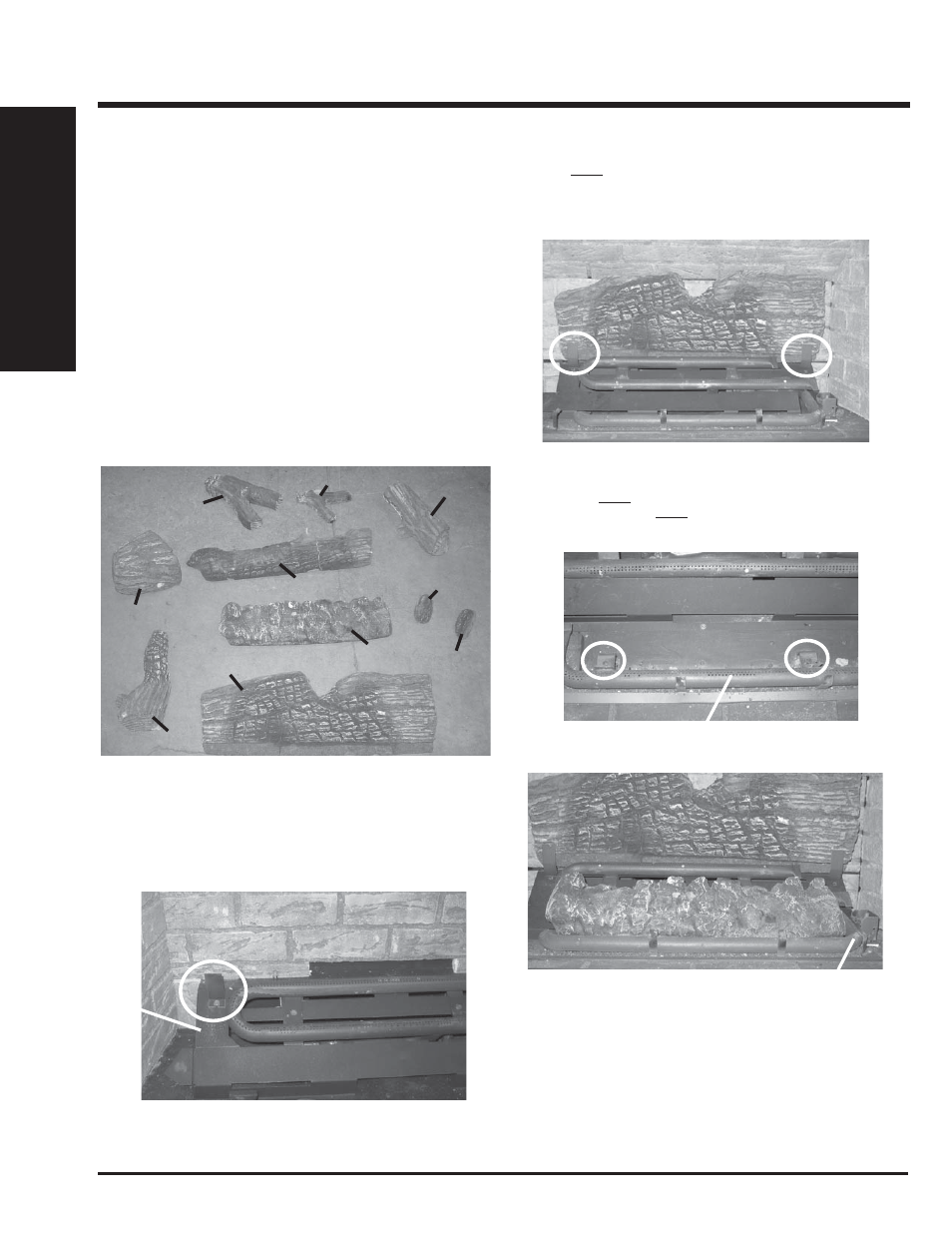

INSTALLATION
Read the instructions below carefully and refer to the pictures. If the
logs are broken do not use the unit until they are replaced. Broken
logs can interfere with the pilot operation.
Log kit (Part # 503-930) contains the following pieces:
a) 03-32 Back Log
b) 03-40 Ember Bed
c) 03-34 Front Left Log
d) 03-33 Middle Back Log
e) 03-36 Middle Right Cross Log
f) 03-37 Front Right Log
g) 03-38 Small Ember
h) 03-46 Log Center Left Y
i) 03-47 Log Center Y
j) 902-154 Embers Lava
k) 902-179 Vermiculite
l) 902-153 Rockwool
m) 946-669
Platinum Embers (supplied with packaged manual)
1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.
2) Remove the brackets on the left and right side of the back air box.
03-38 (1)
03-34
03-32
03-38 (2)
03-33
03-46
03-36
03-37
03-40
3) Fit log 03-32 into the pins on the back air box. Push the log tight
against the back brick panel.
Back Air
Box
4) Re-install the brackets removed in step 2 to hold the log in place.
5) Position log 03-40 up to and against the 2 tabs located on the front
burner. Then slide log 03-40 to the right until it touches the burner
tube.
Front Burner
Burner Tube
03-32
03-47
03-40
LOG SET INSTALLATION
