30

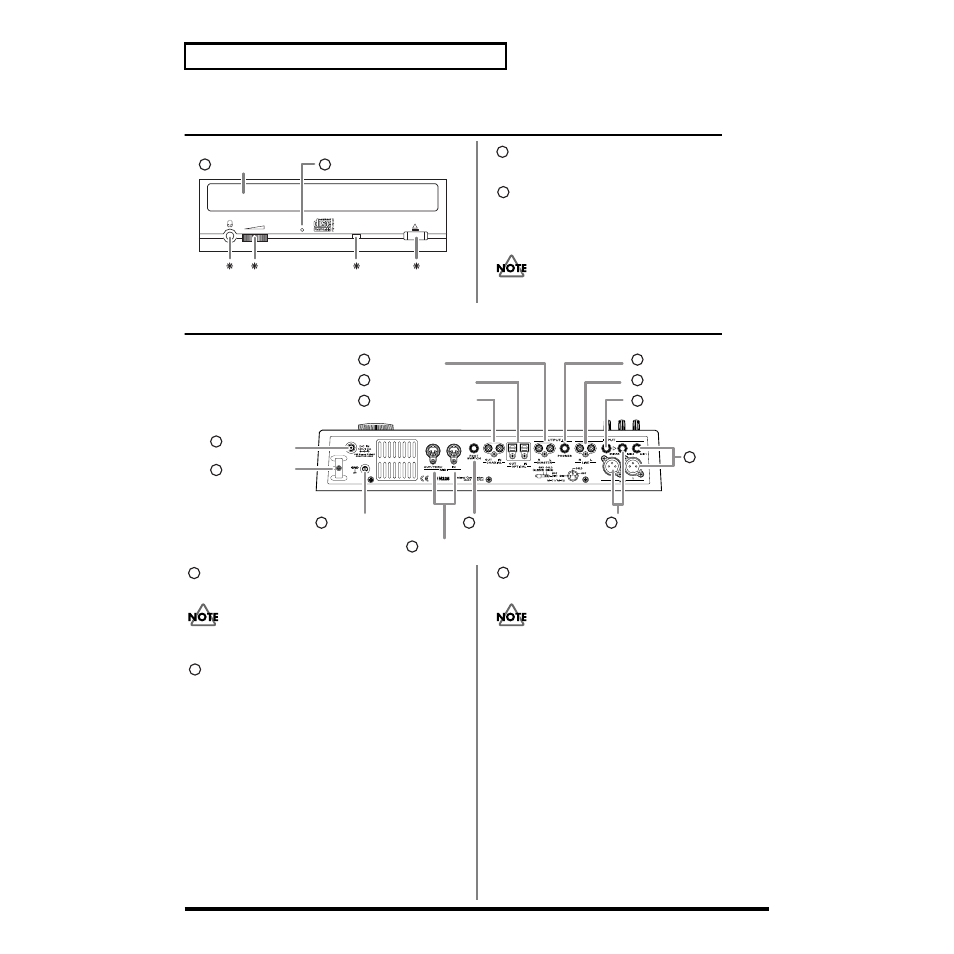

Panel Descriptions
Front Panel
fig.front_e
Disc Tray
Place the CD to be loaded on this tray.
Emergency eject hole
This hole allows the disc tray to be opened in case of
emergency.
➔ “If the disc tray does not open” (p. 36)
The jack and button marked by the ❋ symbol cannot be used.
Rear Panel
fig.rpanel_e
AC ADAPTOR Jack
Connect the supplied AC adaptor to this jack.
You must use only the included PSB-2U AC adaptor. Use of any
other adaptor may cause overheating or malfunctions.
Cord Hook
Wrap the cable around this hook so that the AC adaptor cable
is not pulled out accidentally.
* If the AC adaptor is disconnected during operation, your important
recorded data may be lost.
Earth Connector
Connect the ground cable here.
In some cases, a Electric Guitar etc. is connected, the metallic part of
the panel may sometimes feel rough and grainy. This is due to an
infinitesimal electrical charge, which is absolutely harmless.
However, if you are concerned about this, connect the ground
terminal (see figure) with an external ground. When the unit is
grounded, a slight hum may occur, depending on the particulars of
your installation. If you are unsure of the connection method, contact
the nearest Roland Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fire or explosion)
• Telephone-line ground or lightning rod (may be dangerous in the
event of lightning)
1 2 Disc Tray Emergency eject hole
1
2
1 AC ADAPTOR
Jack
3 Earth Connector
2 Cord Hook
4 MIDI Connectors
5 FOOT SWICH Jack
6 MASTER Jack 8 PHONES Jack
7 OPTICAL connectors
7 COAXIAL connectors 9 LINE Jack
10 GUITAR/BASS Jack
11 MIC1 jack
12 MIC2 jack
1
2
3
