Riverstone Networks RS Switch Router User Guide Release 8.0 30-73

WAN Configuration

Scenarios for Deploying Channelized T1, E1 and T3

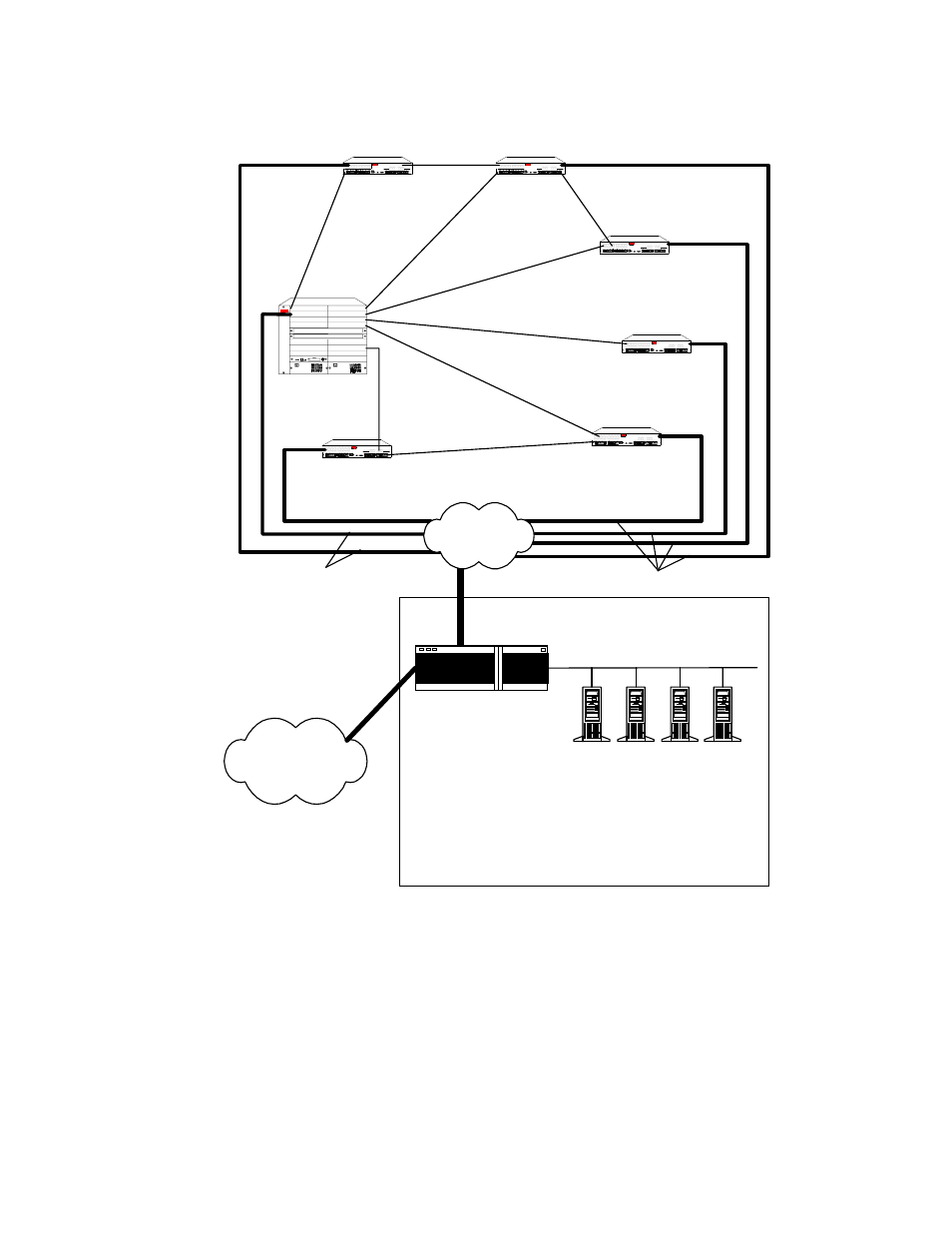

Figure 30-10 Routed Inter-Office Connections with E1 on RS 8x00

Internet

Internet Service Provider

12.20.10.5/24

Shared Data

E1 ( x 4 )

RS 8600

120.210.1.1/24

120.210.2.1/24

120.210.3.1/24

120.210.4.1/24

120.210.5.1/24

120.210.6.1/24

120.210.7.1/24

hqsite

rsite2

rsite3

rsite4

rsite5

rsite6

rsite7

RS 3000

TELCO

(PSTN)

Router
