17-84 Riverstone Networks RS Switch Router User Guide Release 8.0

Configuring L2 Tunnels

MPLS Configuration

, ports gi.6.2, gi.2.1, and gi.5.1 on R1, port gi.15.1 on R3, and port gi.12.2 on R5 are mapped to

customer ID 10. The customer IDs are mapped to VC labels that are distributed via LDP. The tunnel LSPs can use
either LDP or RSVP as the signaling protocol; configuration commands for RSVP tunnel signaling are shown for this
example.

Note

The ports that are mapped to a single customer ID number must be either all trunk
ports or all access ports. The example shows configurations for transporting
802.1q traffic.

Timesaver

Click on the router name (in blue) to see the corresponding configuration.

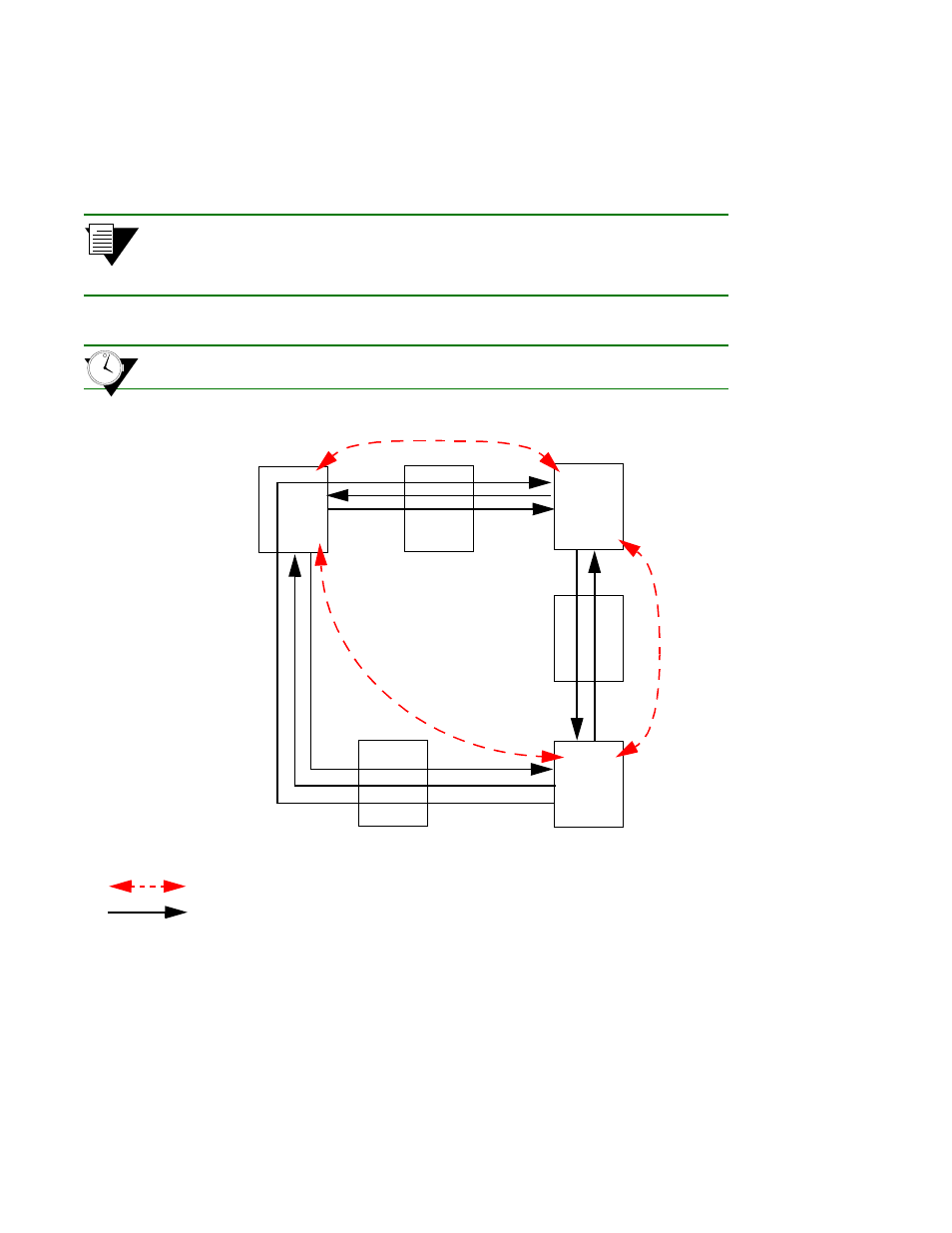

Figure 17-19 Tunneling of virtual circuits based on ports (RSVP tunnel)

Tunnel LSPs:

Virtual Circuit based on ports

gi.6.2
gi.2.1
gi.5.1

Customer ID 10:

gi.15.1

gi.12.2

gi.4.1 gi.14.1

gi.14.2 gi.12.2

gi.12.1

gi.3.1

gi.3.2

gi.13.1

gi.4.1
gi.5.1

gi.4.2
