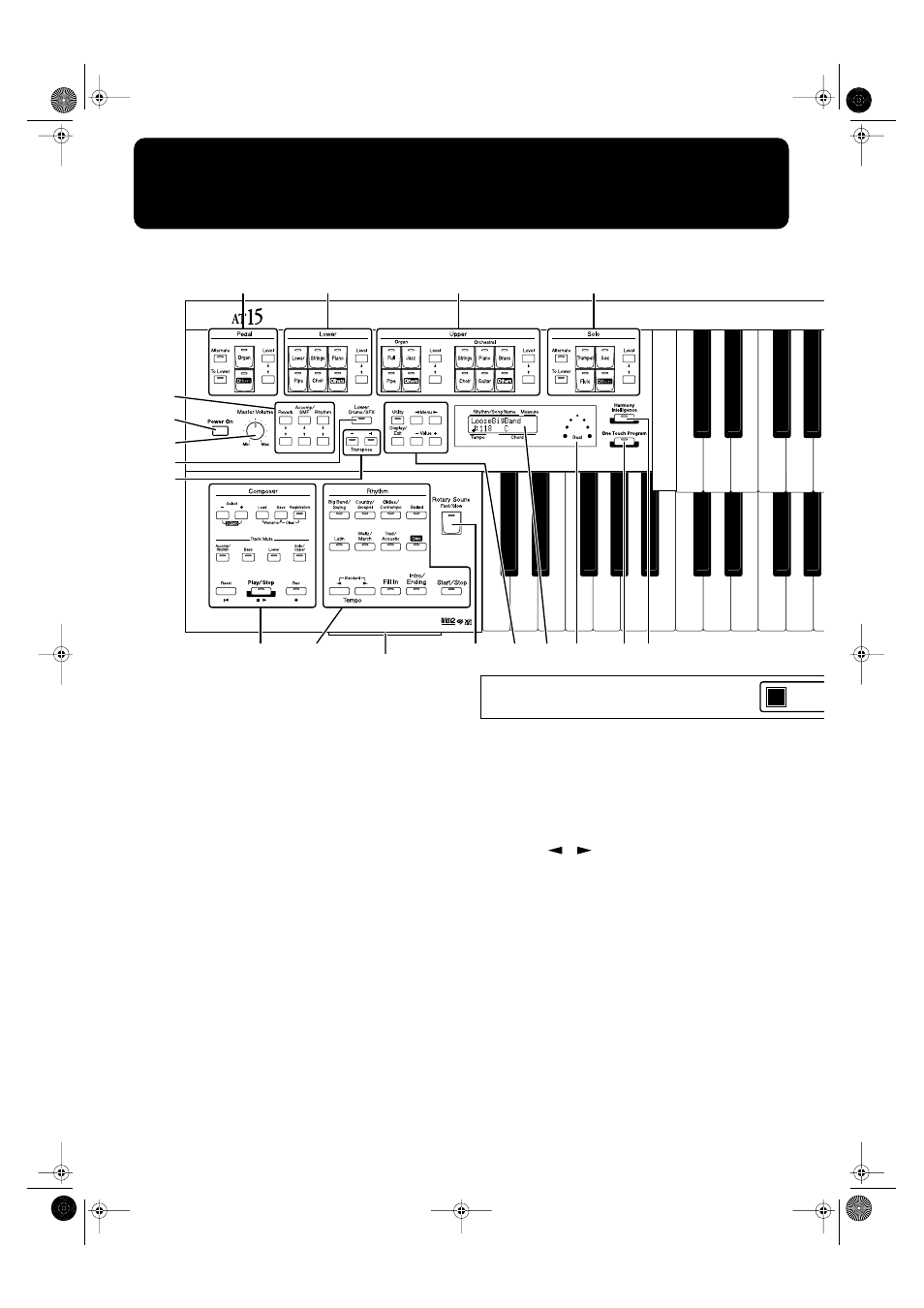

Panel Descriptions
1 Pedal Bass Voice select buttons
(
→ p. 22, p. 23)
Pedal Part
[Alternate] button
[To Lower] button (
→ p. 46)
Level [ ▲ ] [ ▼ ] button ( → p. 26)
2 Lower Voice select buttons ( → p. 23)
Lower part
Level [
▲ ] [ ▼ ] button ( → p. 26)
3 Upper voice select buttons ( → p. 23)
Upper Organ part
Upper Orchestral part
Level [
▲ ] [ ▼ ] button ( → p. 26)
4 Solo voice select buttons ( → p. 24)
Solo part
[Alternate] button
[To Lower] button (
→ p. 47)
Level [ ▲ ] [ ▼ ] button ( → p. 26)
5 [Power On] switch ( → p. 16)
6 [Master Volume] knob ( → p. 16)
7 Part Balance [ ▲ ] [ ▼ ] button ( → p. 26, p. 44)
8 Lower [Drums/SFX] button ( → p. 28)
9 Transpose [-] [+] buttons ( → p. 48)
10
[Utility] button ( → p. 87)
[Display/Exit] button ( → p. 18)
Menu [ ][ ] buttons
Value [-] [+] buttons
11 Display ( → p. 18)
12 Beat Indicator ( → p. 33)
13 [Harmony Intelligence] button ( → p. 41)
14 [One Touch Program] button ( → p. 34)
15 Composer
Select [-] [+] buttons
[Load] button (
→ p. 58, p. 59, p. 76, p. 77)
[Save] button ( → p. 56, p. 73)
[Registration] button ( → p. 53-p. 60)
Track Mute buttons ( → p. 64)
[Reset] button
[Play/Stop] button (
→ p. 62, p. 67)
[Rec] button ( → p. 65, p. 68, p. 76, p. 77)
Write
6
5
7
9
1 2 4 3
11 16 13 12 17 10 14 15
18
8
