97
Connecting External MIDI Devices
Connecting MIDI Devices
Playing the RD-700’s Internal
Sound Generator from an
External MIDI Device
Try Playing the RD-700 from an External MIDI Device.
Making connections
fig.
1. Before starting the connection procedure, make sure that
the power to all devices has been turned off.
2. After reading “Connecting the RD-700 to External
Equipment” (p. 22), connect an audio device/system or
headphones.

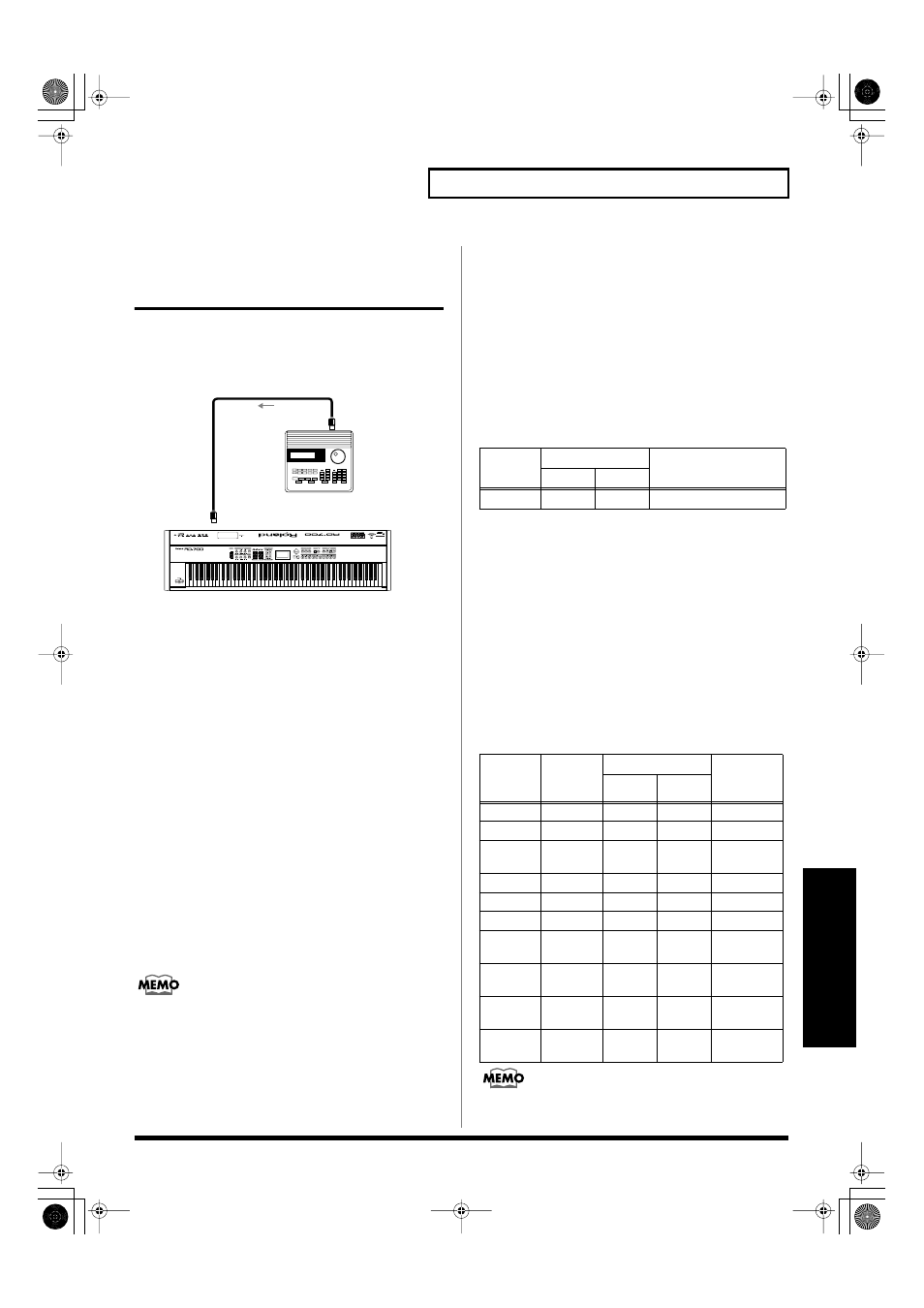

3. Connect the external MIDI device with the MIDI cable as
shown in the figure below.
4. As described in “Turning On the Power” (p. 24), turn on
the power of each device.
Setting the Channels
Set the RD-700’s receive channel to match the external MIDI
device’s transmit channel.
For instructions on setting the RD-700’s Receive channel,
refer to
“Setting the Receive Channel (Receive Channel)”
(p. 90).
When both channels are matched, playing the external MIDI
device produces sounds from the RD-700’s sound generator.
For instructions on how to set the transmit channel of the
external MIDI device, refer to the owner’s manual for your
external MIDI device.
Selecting RD-700 Sounds from an
External MIDI Device
Transmitting Bank Select (Controller Number 0, 32) and
Program Change messages from the external MIDI device to
the RD-700 allows you to switch Setups and Tones.
Switching Setups
The MIDI messages transmitted by the external MIDI device
will be received by the RD-700 to select Setups as shown in
the following table.
When switching setups, you must match the MIDI channel of
the transmitting device with the RD-700’s Control channel.
(p. 70)
When switching the tones in each part, match the MIDI
channel of the transmitting device with the RD-700’s Receive
channel. However, when the Control channel and the
Receive channel are both set to the same channel, the Control
channel takes priority, and setups are switched.
Switching Tones
The MIDI messages transmitted by the external MIDI device
will be received by the RD-700 to select Tones as shown in
the following table.
For details on the SRX Series, refer to the owner’s manual for
the SRX Series Wave Expansion Board.
MIDI IN
MIDI OUT
MIDI Sequencer
RD-700
Number
Bank Select Program Change
Number MSB LSB
1–100 85 0 1–100
Group Number
Bank Select Program
Change
Number
MSB LSB
PIANO 001 – 019 087 064 001 – 019
E.PIANO 020 – 039 087 065 001 – 020
CALV/
MALLET
040 – 059 087 066 001 – 020
ORGAN 060 – 089 087 067 001 – 030
STRINGS 090 – 109 087 068 001 – 020
PAD 110 – 129 087 069 001 – 020
GTR/
BASS
130 – 159 087 070 001 – 030
BRASS/
WINDS
160 – 179 087 071 001 – 020
VOICE/
SYNTH
180 – 199 087 072 001 – 020
Rhythm
Set
200 – 203 086 064 001 – 004
