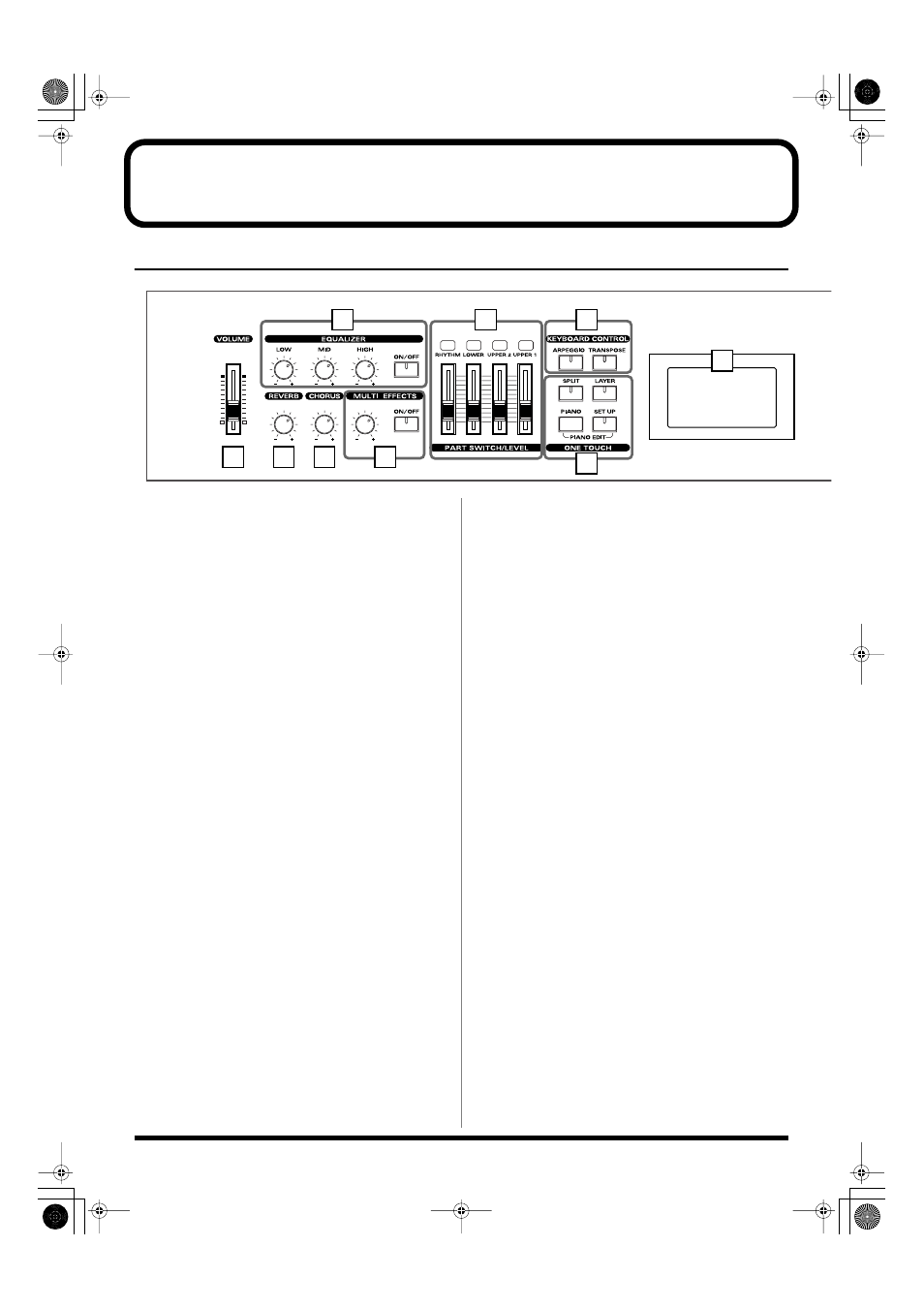

Panel Descriptions
Front Panel
1 VOLUME Slider
Adjusts the overall volume that is output from the rear panel
OUTPUT jacks and PHONES jack (p. 25).
2 EQUALIZER
[ON/OFF]
Turns the equalizer on/off (p. 48).
[LOW] knob
Adjusts the sound's low-frequency range.
[MID] knob
Adjusts the sound's midrange frequencies.
[HIGH] knob
Adjusts the sound's high-frequency range.
3 REVERB knob
Adjusts the amount of reverb (p. 47).
4 CHORUS knob
Adjusts the amount of chorus (p. 47).
5 MULTI EFFECTS
[CONTROL] knob
Adjusts the way that effects are applied (p. 53).
[ON/OFF]
Switches the multi-effects on/off (p. 53).
6 PART SWITCH/LEVEL
Turns each part's sound on and off (PART SWITCH), and
adjusts the volume level for each part (PART LEVEL slider)
(p. 45).
When [MIDI TX] is on, this controls each part for the external
MIDI sound generator (p. 62).
7 KEYBOARD CONTROL
[ARPEGGIO]
Switches Arpeggiator on/off (p. 49).
[TRANSPOSE]
Sets the range of the keyboard to transposed (p. 46).
8 ONE TOUCH
[SPLIT]
Puts the keyboard in “Split mode,” wherein you can use
more than one tone by having different tones play in
different parts of the keyboard (p. 43).
[LAYER]
Puts the keyboard in “Layer mode,” in which the keyboard
plays two tones simultaneously (p. 42).
[PIANO]
Selects the optimum settings for piano performances (p. 35).
[SETUP]
Calls up the stored settings (Setup) (p. 54).
Additionally, pressing [PIANO] and [SETUP]
simultaneously allows you to access more detailed piano
performance settings (PIANO EDIT) (p. 66).
