C HAPTER 9: S PECIFICATIONS 89
Connecting UTP Cables
Recommended UTP cables:
Category 5e UTP Cables: Belden DataTwist 350 UTP #1700A Solid
Belden DataTwist 350 patch #1752A Stranded
Category 6 UTP Cable: Belden MediaTwist #1872A Solid
Category 7 UTP Cable: Uninet #7702
Pin-out specifications for RJ45 connectors to Category 5e UTP cable:
• Paragon supports only T568A or T568B pin-outs

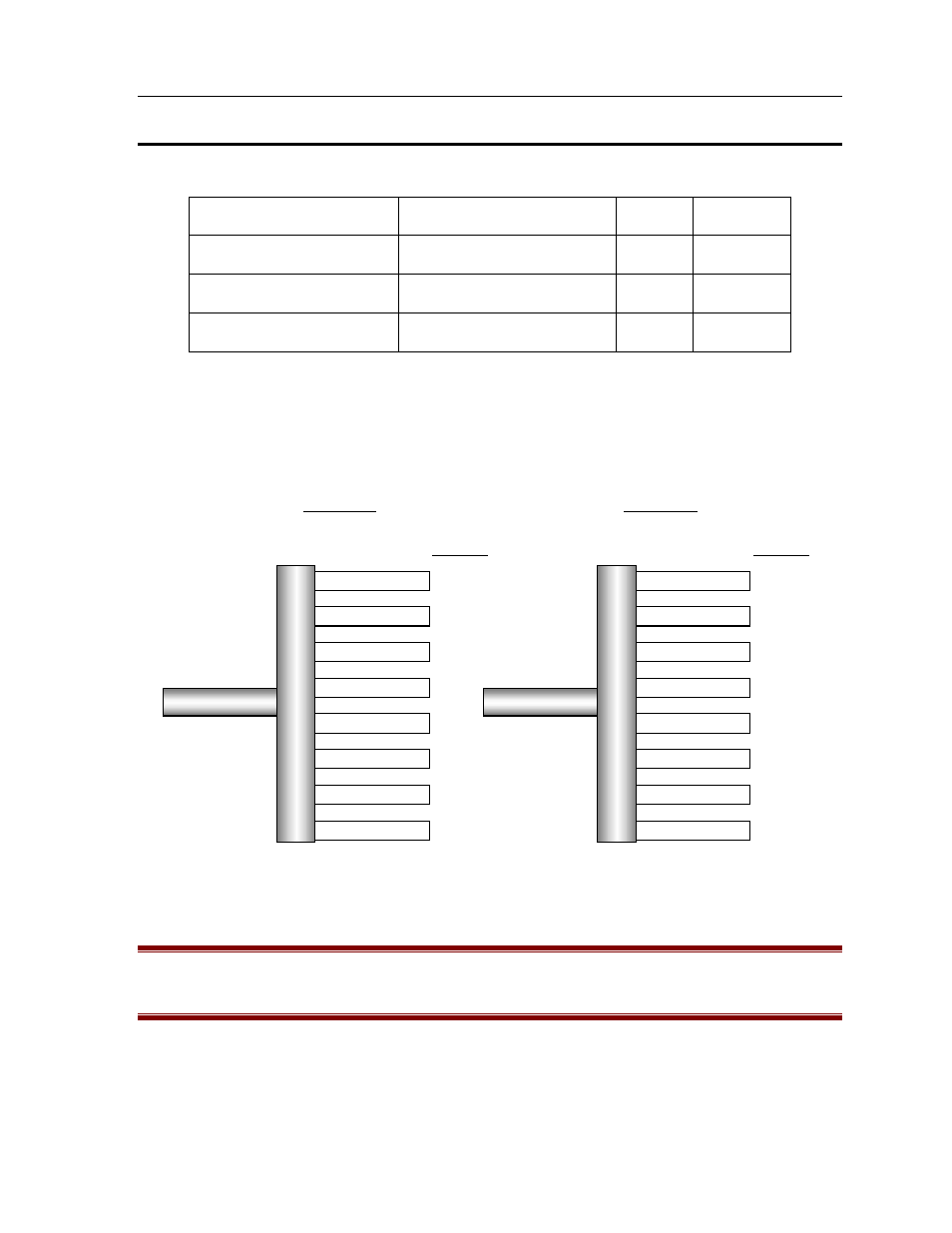

Figure 69 Paragon Category 5e UTP Cable Pin-out Requirements
Important: Maximum distance from user console to computer is 1,000 feet. When using
certified cable, users can transmit video signals at distances up to 1,000 feet at 1024x768
@75Hz; and up to 600 feet at 1600x1200 @75Hz.
Please see “UTP Cabling FAQs” on page 93 for more information.
Cat 5e Cable
R
J
4
5
C
O
N
N
E
C
T
O
R
White/Green
Green
White/Orange
Blue
White/Blue
Orange
White/Brown
Brown
Mod
Plug
Positions
1
2
3
4
5
6
7
8
T568A
Cat 5e Cable
R
J
4
5
C
O
N
N
E
C
T
O
R
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
Mod
Plug
Positions
1
2
3
4
5
6
7
8
T568B
