C HAPTER 6: O VERVIEW S OFTWARE 75
Perform Administrator Login:
This step requires administrator authorization to access UST1.
1. At the Login window, enter Administrator User Name and Password.
2. Click on the OK button.

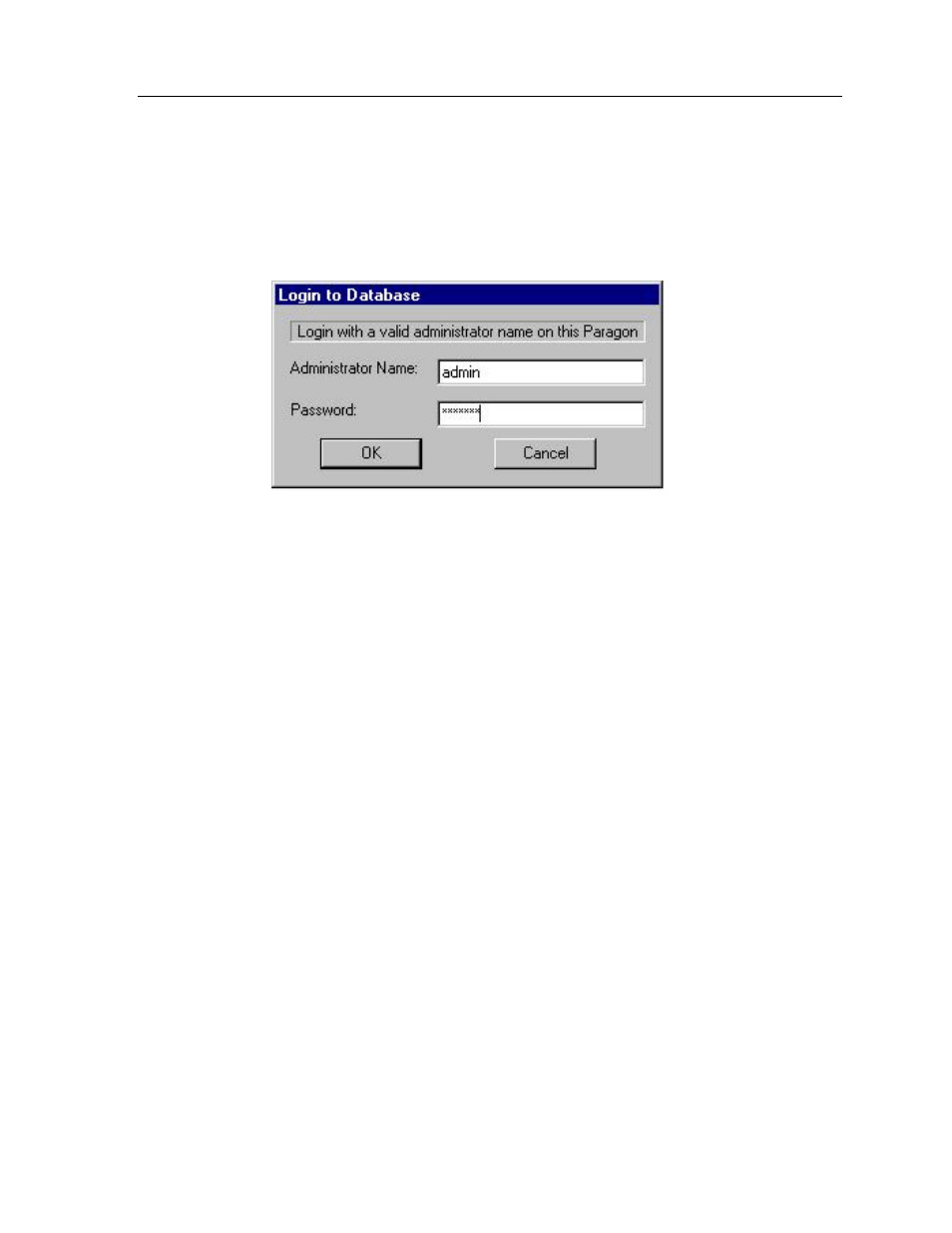

Figure 65 Overview Administrator Login Window
Connect to UST1 and Download Configuration:
This step downloads UST1’s configuration file for offline editing at the PC.
1. The Serial Number from the UST1 unit will be retrieved and displayed in an information
window. Click on the OK button to continue.
2. A copy of the configuration file will be downloaded from the UST1 to the PC. Maintenance
functions can now be performed. A status window displaying the message “Loading data from
Paragon” will display during download, and user station keyboard and mouse operation will be
temporarily suspended.
