56 P ARAGON A DMINISTRATOR ’ S I NSTALLATION AND O PERATION G UIDE
Paragon Switch Front Panel Display and Controls
The control buttons and LCD display on the Paragon switch provide systems management and
technical support functions. For most situations, there is no need to use the front panel beyond
viewing status.

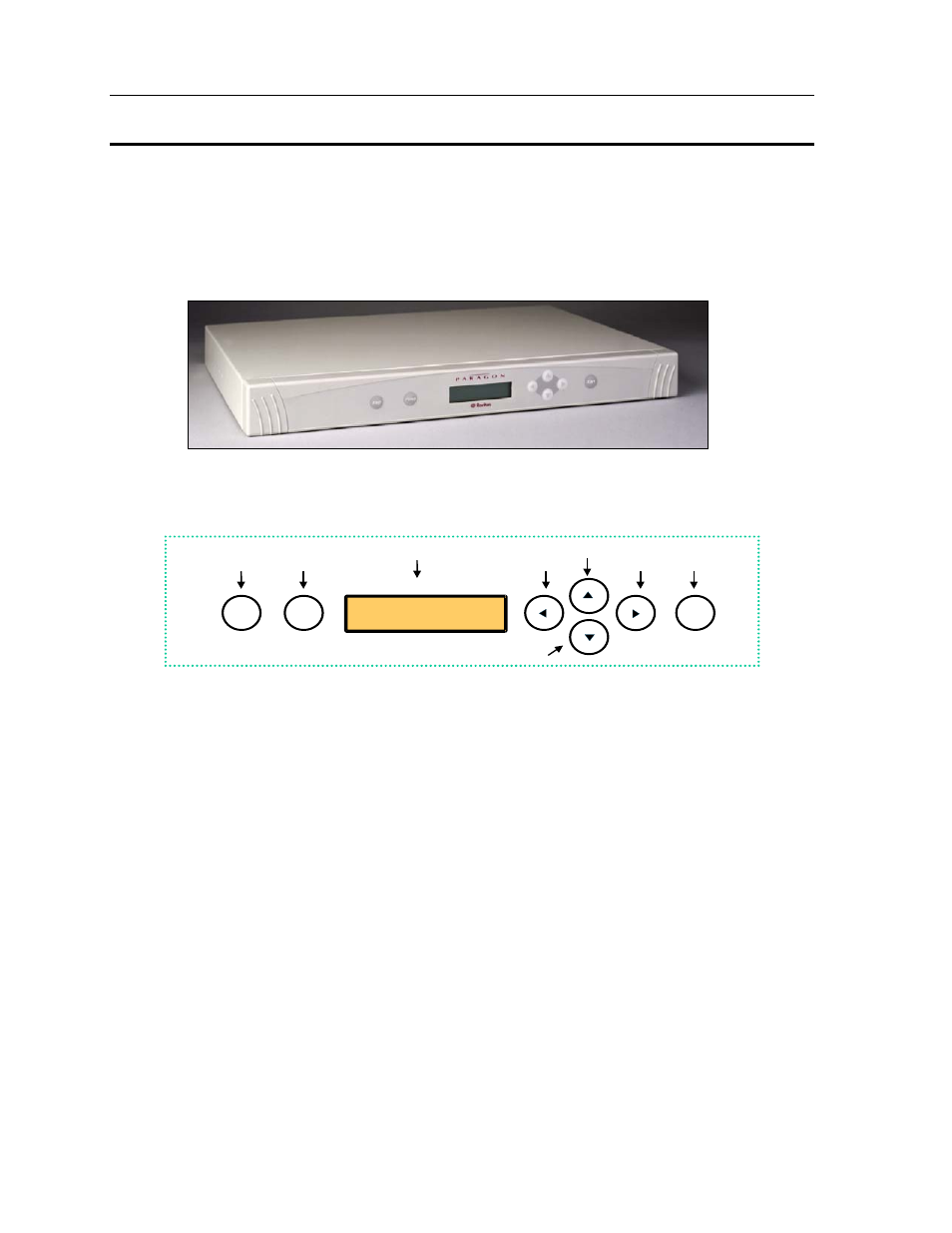

Figure 41 Paragon Switch Front Panel
A B D
F
G H
E
ENT
C
FUNC ESC
Figure 42 Paragon Switch Front Panel Buttons
Front Panel Components and Functions:
1. [ESC] button (A) is used for canceling displayed function and returning system to normal state.
2. [FUNC] button (B) is used to select various functions.
3. LCD (C) shows status of system and indicates functions that can be selected by pressing front
panel control buttons.
4. [], [ ], [], and [] buttons (D), (E), (F), and (G) are used for selecting or setting various
options, depending on function being performed.
5. [ENT] button (H) is used for confirming and executing selected function.
Start-Up Display:
When Paragon switch is powered on, it performs a start-up test. It checks each channel and user port
to ensure proper operation.
