2 P ARAGON A DMINISTRATOR ’ S I NSTALLATION AND O PERATION G UIDE
Paragon System Components
Paragon consists of three components: the Paragon Matrix Switching unit, the Computer Interface
Module (CIM), and the User Station (UST1), connected with Category 5e UTP cable.

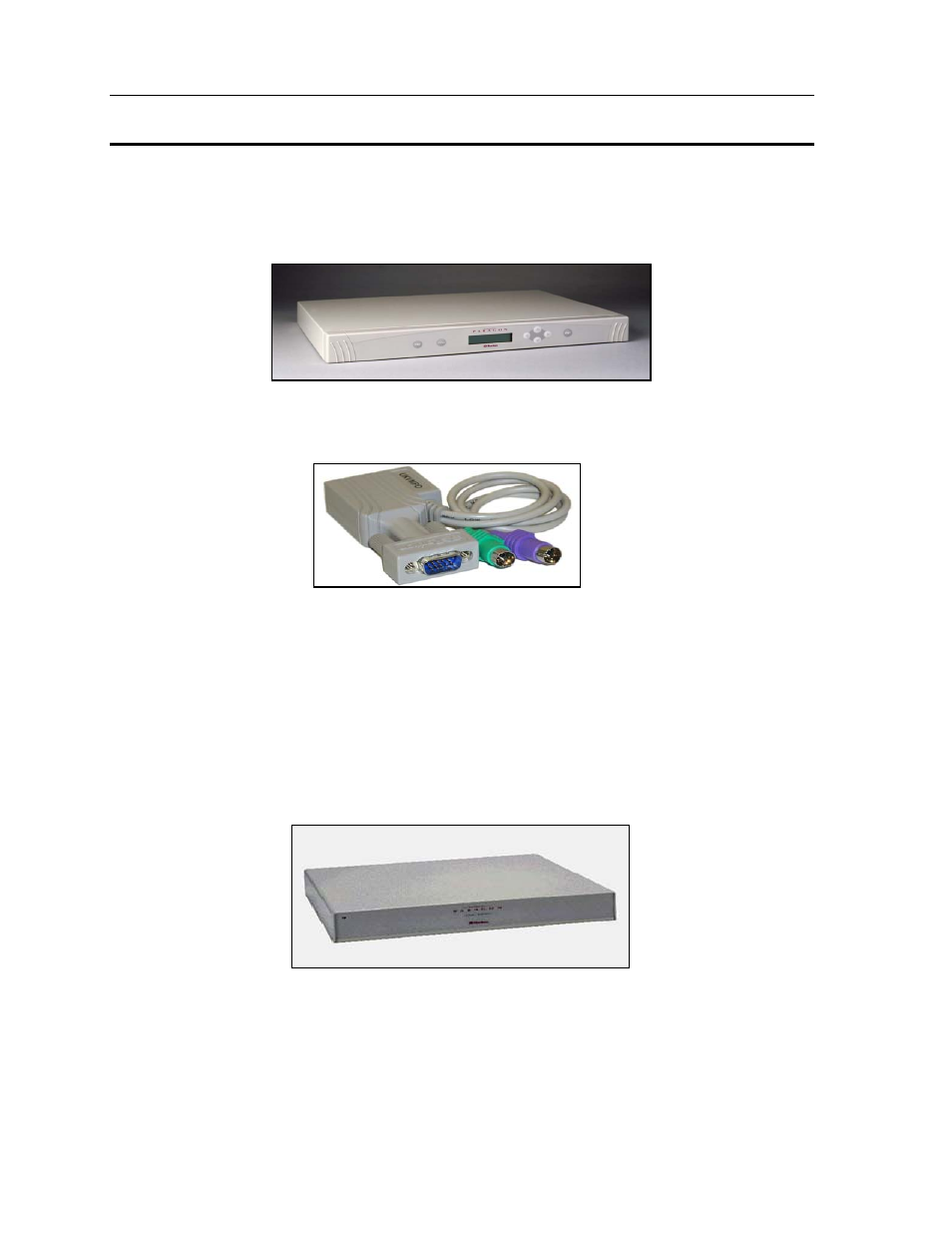

Figure 1 Paragon Matrix Switching Unit
Figure 2 Computer Interface Module (CIM)
• Located at each computer
• Contains transmitter for Category 5e signals and
programmable ID memory for auto-configuration
• Please refer to “Specifications” on page 85 for a complete
description of Computer Interface Modules (CIMs)
Figure 3 UST1 User Station
• Local user console
• Connections for User Console keyboard, monitor, and mouse
• RJ45 connection to Paragon Matrix Switch
