C HAPTER 2: I NSTALLATION 37
Expanded Installation Options
HubPac
The Paragon HubPac, part number HUBPAC8-RK, expands user access capability to a maximum
of 32 users. Each HubPac is capable of connecting 8 servers to 4 Paragon Matrix Switch units.
CIM models capable of connecting to a HubPac include:
• UKVMC
• UKVMP
• UKVMPD
• USKVMC
• USKVMP
• USKVMPD

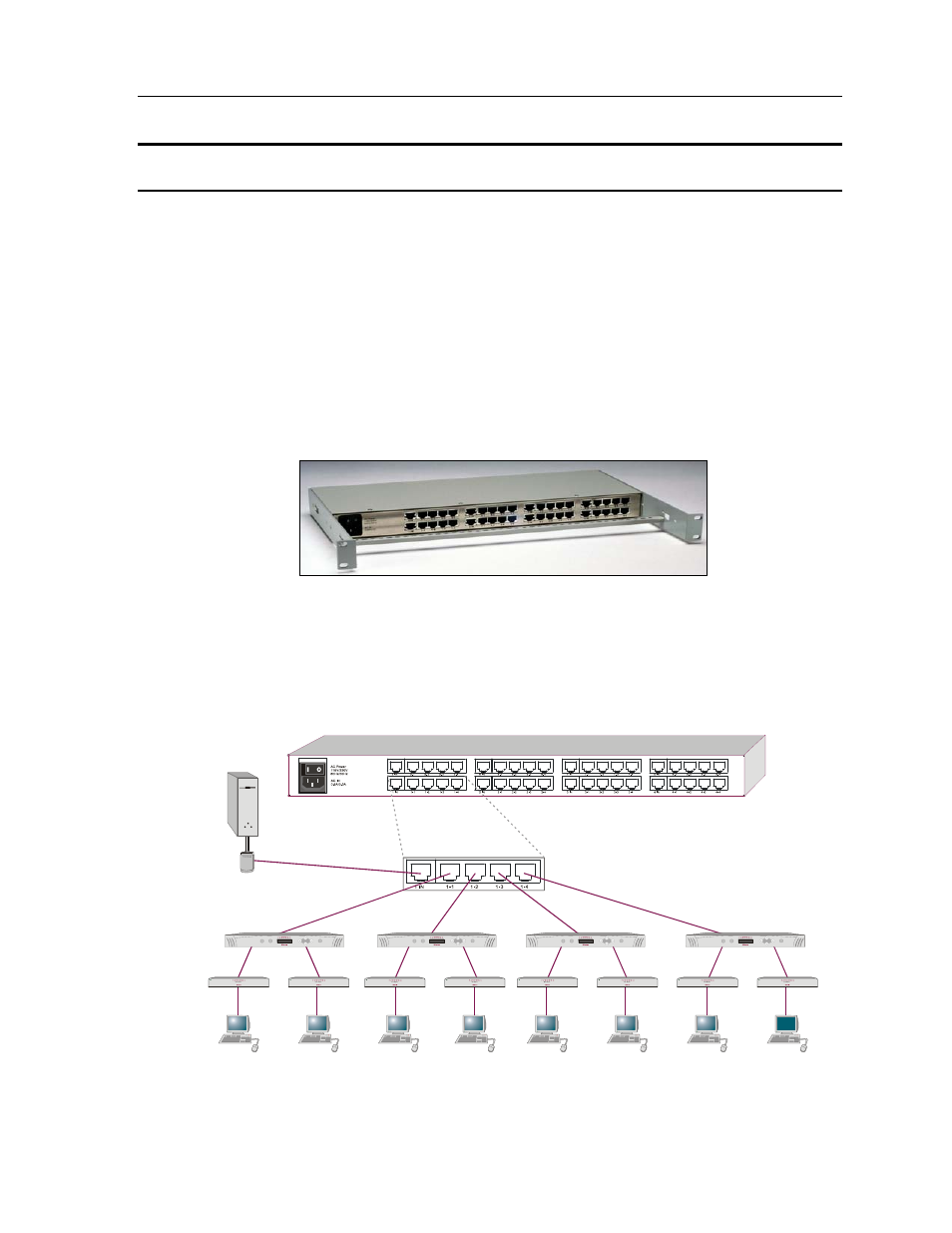

Figure 26 Paragon HubPac
Installing a HubPac
The Basic Installation instructions that follow will assist you in creating a 32 user Paragon
Matrix Switching configuration.
Figure 27 Diagram of Sample Installation for HubPac
(1-8)
ENT FUNC ESC ENT FUNC ESC ENT FUNC ESC ENT FUNC ESC
(1-8) (1-8) (1-8)
(Users 1-8) (Users 9-16) (Users 17-24) (Users 25-32)
Up to 32 Users Per Server
Back of Hub Pac
On Off
Server
UKVMP
Cat 5e Cable
UMT8
USTI
Cat 5e Cable
Cat 5e Cable
Connecting A Paragon UMT8 to a Hub-Pac
