Raritan Computer Paragon switch - Manual (Page 82)

74 P ARAGON A DMINISTRATOR ’ S I NSTALLATION AND O PERATION G UIDE
Operating Overview Software
Start Program:
1. Insert Overview software diskette into floppy disk drive.
2. Using Windows Explorer, locate and double-click on the Overview.exe file on the diskette.
3. The Overview program window will open.

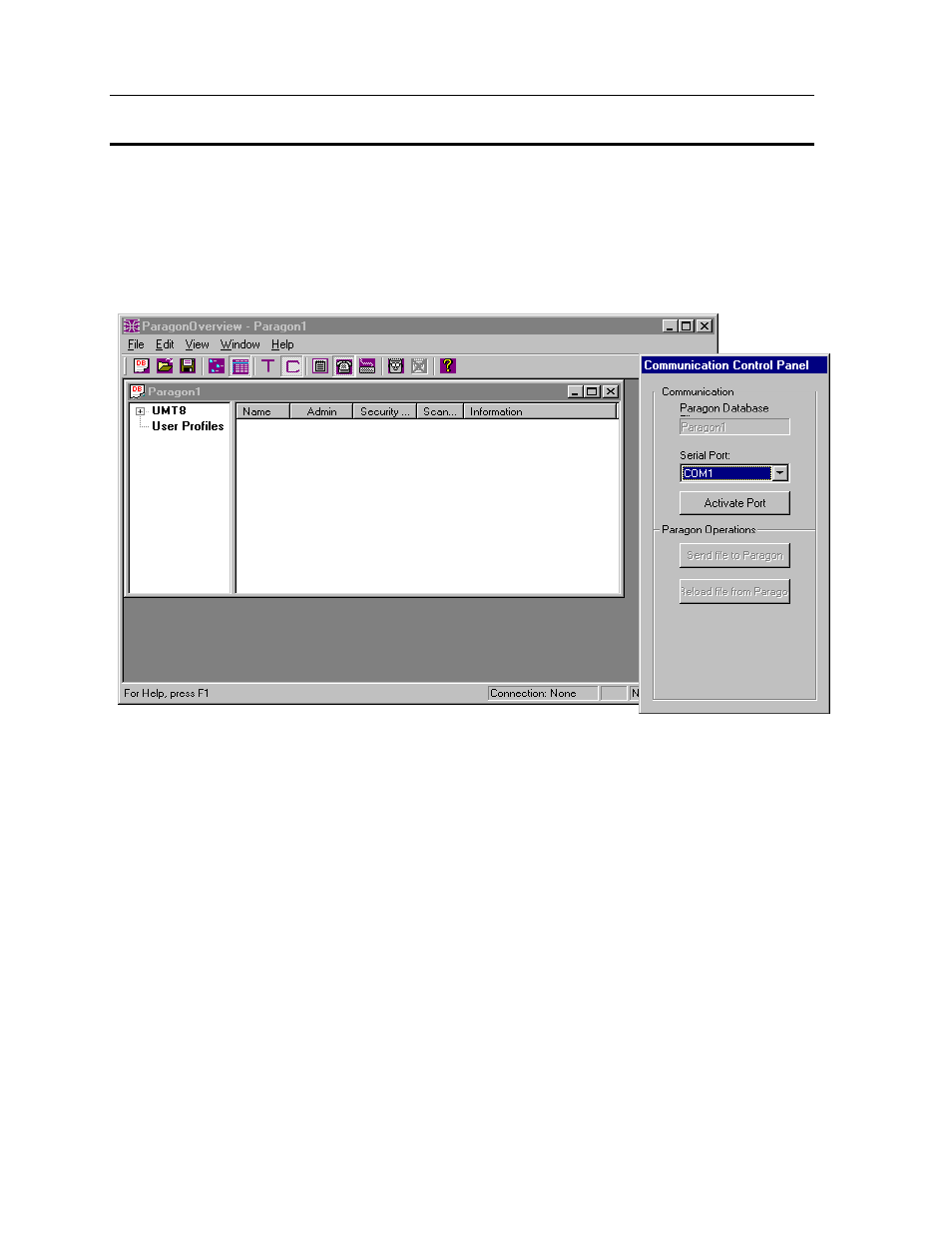

Figure 64 Overview Program Window
and Communication Control Panel
Activate PC Communication and Login:
1. Click on the Activate Port button on the Communication Control Panel.
2. Select the COM port to which the DB9 serial cable is installed (default is COM1).
3. The program initiates communication with UST1.
