44 P ARAGON A DMINISTRATOR ’ S I NSTALLATION AND O PERATION G UIDE
Forward Mount Installation

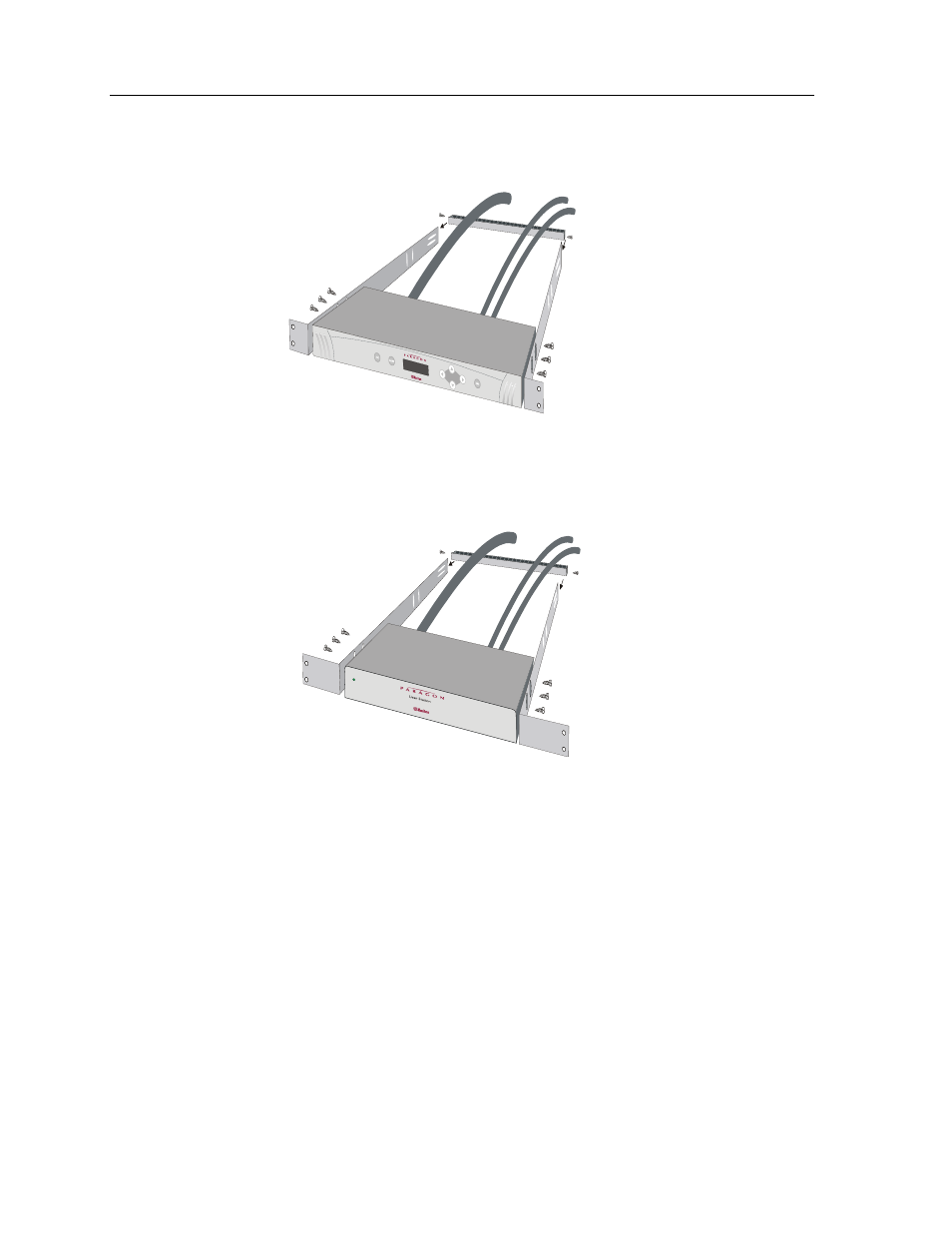

Figure 30 Forward Mount of Paragon Matrix Switch – Rack p/n RUMT-1U
Figure 31 Forward Mount of Paragon User Station (UST1) Switch – Rack p/n RUST-1U
Forward Mount Installation:
1. Secure cable support bar to the rear of each side bracket, opposite from the rack mount tabs.
2. Slide Paragon Matrix Switch or User Station (UST1) between the two side brackets, at the front
end near the rack mount tabs. The front of the Paragon Matrix Switch or User Station (UST1)
should be flush with the front of the side brackets at the rack mount tabs.
3. Secure the Paragon Matrix Switch or User Station (UST1) to side rack mount brackets with three
screws on each side.
4. Secure the entire assembly to the rack at rack mount tabs.
5. Drape cables over the cable support bar.
1.
1.
2.
3.
3.
4.
4.
5.
UST1
1.
1.
2.
3.
3. 4.
4.
5.
UMT8
