Install the Linux base software on the IBM x306m and HP DL320 G4 servers
41
DL320 G4 server.
Figure 123 "IBM x306m rear view" (page
shows the ELAN and TLAN network interfaces for the
IBM x306m server. For a definition of ELAN and TLAN see
“Network configuration” (page 143)
.
Note 2: You can accept the default gateway values or choose
a value that is more appropriate to your needs. The choice of
ELAN or TLAN as the default gateway NIC can be influenced
by the applications that you are going to deploy on the server
and by your network topology. For a definition of ELAN
and TLAN see
“Network configuration” (page 143)
.It is not
necessary to make changes to the default gateway during the
installation. After the installation, the default gateway NIC can
be changed by using the CLI commands
baseparamsconfig
or
networkconfig
. Routing entries can be added or deleted
by using the CLI command
routeconfig
. For a list of Nortel
Linux base CLI commands see
Press Enter to continue. The Configuration Validation 1
screen appears as shown in
Figure 23 "Configuration validation
10

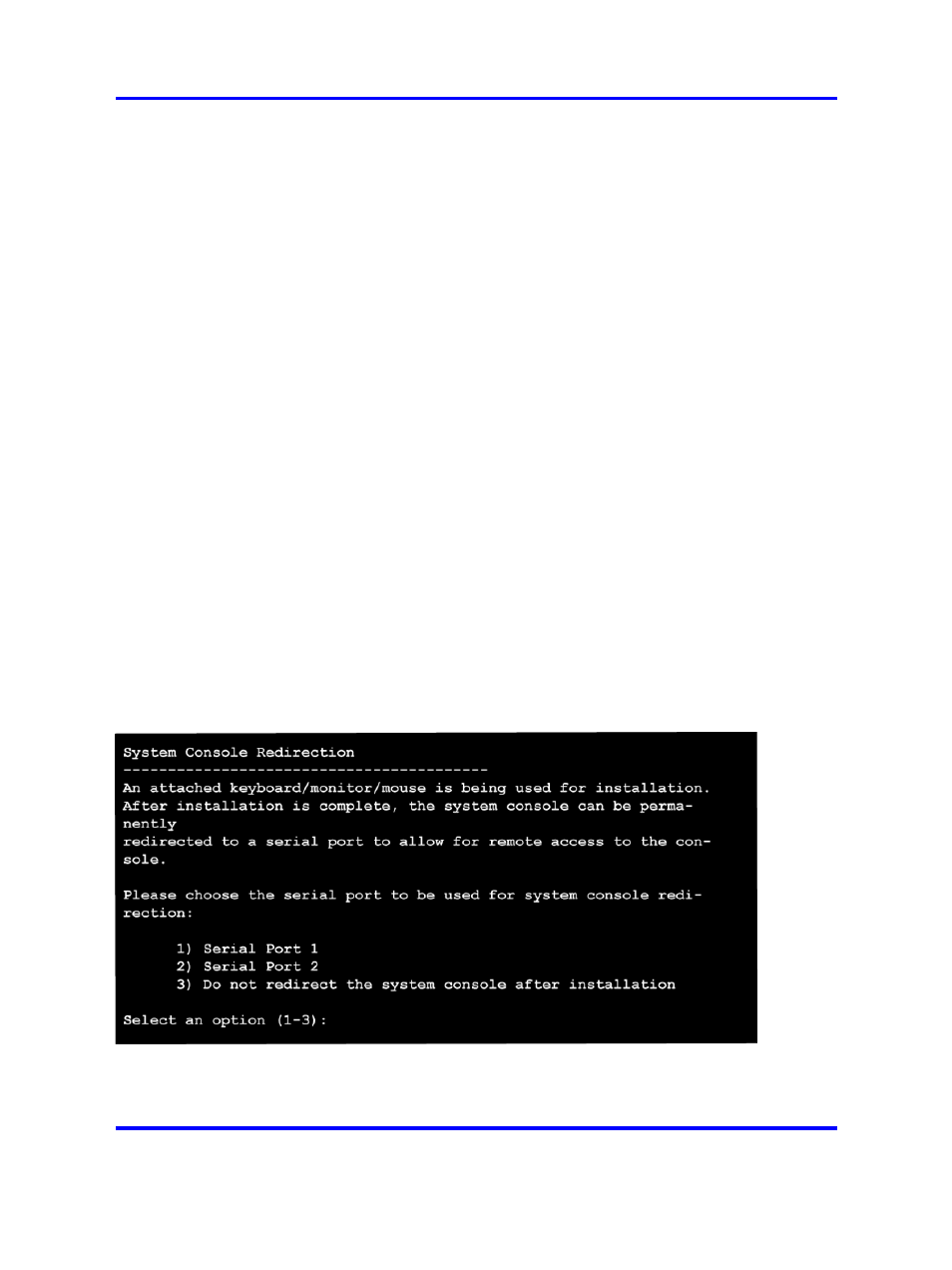

In the System Console Redirection screen appears as shown
in
Figure 20 "System Console Redirection window" (page 41)
.
Select the redirection option and press Enter to continue.
Note: This screen appears only if you chose to install using
an attached keyboard, video monitor, and mouse.
Figure 20
System Console Redirection window
11
In the Time zone selection screen type the appropriate region
number at the prompt and then press Enter to continue.
