IBM x306m server

133

Table 7
IBM x306m LED description and status

Description

Status

Power LED

If this LED is lit, it indicates that the server is
turned on.
If this LED is off, it indicates that AC power is
not present, or the power supply or the LED
itself failed.

Hard disk LED

If this LED is lit, it indicates that a hard disk
drive is in use.

Locator LEDIf

When this LED is lit, it is lit remotely by the
system administrator to aid in visually locating
the server.

System Error LED

If this LED is lit, it indicates that a system error
occurred.

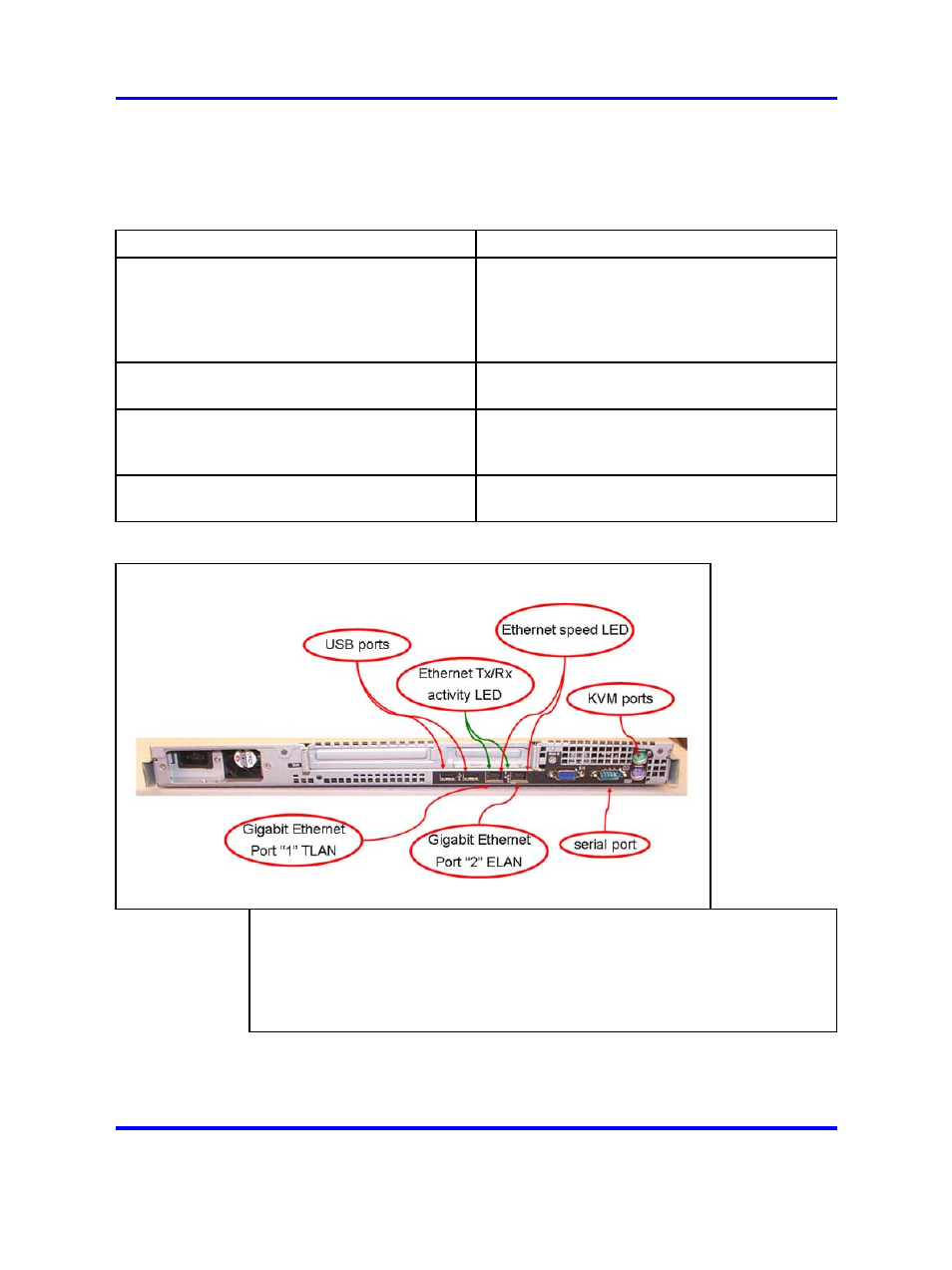

Figure 123
IBM x306m rear view

ATTENTION

The TLAN & ELAN port positions are reversed (L and R, 1 and 2) compared to
the HP DL320 server.Ethernet speed LED:

•

Lit indicates Ethernet network speed of 1 Gbps.

•

Off indicates Ethernet network speed is 10/100 Mbps.
