Replacing The Photoreceptor Drum
61
CAUTION
Failure to perform Step 5 will damage the photoreceptor drum.
5.

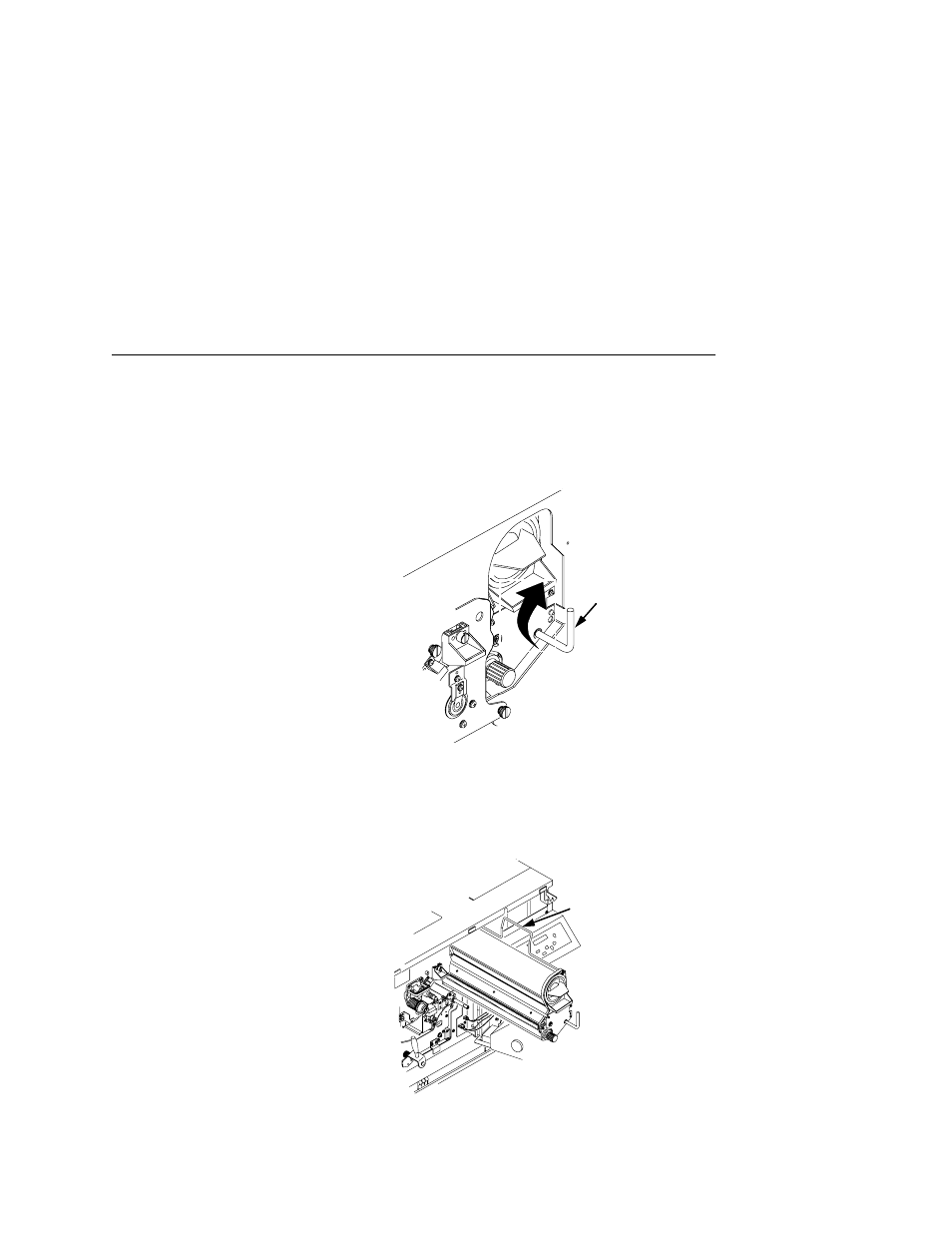

Rotate the developing unit lever fully clockwise so that it is
pointing straight up (to separate the developing unit from the
photoreceptor drum).
Legend:
1)
Lever
6.
Remove the developing unit by holding the lever in one hand
and pulling the developing unit partially out of the printer.
Legend:
1)
Hanger
1
1
