Paper Jam In The Transport Input Section
141
CAUTION The transfer charger must be in the down position to avoid
scratching the drum. Failure to perform steps 3 and 4 will
damage the drum.
3. Check that the transfer charger is in the down position, and if
not, move it to the down position by rotating the transfer
elevator drive shaft counterclockwise. Watch the charger
movement:
a. If the charger starts to move up, it is already in the down
position.
b. If the charger starts to move down, continue to rotate the
drive shaft until the charger reaches the complete down
position.

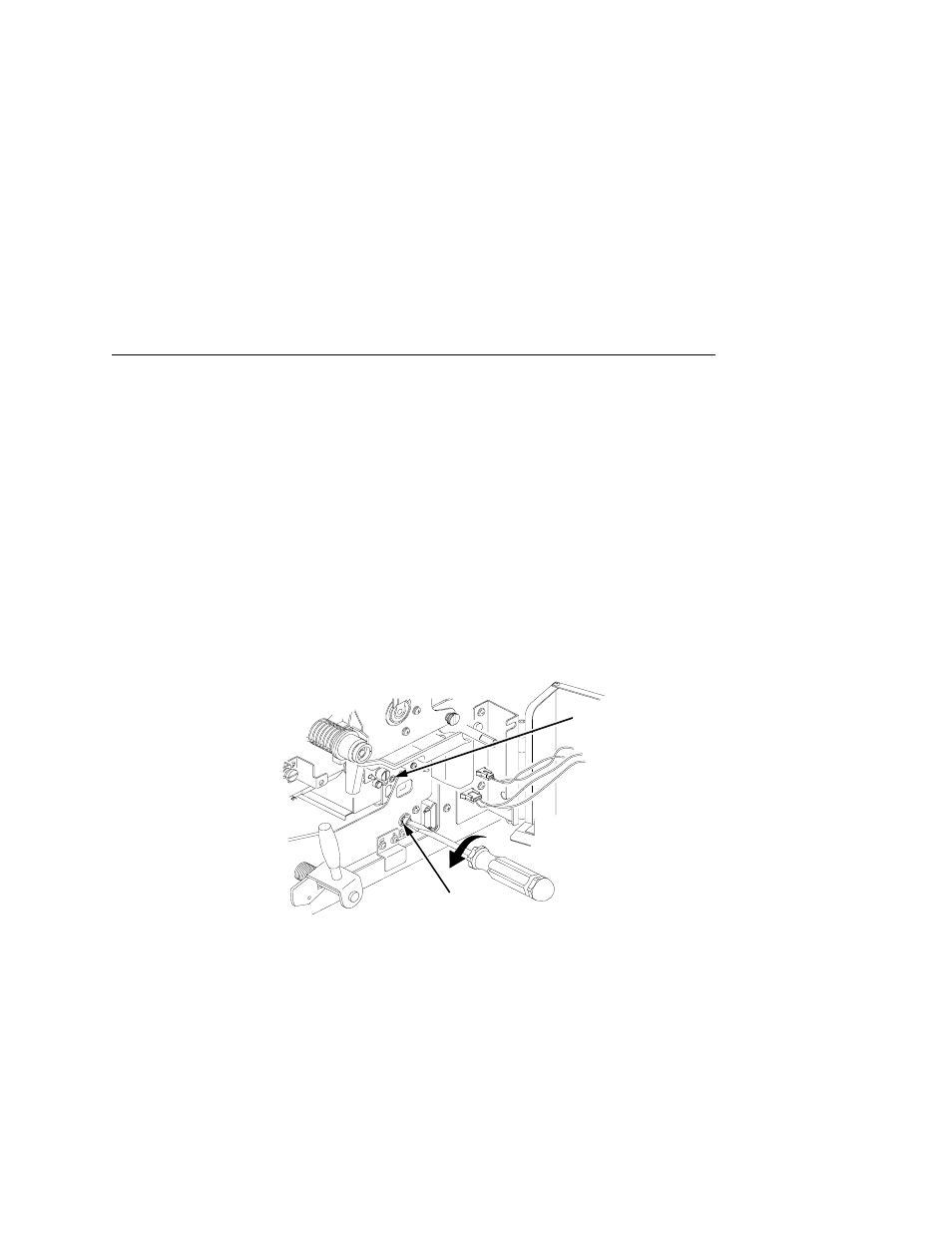

Legend:
1) Transfer Charger
2) Transfer Elevator Drive Shaft
1
2
