Chapter 4 General Cleaning
106

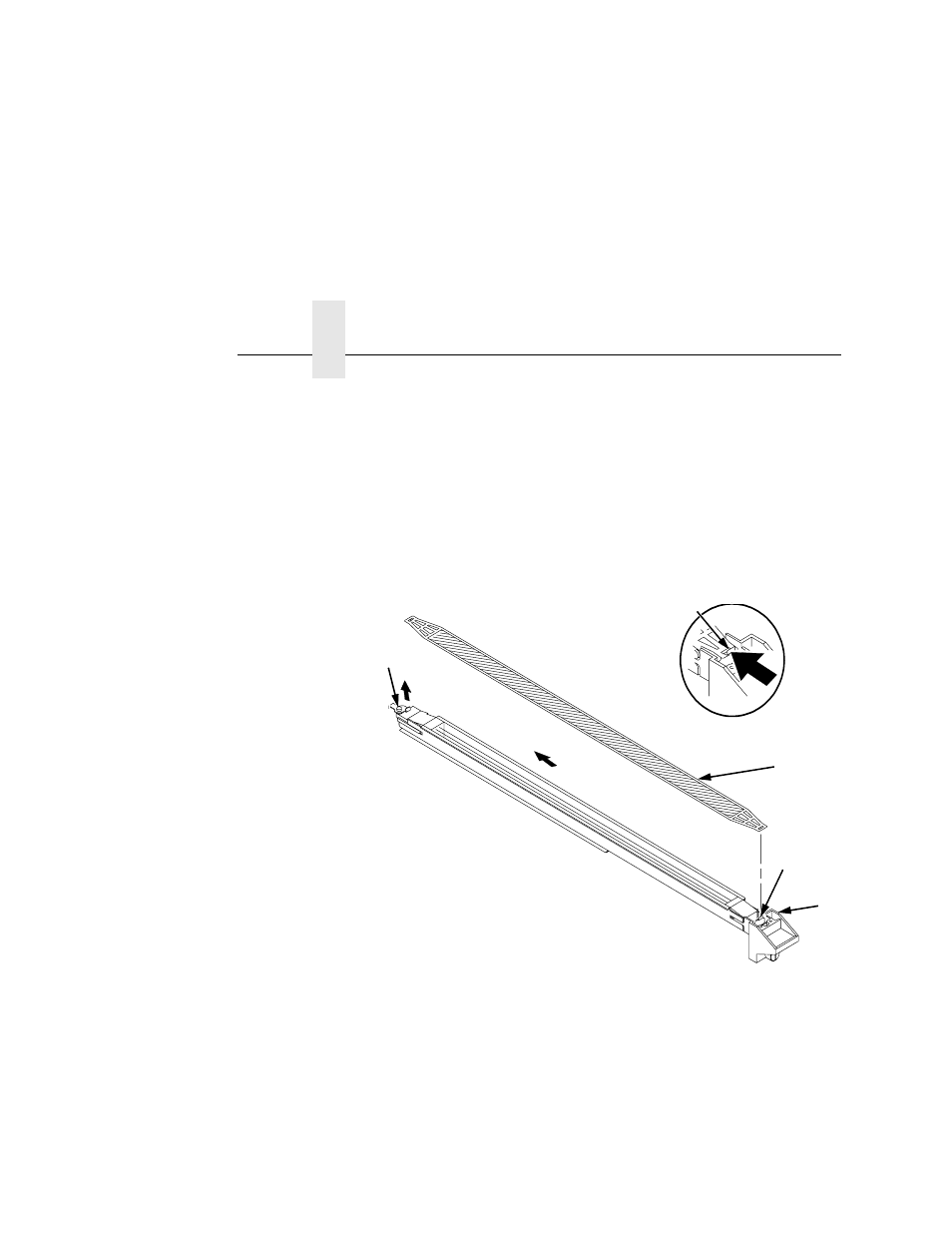

6. Position the main charger with the charger grid up and the front
of the charger toward you, as shown in the figure below. Refer
to the inset drawing in the figure and remove the charger grid
from the main charger as follows:
a. While pressing the front retaining tab toward the rear of the
charger, unhook the rear end of the charger grid from the
rear retaining tab.
b. Release the front retaining tab, then remove the charger
grid from it.
Legend:
1) Rear Retaining Tab
2) Front Retaining Tab (See Inset Drawing)
3) Charger Grid
4) Front Retaining Tab
5) Main Charger
2
3
4
5
Rear End
of Charger
Front End
of Charger
I nset Drawing
1
