Loading Fanfold Paper

29

3.

Pass the leading edge of the paper between the lower paper
guides, as shown in the illustration below.

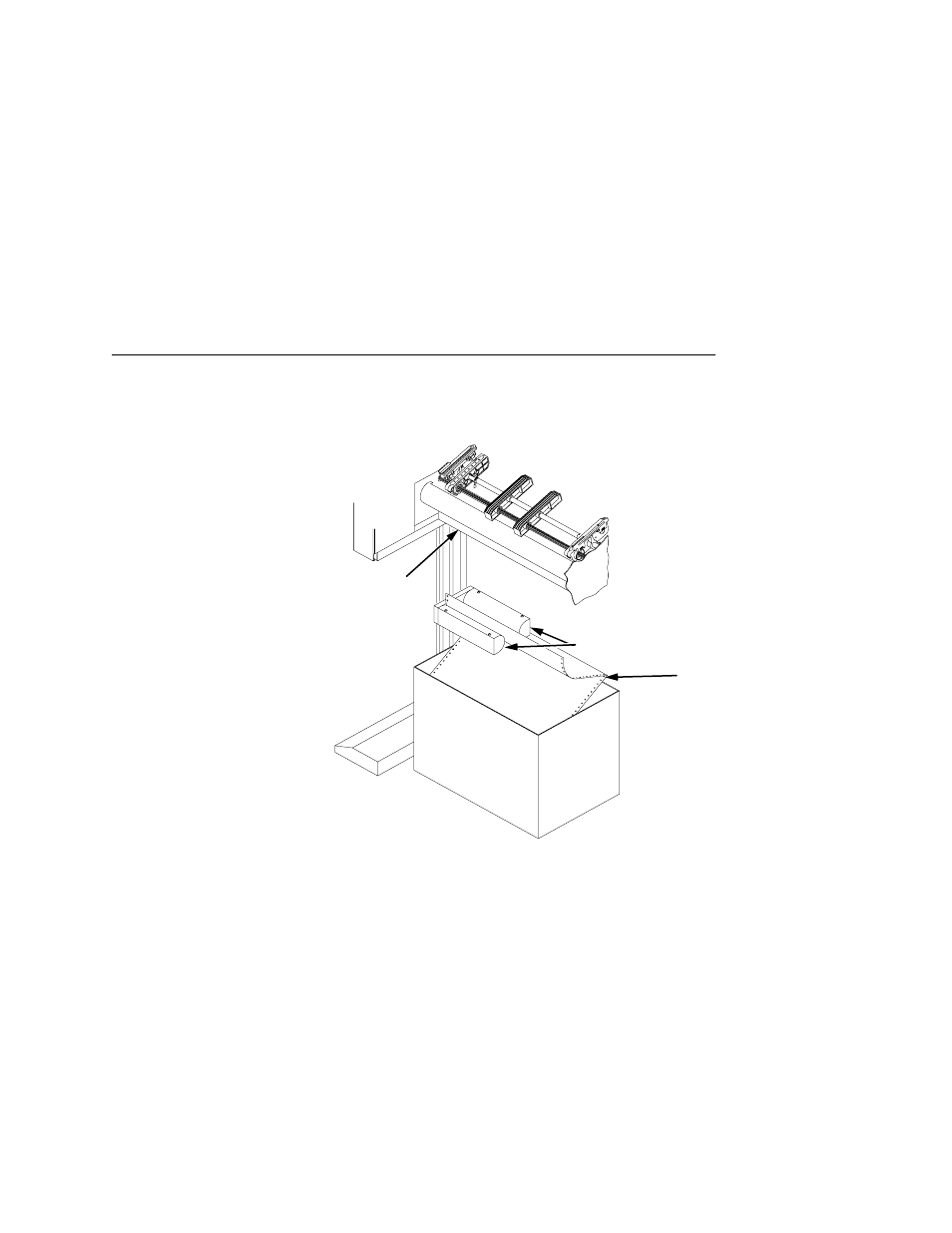

Legend:

1)

Tractor Unit

2)

Lower Paper Guides

3)

First paper fold is toward printer.

IMPORTANT

To prevent jams, place the first fold of the paper facing toward
the printer as shown.

4.

Unlock only the right tractor by pushing forward on the tractor
lock.

5.

Open the left and right tractor gates and place the paper about
half-way onto the tractor pins.

IMPORTANT

Do not push the paper past the tractors into the area of the
paper jam sensor.

6.

Close the left tractor gate.

1

2

3
