Adjusting Input Levels
m40L/m46L Installation & Configuration Guide 31
6 If you have more than one source coming through the same connector, adjust
input levels for each source.
Adjusting Levels for Video Sources
Video sources are best adjusted if a color bar test pattern is available from the video
source: the DVD or VCR player. If you do not have access to a color bar test pattern,
you will have to adjust the picture by eye from the video source using the
INPUT
LEVELS menu.
Note: When a video source is selected, Auto Setup Options are not available. Adjustments
must be made manually.
Adjusting the Picture With Color Bars
1 Select a source in the PICTURE menu.
2 To access the INPUT LEVELS menu, press LEVEL on the remote.
Note: These controls are also used for analog sources when you select component video.
3 If possible, use a SMPTE color bar pattern from the video source you will use for
the program material.
4 In the INPUT LEVELS menu, check BLUE ONLY . You should only see the alternate
color bars, all of them blue.
5 Adjust SATURATION to make the outer two color bars match. Match them in
brightness; they will already match in color.
6 Adjust HUE to make the inner two color bars match.
7 Uncheck BLUE ONLY .

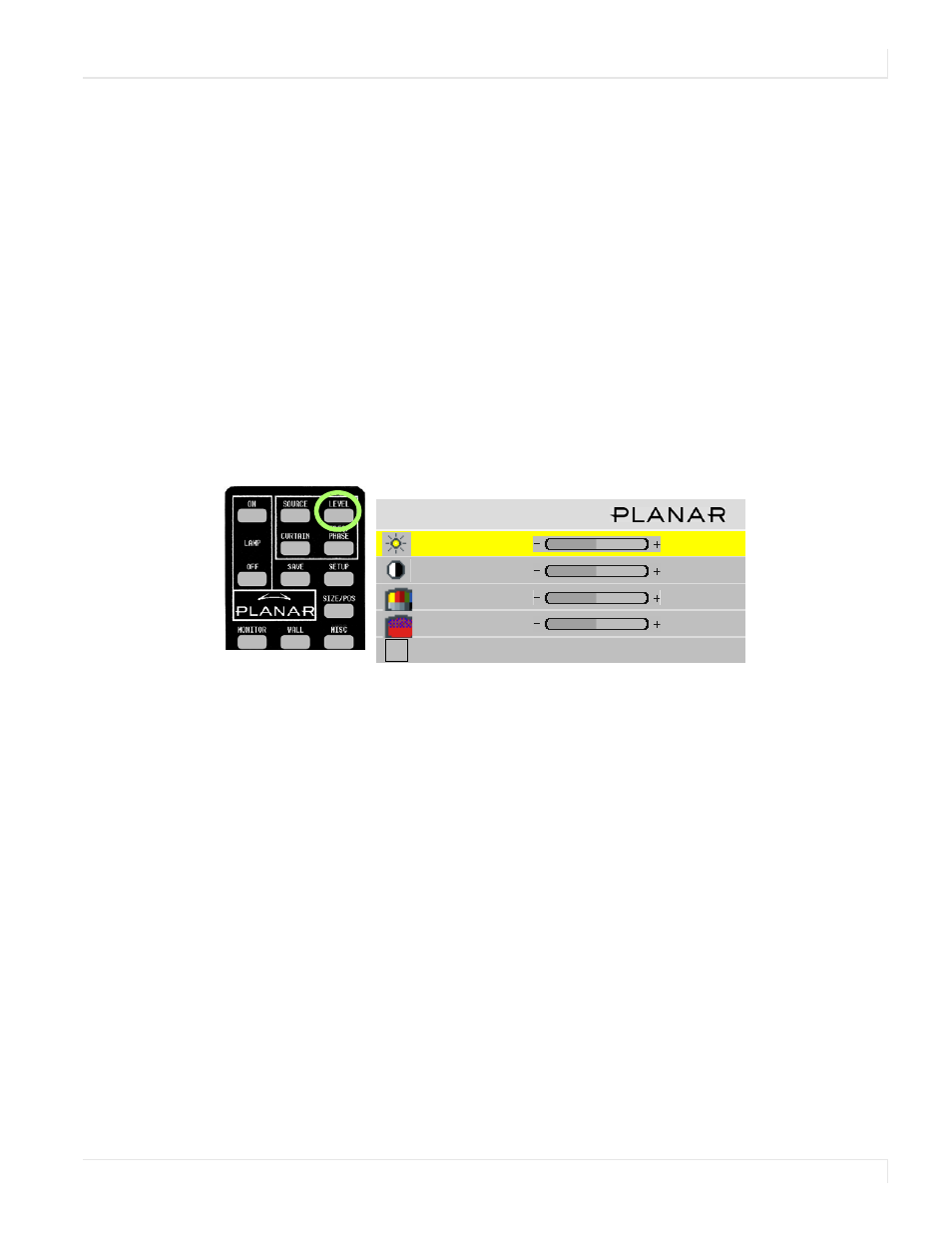

I n p u t L e v e l s
B r i g h t n e s s 1 4 0
C o n t r a s t 1 6 5
S a t u r a t i o n 1 5 0
H u e 1 2 8
B l u e O n l y
