Adjusting Input Levels
28
m40L/m46L Installation & Configuration Guide
2

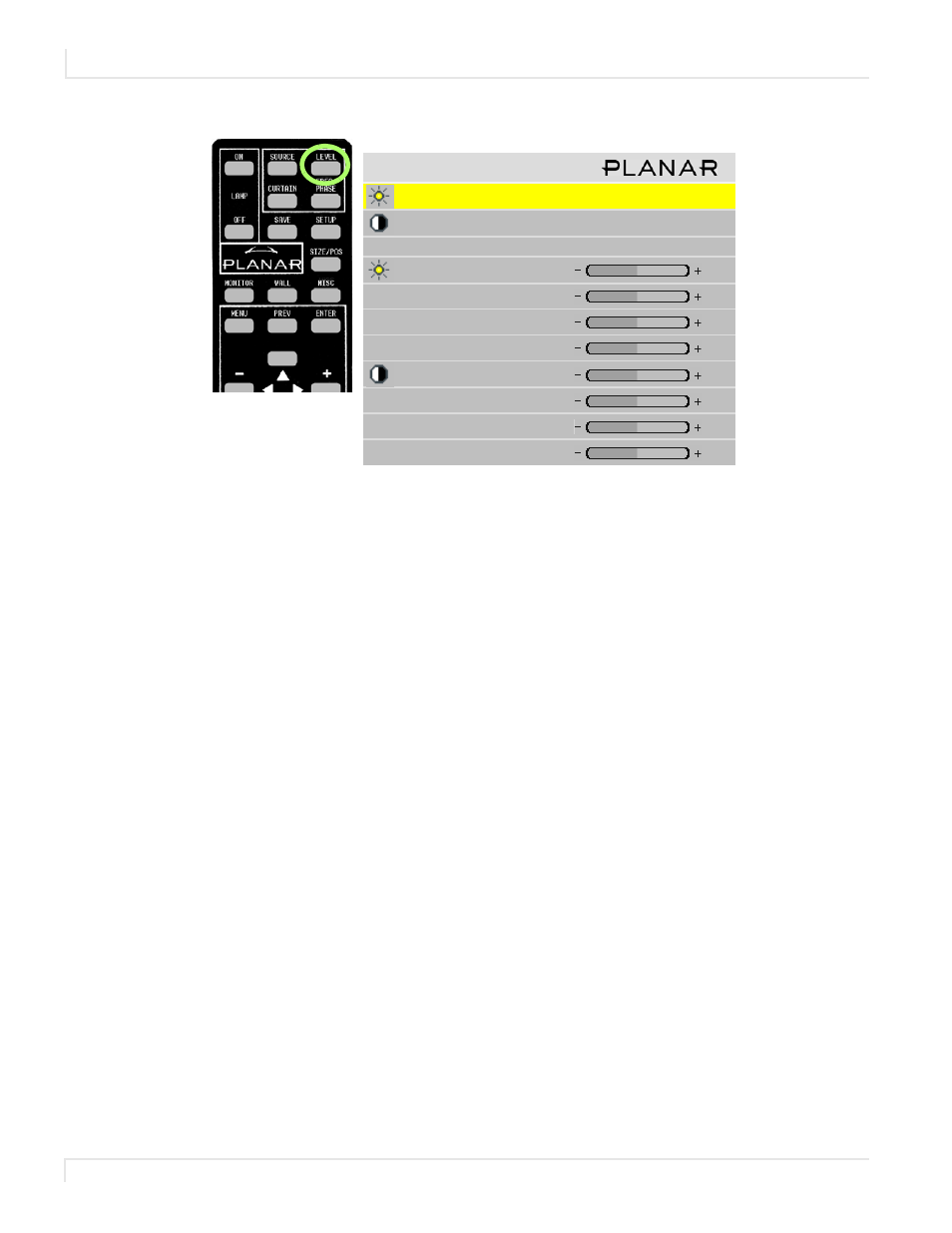

To access the
INPUT
LEVELS
menu, press
LEVEL
on the remote.
3
From the computer source, display an all-black picture. This must come from the
computer source that will be used for the program. We suggest you display a black
screen using the Windows Paint program.
Note:
Black Level must be done before White Level.
4
In the
INPUT
LEVELS
menu, select
AUTO
BLACK
LEVEL
and press
ENTER
. This menu
line says “Working…” until the process is complete.
Note:
When doing Auto Black and Auto White with an interlaced analog input, the color of
the picture will change while it is working and then will change back to normal.
5
From the computer source, display an all-white picture.
6
In the
INPUT
LEVELS
menu select
AUTO
WHITE
LEVEL
and press
ENTER
. Wait for
“Working…” to disappear.
The display is now adjusted to the black and white levels of this computer using
this video card. If you change computers or video output cards in the computer,
you must do this again.
7
Although it is not required, we recommend that you save the configuration to a
memory slot. (See "Saving Configurations" on page 82.)
8
If you have more than one source coming through the same connector, adjust
Input Levels for each source.
I n p u t L e v e l s
A u t o B l a c k L e v e l ( o f f s e t )
A u t o W h i t e L e v e l ( g a i n )
C e n t e r P o i n t
6 4
1 2 4
9 9
B l a c k L e v e l ( o f f s e t ) - A l l
7 9
R e d
8 9
G r e e n
6 7
B l u e
8 3
W h i t e L e v e l ( g a i n ) - A l l
9 9
R e d
9 9
G r e e n
9 9
B l u e
9 9
