Cover, front left removal – Lexmark 5056 User Manual
Page 9
4-8
Service Manual
5056-XXX
8.

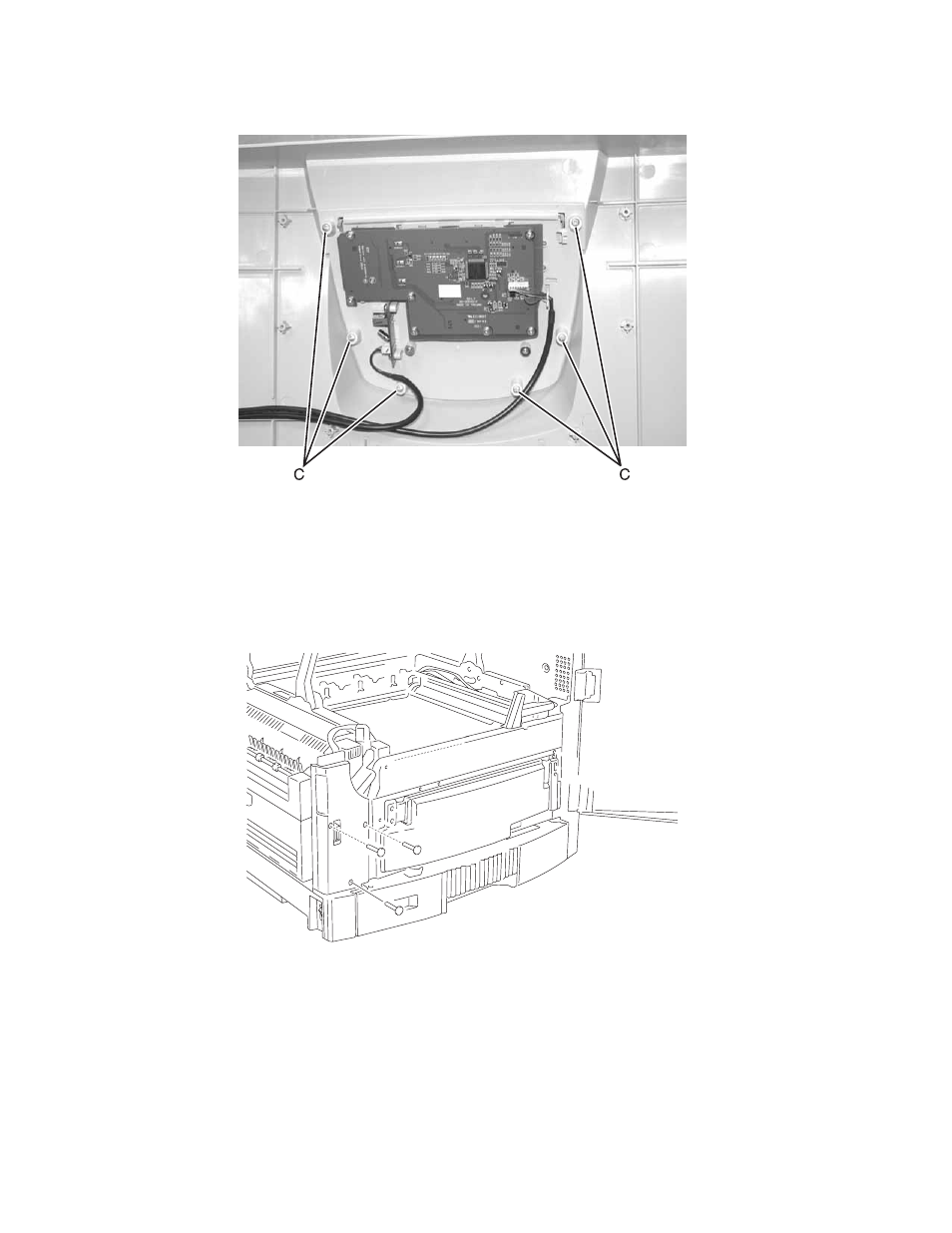

Remove six screws (C) that hold the operator panel to the front door.
9.
Remove the operator panel from the door.
Note:
If the USB cable or the operator panel cable is being replaced, use the toroids from the old cables with
the new cables.
Cover, front left removal
1.
Open the front cover and remove the cassette.
2.
Remove the left front cover by removing the three silver screws.
