Hcf pickup solenoid removal – Lexmark 5056 User Manual
Page 60

Repair information
4-59
5056-XXX

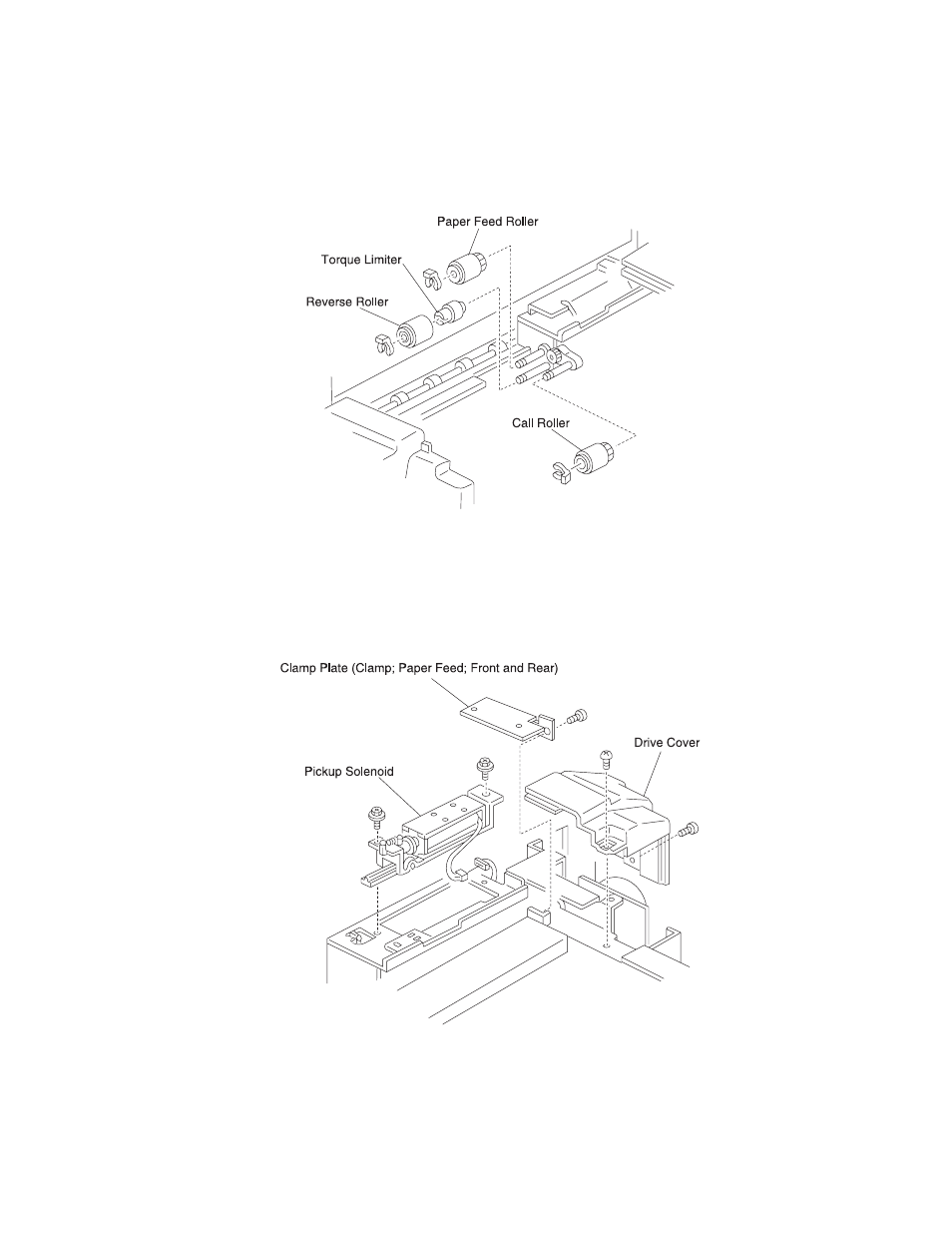

HCF call roller, paper feed roller, reverse roller removal
1.
Open the top cover on the tray.
2.
Remove the two screws from the transfer cover, and remove the cover.
3.
Remove the retaining rings on the rollers, and remove the rollers.
HCF pickup solenoid removal
1.
Remove the four screws from the transfer cover, and remove the cover.
2.
Remove the two screws from the drive cover, and remove the cover.
3.
Remove the screw from the clamp plate, and remove the plate.
4.
Remove the connector and the two screws from the pickup solenoid, and remove the solenoid.
