Repair information
4-29
5056-XXX
Paper carrying frame removal / roll removal
1.
Open the top unit, and remove the upper cassette, front cover, turn guide, multipurpose feeder, right side
cover, turn guide, OHP detection sensor (upper), multipurpose feeder frame, back cover, RIP cover, RIP
board, RIP box, and electronic box.
2.

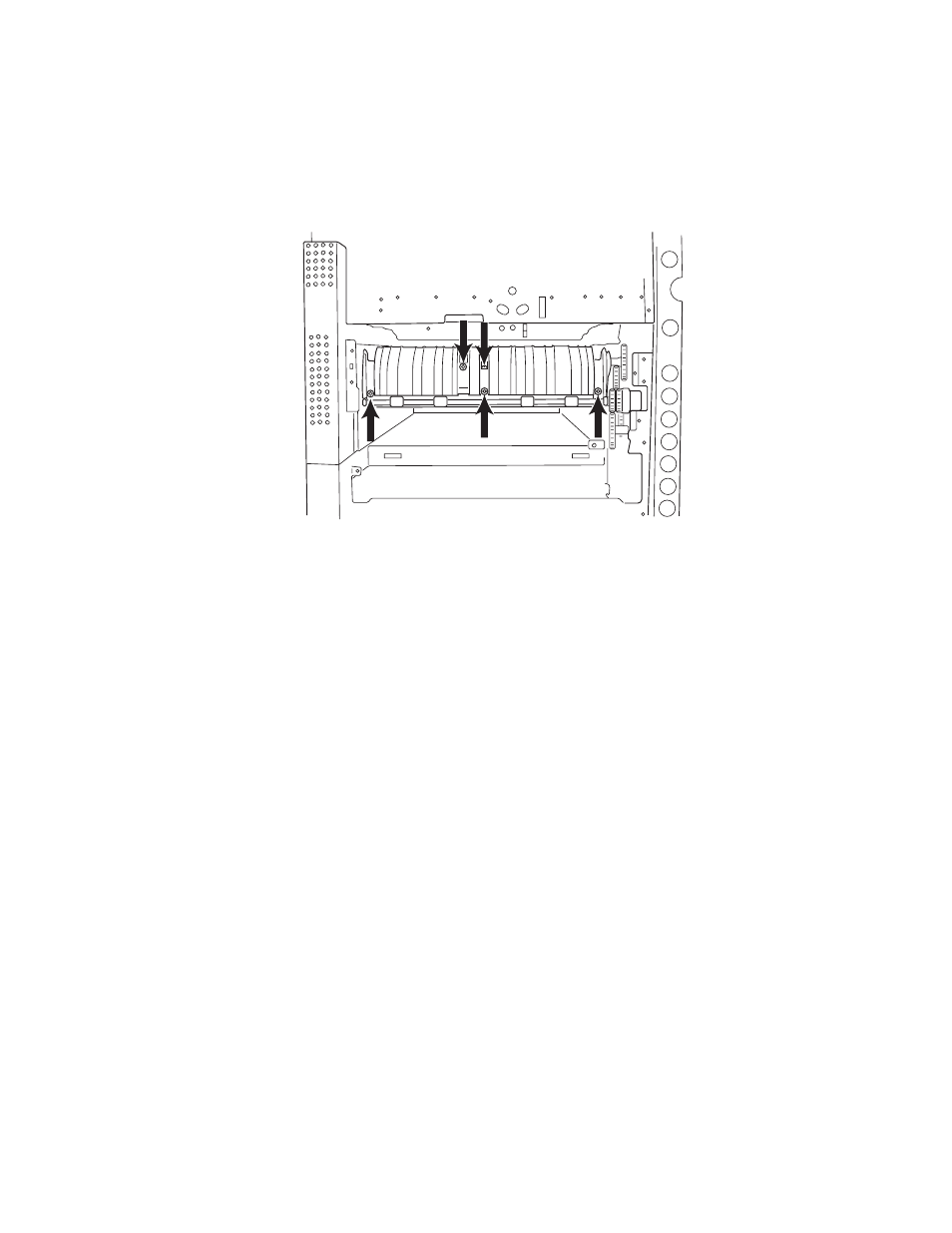

Remove the four screws from the paper carrying frame.
3.
Remove the paper carrying frame.
Note:
When installing, the clip of the paper carrying clutch should be securely set to the stop, and the shaft of
the paper-carrying clutch and spring should be securely in contact with one another.
4.
Remove the carry clutch and plastic bushing on the left side of the carrying frame.
5.
Remove the E-clip and bushing on the right side of the carrying frame.
6.
Remove the carrying roller.
