Sub-frame removal – Lexmark 5056 User Manual
Page 42

Repair information
4-41
5056-XXX
Sub-frame removal
Important
: Read the entire procedure before removal.
1.
Open the top unit, and remove the RIP cover, RIP board, RIP box, electronic box, printer controller, printer
controller bracket, and HVPS board.
2.
Remove the cable ties.
3.

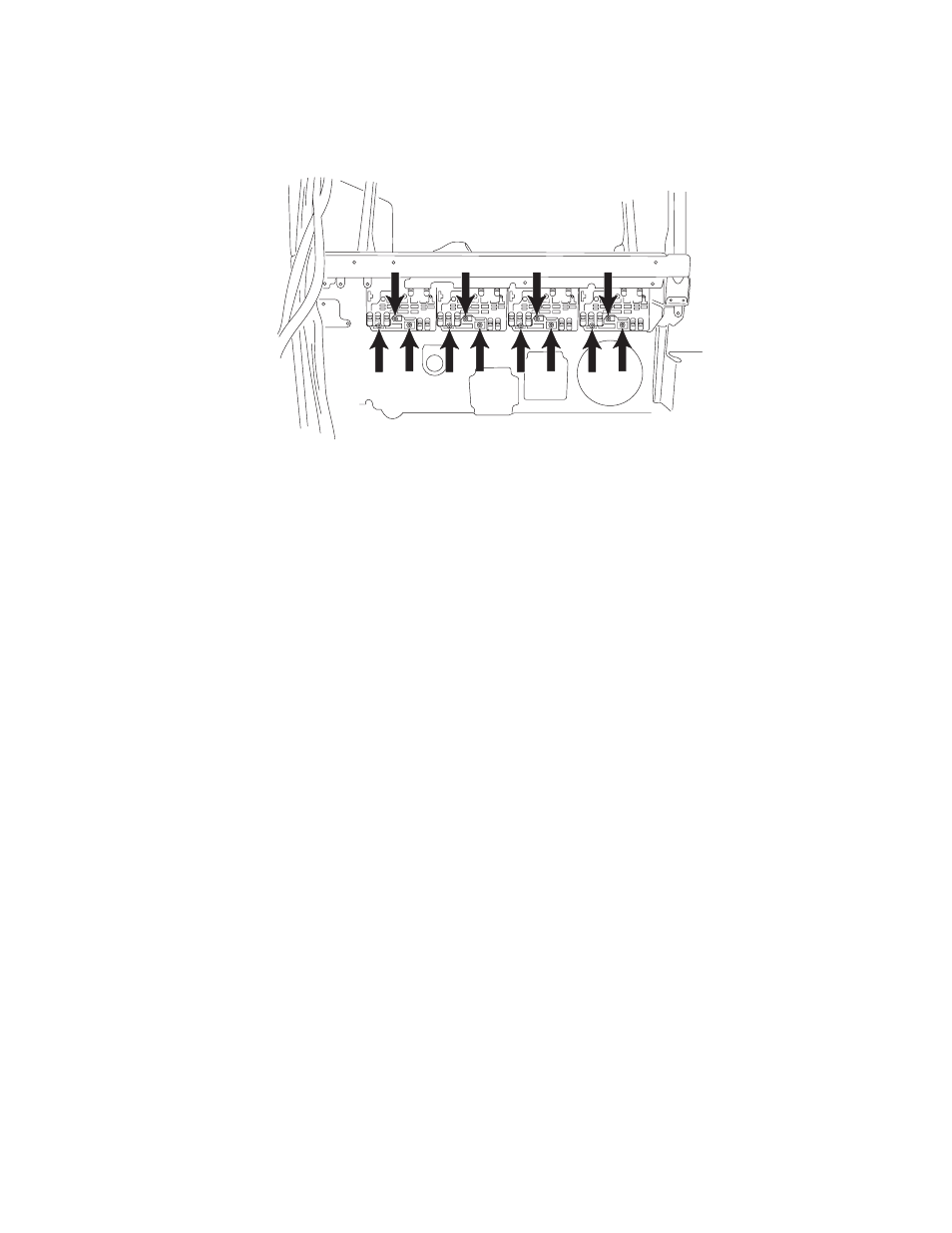

Remove the 12 screws from the sub frame.
4.
Remove sub frame.
