Lexmark 5056 - Manual (Page 71)

4-70 Service Manual
5056-XXX
Patting roller removal

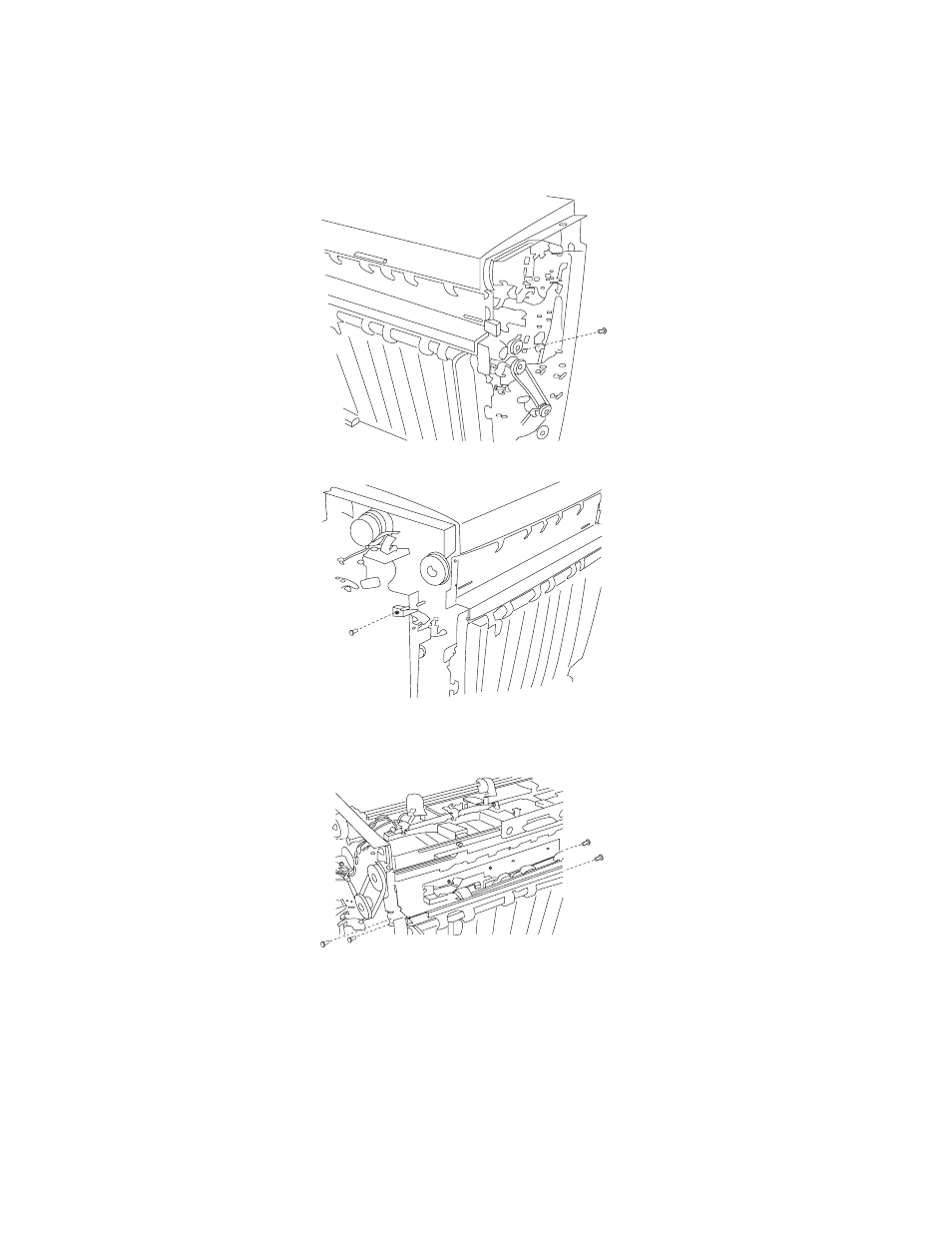

1. Remove the front and rear covers.
2. Remove the finisher control board mounting bracket.
3. Remove the two screws from the upper left panel, and remove the panel.
4. Disconnect the sensor connector.
5. Remove the sensor harness from the harness clamp.
6. Remove the four upper guide plate screws from the inverter paper exit, and remove the plate.
7. Remove the four screws from the inverter guide plate, and remove the plate.
3
