Duplex pressure roller and solenoid removal, Duplex feed roller and solenoid removal – Lexmark 5056 User Manual
Page 56

Repair information
4-55
5056-XXX

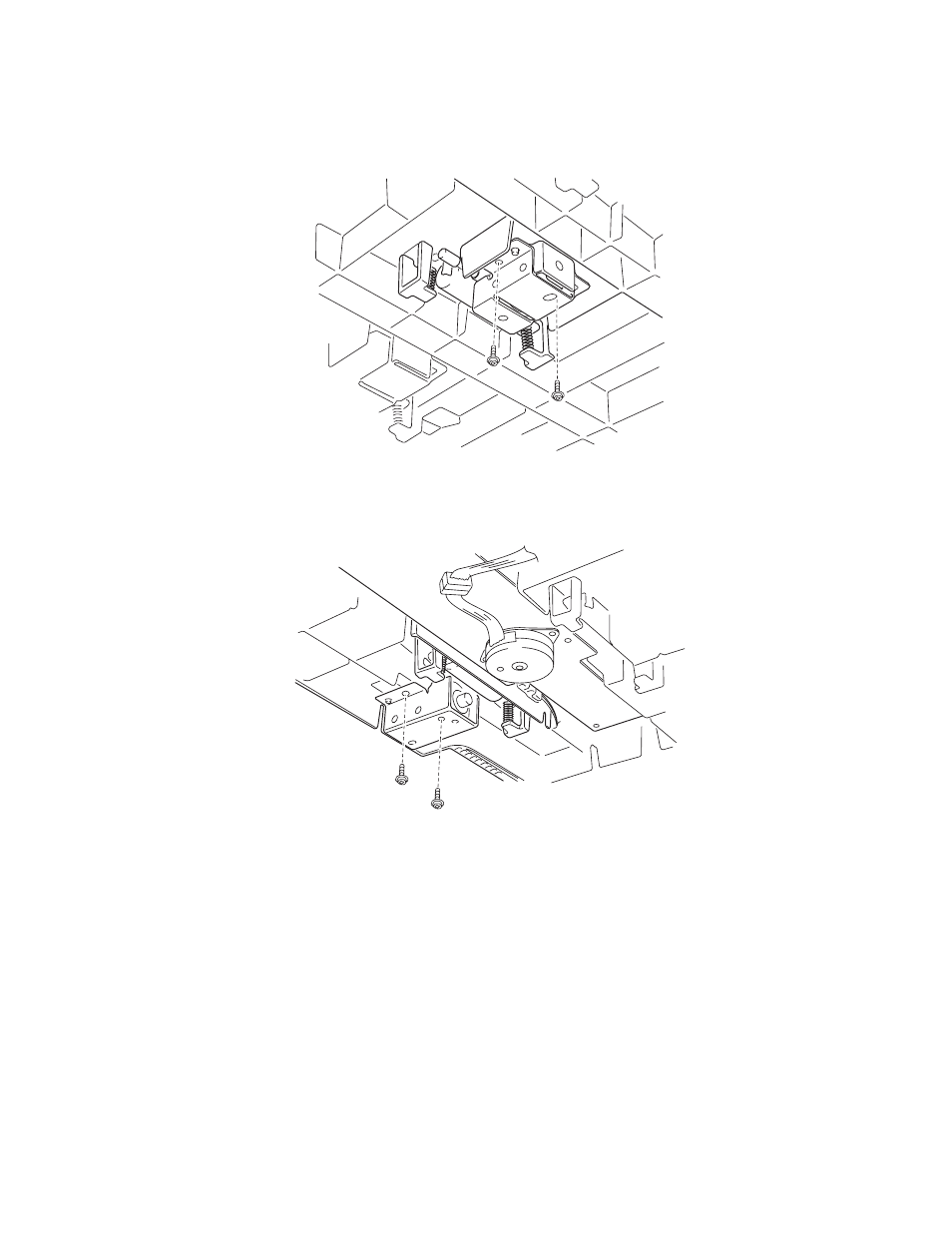

Duplex pressure roller and solenoid removal
Remove the two screws securing the pressure roller solenoid assembly.
Duplex feed roller and solenoid removal
1.
Remove the two screws securing the feed roll solenoid assembly.
2.
Remove the pressure roller and springs.
3.
Remove the feed roller and springs.
