Registration roller removal, Registration roller clutch removal – Lexmark 5056 User Manual
Page 74

Repair information
4-73
5056-XXX
Registration roller removal
1.
Remove the hole punch unit.
2.
Remove the registration roller clutch.
3.
Remove the registration roller bushing.
4.
Remove the registration roller.

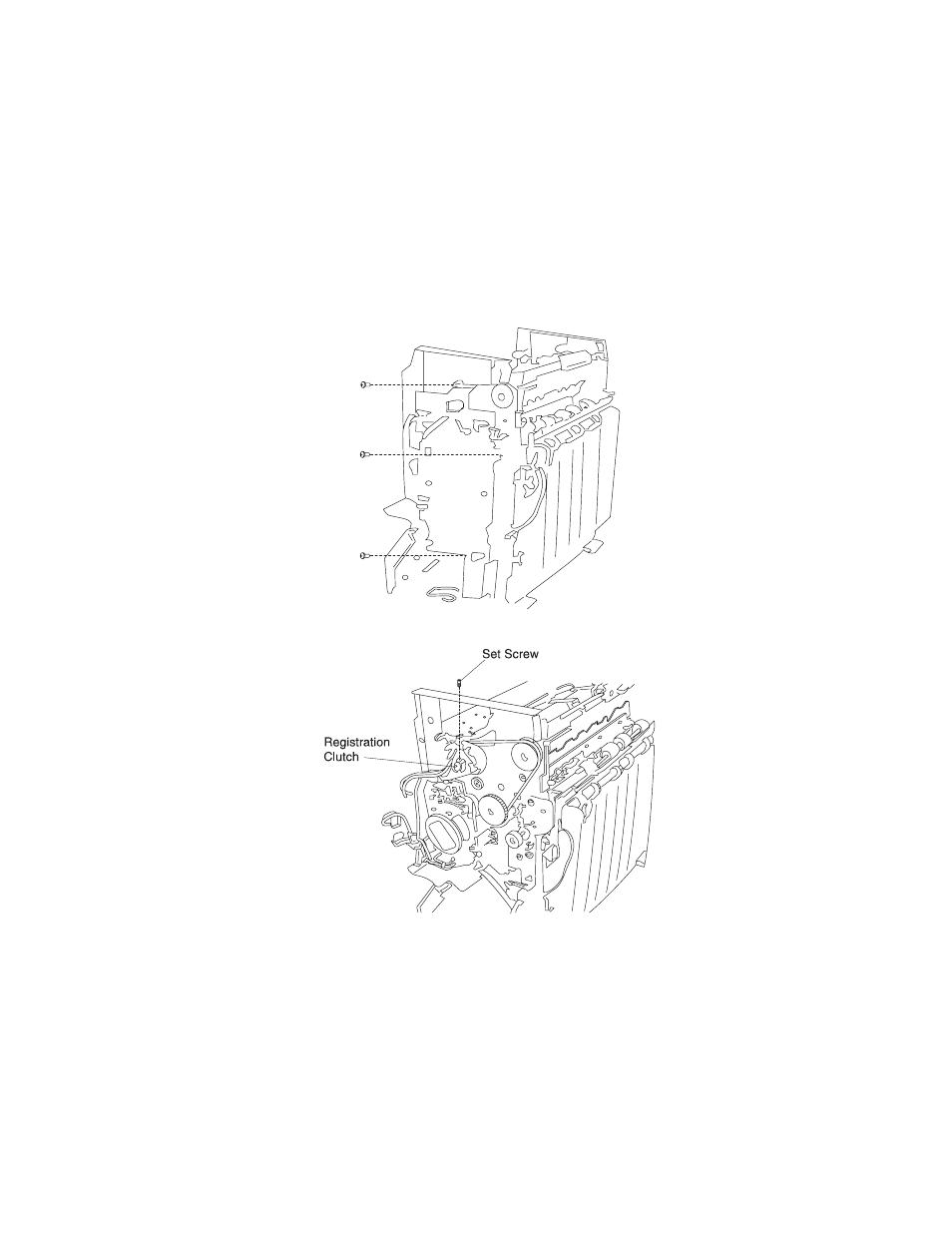

Registration roller clutch removal
1.
Remove the harness from the clamp.
2.
Remove the three control board mounting bracket screws, and remove the bracket.
3.
Remove the registration roller clutch set screw.
4.
Remove the registration roller clutch connector.
5.
Remove the registration roller clutch.
