Repair information

4-67

5056-XXX

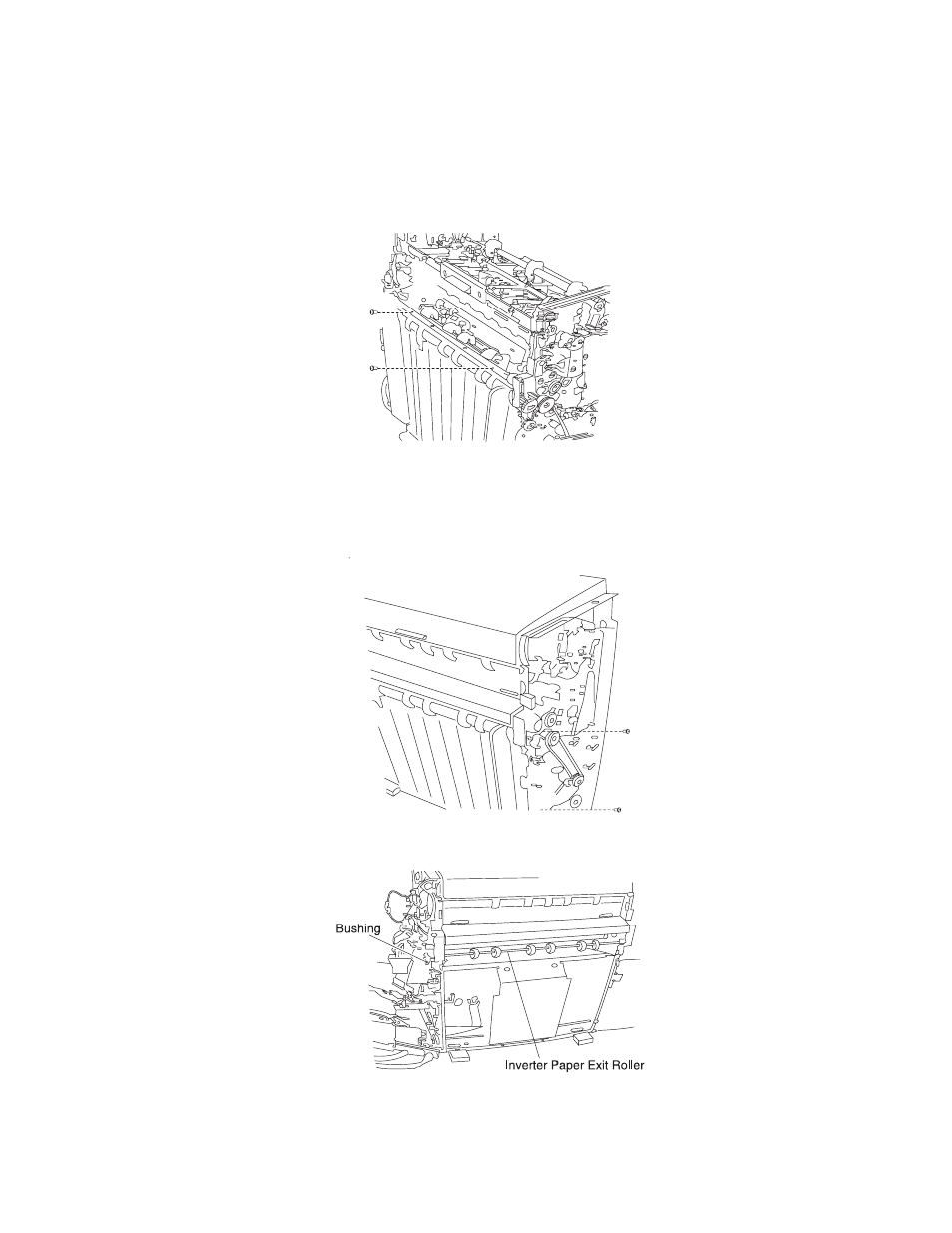

Inverter paper exit discharge brush removal

1.

Remove the external covers.

2.

Remove the finisher control board.

3.

Remove the upper left panel.

4.

Remove the two discharge brush screws, and remove the brush.

Inverter paper exit roller removal

1.

Remove the front and rear external covers.

2.

Remove the four lower left panel screws, and remove the panel.

3.

Disconnect the harness connect from the lower left panel.

4.

Remove the inverter paper exit roller bushing.
