Paper tray lift motor removal – Lexmark 5056 User Manual
Page 53

4-52
Service Manual
5056-XXX
Paper tray lift motor removal
1.
Remove the rear cover.
2.
Remove the cassette.
3.
Disconnect the cable from the paper tray lift motor.
4.

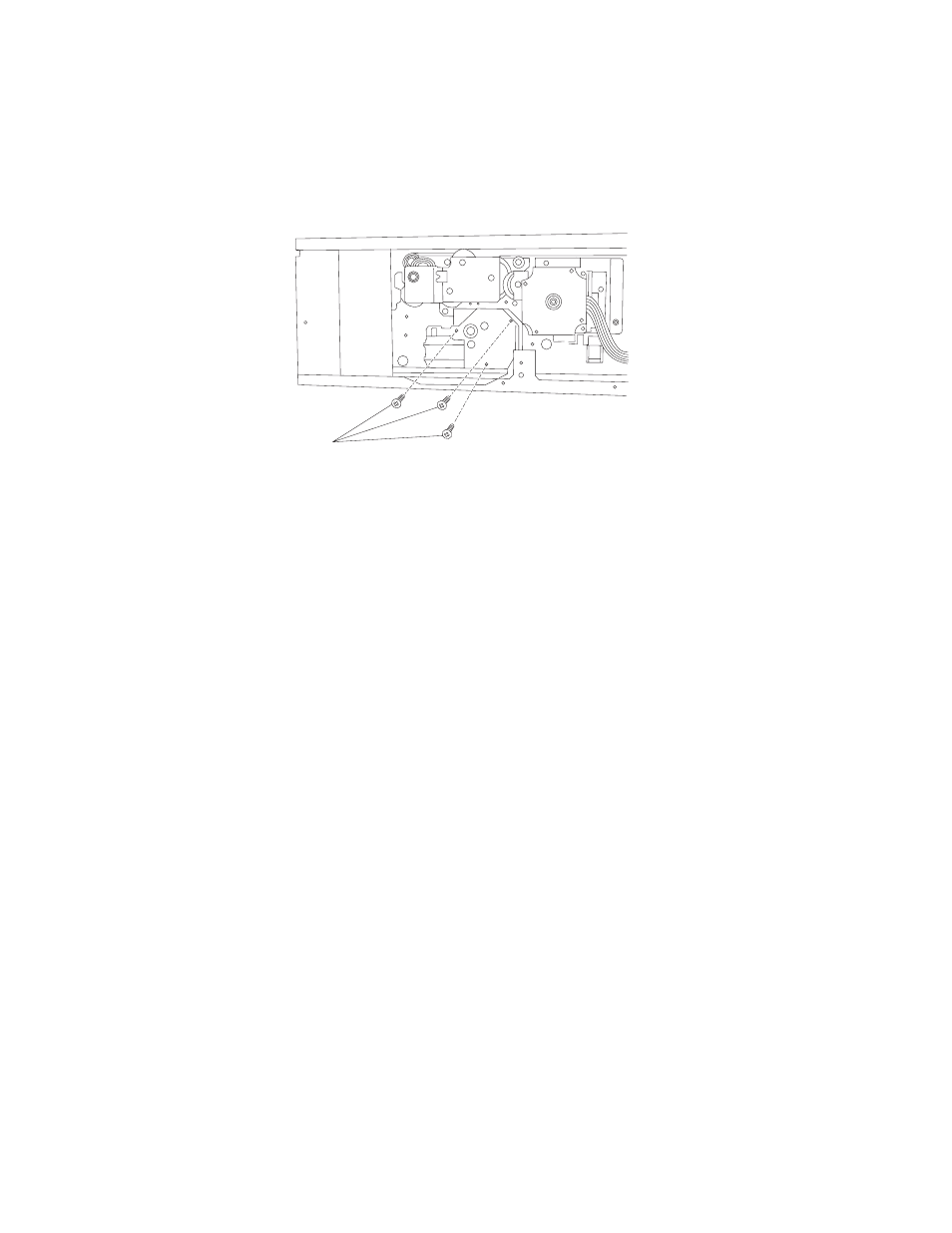

Remove three black screws from the paper tray lift motor (A).
5.
Remove the paper tray lift motor.
Expansion feeder turn guide door sensor assembly removal
1.
Remove the rear cover.
2.
Disconnect the cable from CN15 on the controller board.
3.
Open the turn guide door.
4.
Remove two black screws from the door sensor.
5.
Thread cable, avoid fraying insulation, through side frame, and remove the sensor.
A
