Hole punch removal – Lexmark 5056 User Manual
Page 67

4-66
Service Manual
5056-XXX
Hole punch removal
1.
Remove the external covers.
2.
Remove the hole punch unit cables.
3.

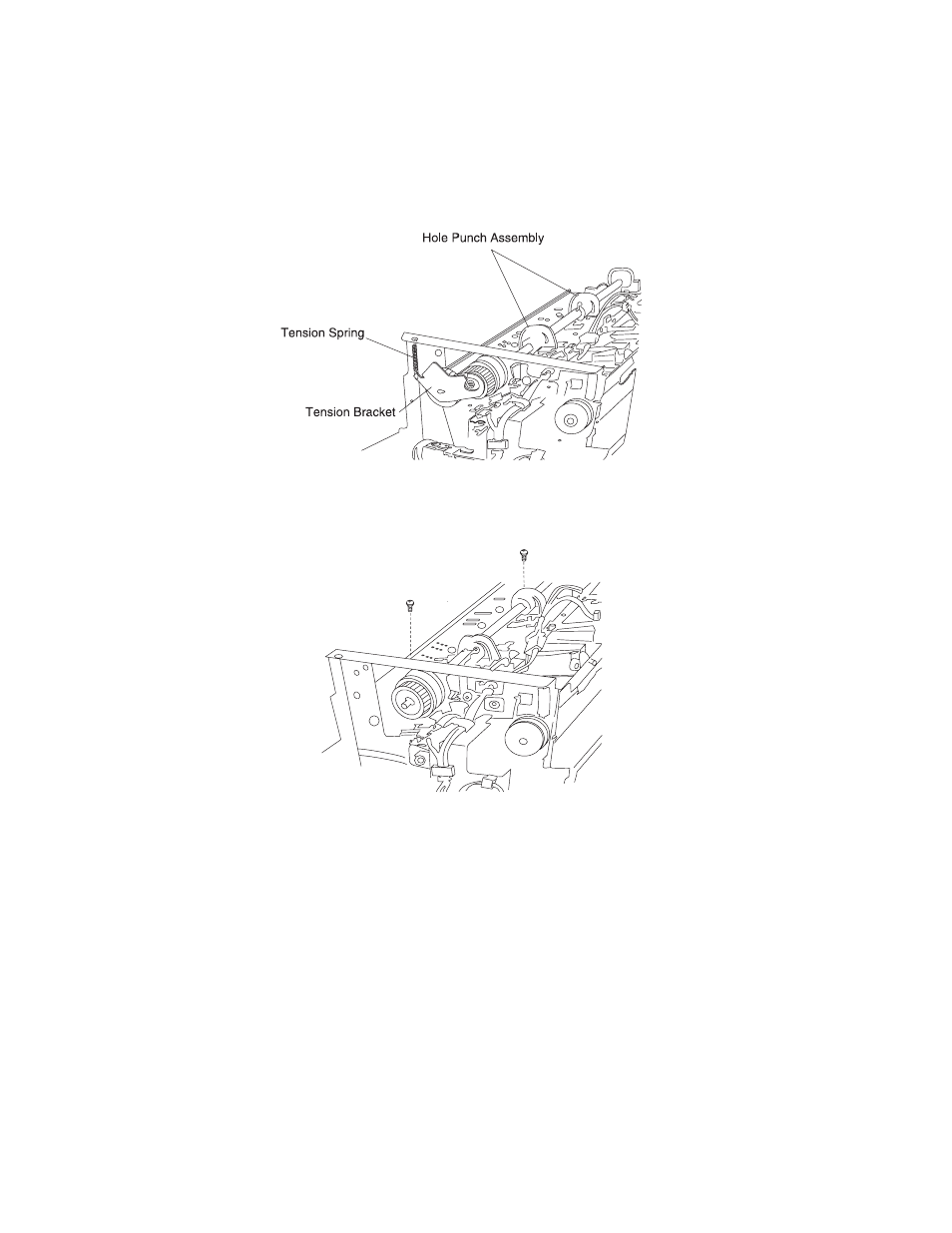

Remove the tension spring.
4.
Remove the screw and E-ring from the tension bracket, and remove the bracket.
Note:
When installing the tension bracket, use the left side screw hole for the three hole punch unit and
the right side screw hole for the four hole punch unit.
5.
Remove the two hole punch unit screws, and remove the unit.
