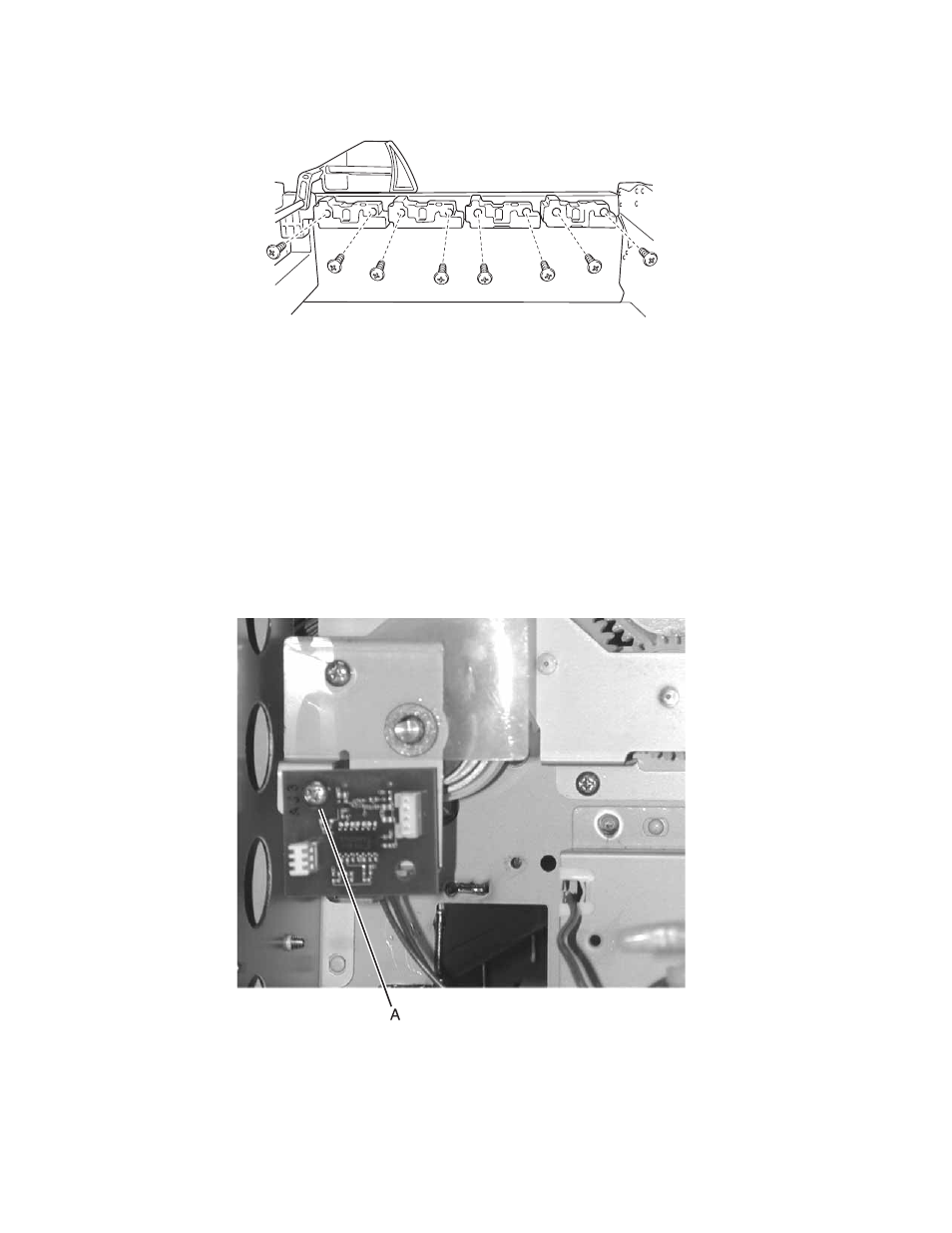

Sub frame F1, sub frame F2 removal

1.

Open the top unit.

2.

Remove the two screws from the sub frames F1 and F2.

Note:

Spread a paper or cloth over the belt to protect the belt. Set the sub frame F to the position of the

following colors, depending on the presence of the upper detection buttons.

Temperature/humidity sensor removal

1.

Remove the rear cover, printer controller board, and HVU board.

2.

Disconnect the cable from connector on the temperature humidity sensor.

3.

Remove the screw (

A

) holding the sensor to the paperfeed gear linkage.

4.

Remove the temperature/humidity sensor.

Magenta

Sub frame F1

Detection button available

Cyan

Sub frame F2

Detection button unavailable

Yellow

Sub frame F1

Detection button unavailable

Black

Sub frame F2

Detection button available
